HUB CITY 165 Series Bevel Gear Drives
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O| Style | Model | Output Dia. | Output Speed | Output Torque | Max. Input Hp | Torque | Output Shaft Direction | Style | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

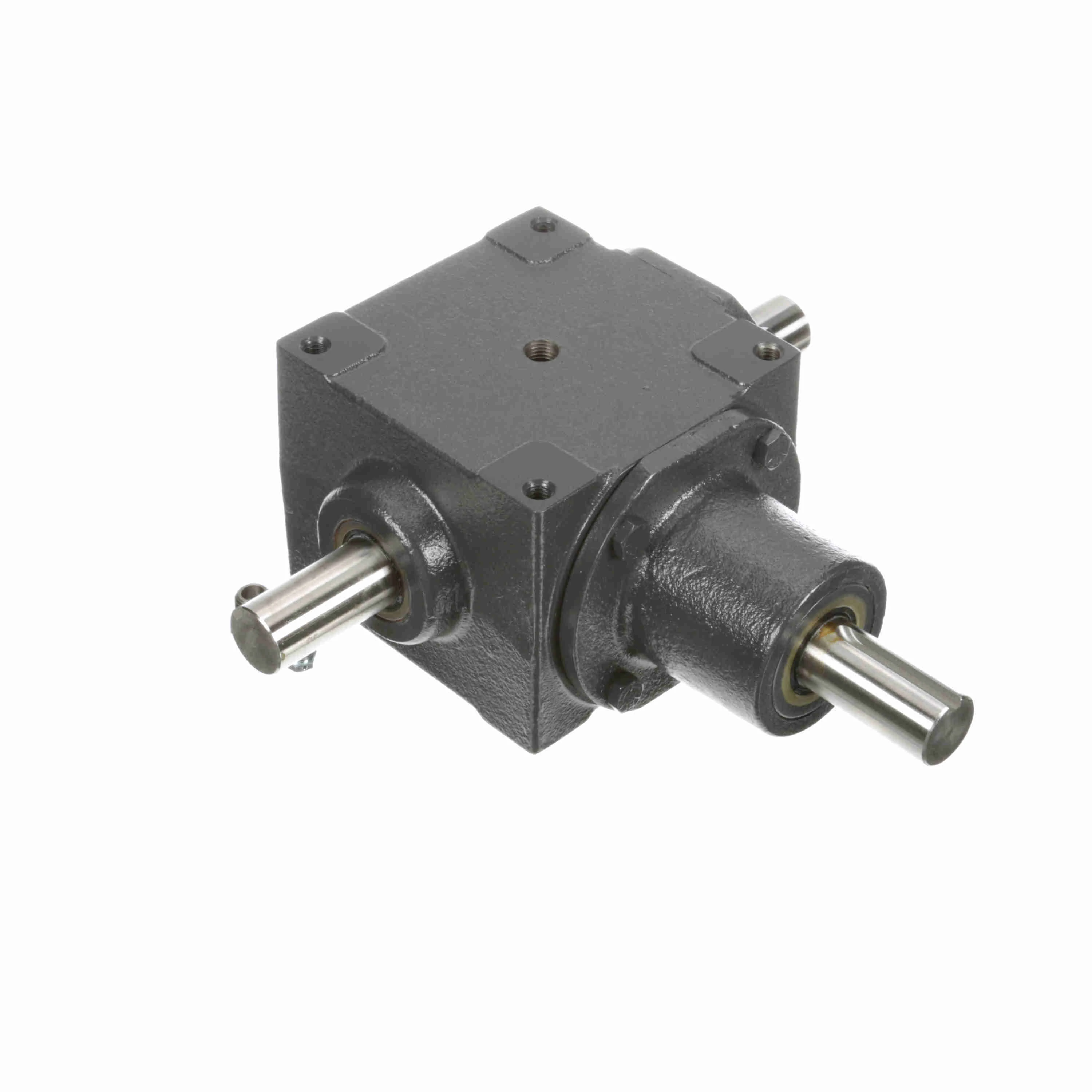

| A | 0220-00911 | 1" | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 6 1/4 hp | 442 lbs.-in. | Double | A, B | Straight Bevel | €1,113.51 | |

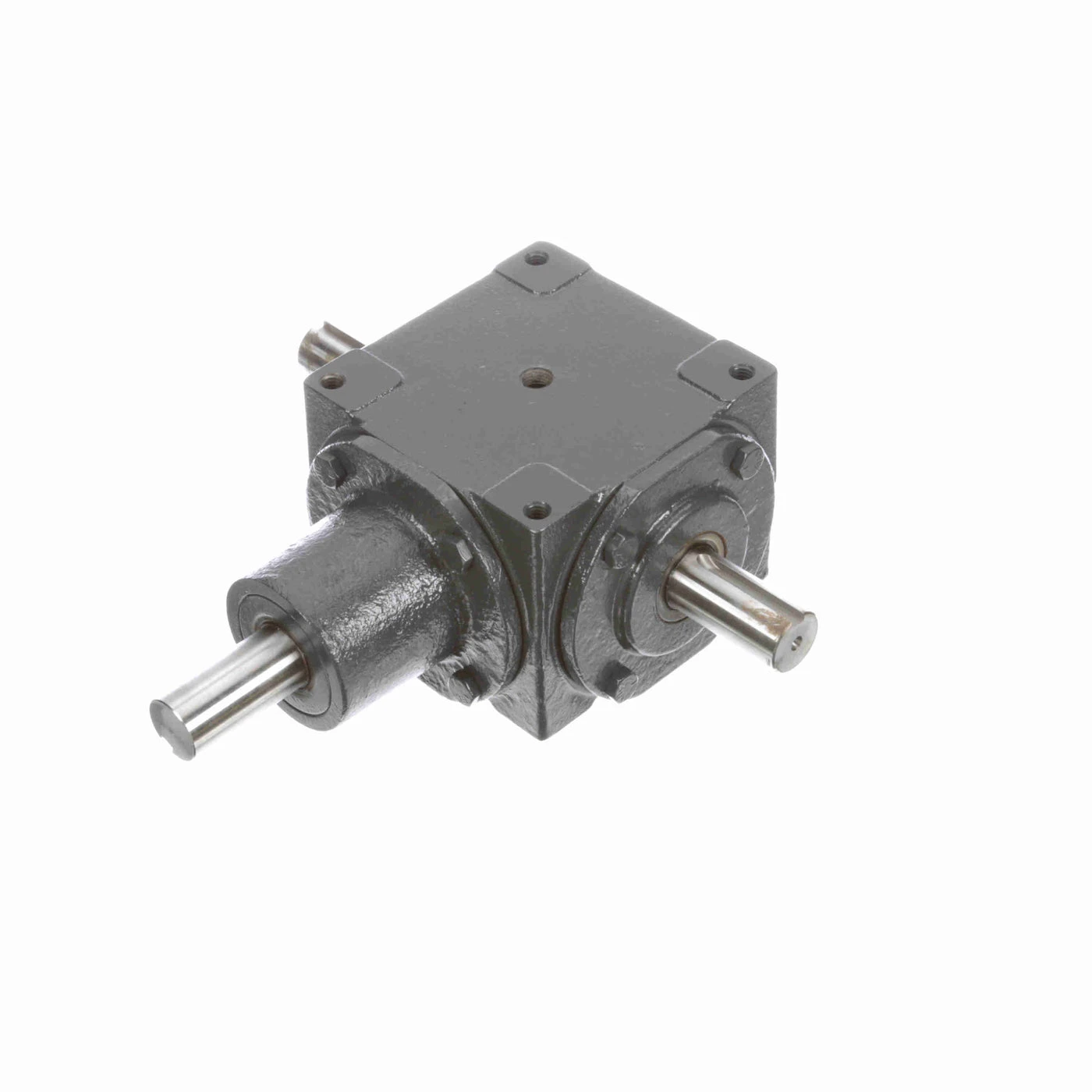

| B | 0220-00917 | 1" | 1150 RPM | 500 lbs.-in. to 1000 lbs.-in. | 17 hp | 930 lbs.-in. | Double | G | Straight Bevel | €1,696.26 | |
| C | 0220-00944 | 1" | 875 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 736 lbs.-in. | Left Or Right | D, E | Spiral Bevel | €1,637.47 | |
| D | 0220-00958 | 1" | 2625 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 593 lbs.-in. | Left Or Right | C, F | Spiral Bevel | €1,637.47 | |
| E | 0220-00932 | 1" | 1150 RPM | 500 lbs.-in. to 1000 lbs.-in. | 17 hp | 930 lbs.-in. | Double | Gg | Straight Bevel | €1,553.59 | |
| F | 0220-00901 | 1" | 1150 RPM | 500 lbs.-in. to 1000 lbs.-in. | 17 hp | 930 lbs.-in. | Double | A, B | Straight Bevel | €944.94 | |
| G | 0220-00957 | 1" | 2625 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 593 lbs.-in. | Double | A, B | Spiral Bevel | €1,637.47 | |
| G | 0220-00947 | 1" | 583.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 562 lbs.-in. | Double | A, B | Spiral Bevel | €1,637.47 | |
| H | 0220-00912 | 1" | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 6 1/4 hp | 442 lbs.-in. | Left Or Right | D, E | Straight Bevel | €1,113.51 | |
| I | 0220-00914 | 1" | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 6 1/4 hp | 442 lbs.-in. | Left Or Right | C, F | Straight Bevel | €1,113.51 | |
| J | 0220-00919 | 1" | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 9 1/5 hp | 500 lbs.-in. | Left Or Right | D, E | Straight Bevel | €1,403.03 | |
| K | 0220-00904 | 1" | 1150 RPM | 500 lbs.-in. to 1000 lbs.-in. | 17 hp | 930 lbs.-in. | Left Or Right | C, F | Straight Bevel | €944.94 | |
| G | 0220-00942 | 1" | 875 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 736 lbs.-in. | Double | A, B | Spiral Bevel | €1,559.50 | |
| D | 0220-00953 | 1" | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 911 lbs.-in. | Left Or Right | C, F | Spiral Bevel | €1,637.47 | |

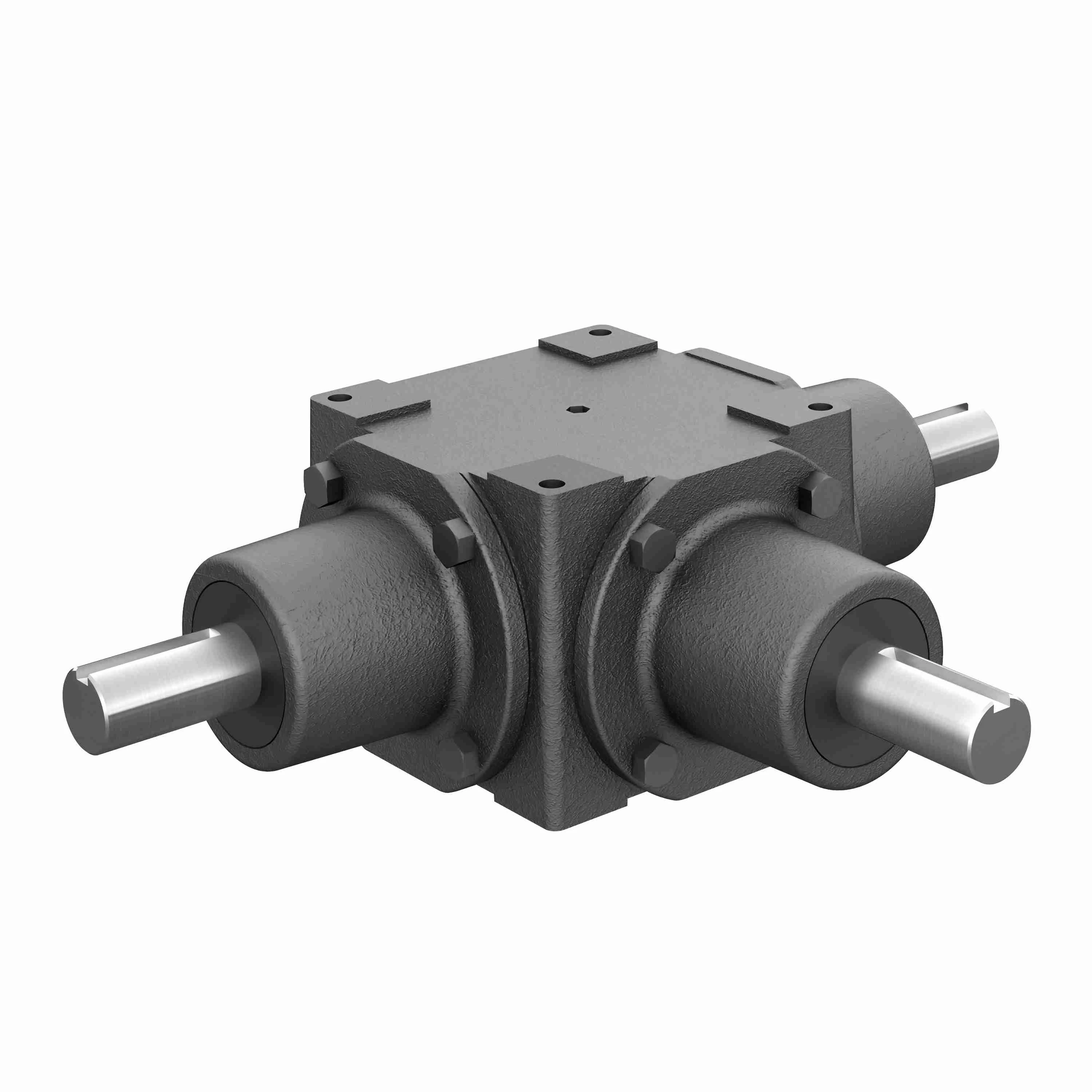

| L | 0220-00935 | 1" | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | 16 hp | 580 lbs.-in. | Double | G | Spiral Bevel | €2,066.67 | |
| M | 0220-00902 | 1" | 1150 RPM | 500 lbs.-in. to 1000 lbs.-in. | 17 hp | 930 lbs.-in. | Left Or Right | D, E | Straight Bevel | €944.94 | |
| D | 0220-00909 | 1" | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 580 lbs.-in. | Left Or Right | C, F | Spiral Bevel | €1,466.85 | |
| N | 0220-00906 | 1" | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 580 lbs.-in. | Double | A, B | Spiral Bevel | €1,164.17 | |
| J | 0220-00928 | 1" | 2300 RPM | 0 lbs.-in. to 250 lbs.-in. | 7 1/5 hp | 195 lbs.-in. | Left Or Right | D, E | Straight Bevel | €1,592.51 | |
| D | 0220-00924 | 1" | 2300 RPM | 0 lbs.-in. to 250 lbs.-in. | 7 1/5 hp | 195 lbs.-in. | Left Or Right | C, F | Straight Bevel | €1,592.51 | |
| O | 0220-00939 | 1" | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 580 lbs.-in. | Double | Gg | Spiral Bevel | €2,384.83 | |
| J | 0220-00907 | 1" | 1750 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 580 lbs.-in. | Left Or Right | D, E | Spiral Bevel | €1,164.17 | |
| J | 0220-00949 | 1" | 583.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 562 lbs.-in. | Left Or Right | D, E | Spiral Bevel | €1,637.47 | |
| D | 0220-00948 | 1" | 583.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 562 lbs.-in. | Left Or Right | C, F | Spiral Bevel | €1,688.28 | |
| G | 0220-00918 | 1" | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 9 1/5 hp | 500 lbs.-in. | Double | A, B | Straight Bevel | €1,403.03 | |
| O | 0220-00931 | 1" | 875 RPM | 250 lbs.-in. to 500 lbs.-in. | 6 1/4 hp | 442 lbs.-in. | Double | Gg | Straight Bevel | €2,361.51 | |
| D | 0220-00943 | 1" | 875 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 736 lbs.-in. | Left Or Right | C, F | Spiral Bevel | €2,773.42 | |
| G | 0220-00962 | 5/8" | 2300 RPM | 250 lbs.-in. to 500 lbs.-in. | - | 368 lbs.-in. | Double | A, B | Spiral Bevel | €1,637.47 | |
| G | 0220-00916 | 5/8" | 2300 RPM | 0 lbs.-in. to 250 lbs.-in. | 7 1/5 hp | 195 lbs.-in. | Double | A, B | Straight Bevel | €1,592.51 |
