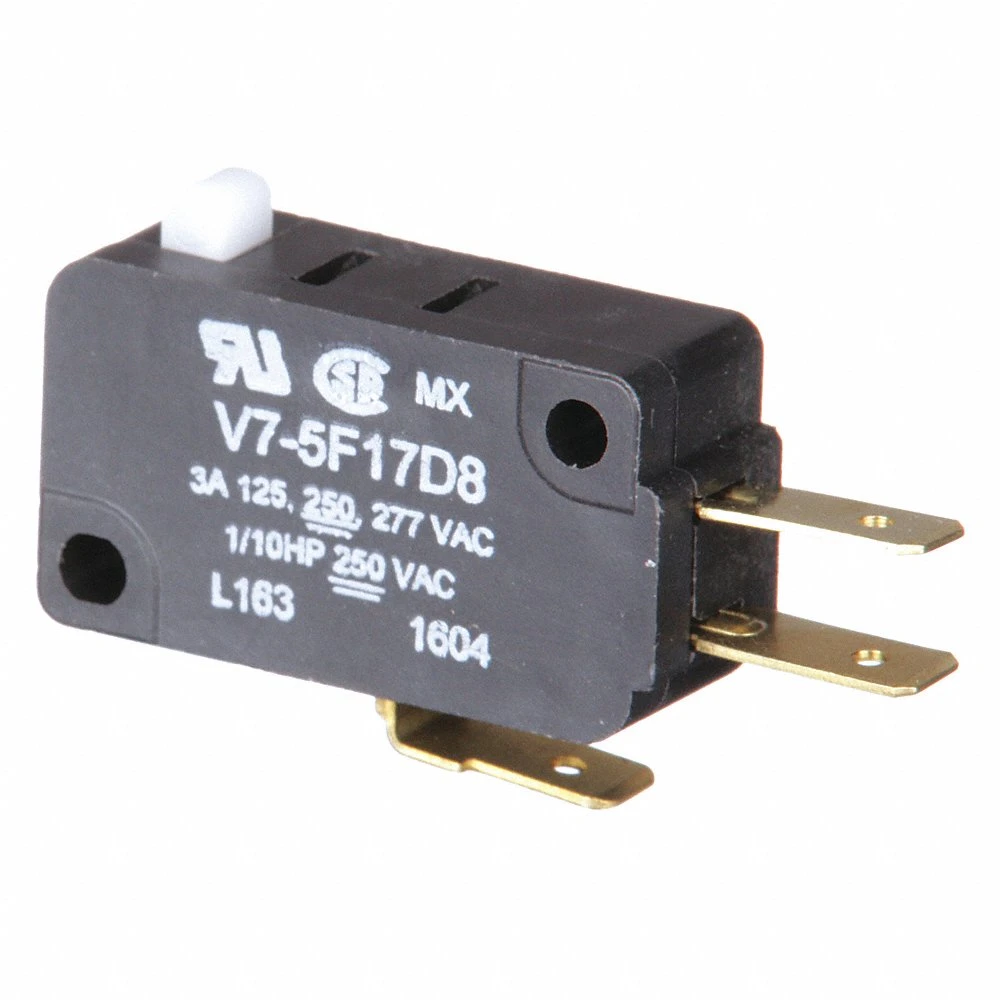

HONEYWELL V7-5F17D8 Premium Mini Snap Switch, Pin Plunger Actuator, 250 VAC
Item: AB7TQMModel: V7-5F17D8Cross Ref: 24A295
7 In Stock
Ships within 2 days via
5.00% off
€10.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Premium Miniature Snap Switch |
| Ac Contact Rating | 3A @ 125V |
| Actuation Type | Pin Plunger |
| Actuator Length | Not Applicable |
| Actuator Style | Plunger |
| Actuator Type | Pin Plunger |
| Actuator Type-snap Action Switch | Pin, Plunger |
| Amps | 3A |
| Body Depth | 0.4" |
| Body Height | 0.63" |
| Body Material | Polyester |
| Body Width | 1.14" |
| Center Mounting Hole Distance | 0.88" |
| Depth-snap Action Switch | 2/5" |
| Differential Travel | 0.002" to 0.01" |
| Display Qty | 1 |
| Electrical Connection | Quick Connect |
| Height | 0.63" |
| Height-snap Action Switch | 0.63" |
| Length | 1.14" |
| Lever Actuator Length-snap Action Switch | Not Applicable |
| Max. Differential Travel | 0.01" |
| Max. Operating Force | 0.53 ozf |
| Max. Operating Temp. | 365°F |
| Max. Pretravel | 0.047" |
| Min. Differential Travel | 0.002" |
| Min. Operating Temp. | -40°F |
| Mounting Dimensions | 0.41" x 0.87" |
| Mounting Hole Dia. | 1/8" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 0.53 oz. |
| Operating Temp. | -40°F to +180°F |
| Over Travel | 0.05" |
| Overall Depth | 0.4" |
| Overall Height | 0.63" |
| Overall Width | 1.14" |
| Pre-travel | 0.047" |
| Series | V7 Series |
| Voltage | 250V AC |
| Watertight | No |
Shipping Info:
| Ship height (cm) | 3.81 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 6.6 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Details:
- MICRO SWITCH V7 Series miniature switch featuring quick-connect terminals and a pin-plunger actuator ideal for use in vending machines, timing devices, office equipment, HVAC & test instruments and valves
- Designed in accordance with UL and CSA standards and features a PCT polyester thermoplastic housing and silver-plated contacts
- Operates on temperatures ranging between -40 and 180 degrees F
Product Variants
| Product | Model | Amps | Actuator Length | Voltage | Over Travel | Differential Travel | Max. Pretravel | Operating Force | Ac Contact Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
V7-1B17D8 | 3A | Not Applicable | 250V AC | 0.115" | 0.002" to 0.01" | 0.047" | 5.3 oz. | 11A @ 250V | €6.05 | |
 |
V7-1B37D8 | 3A | 1.14" | 277V AC | 1.27 mm | 0.01" | 1.19 mm | 1.47N | - | €4.81 | |
 |
V7-1C17D8 | 15A | Not Applicable | 250V AC | 0.05" | 0.002" to 0.01" | 0.047" | 5.3 oz. | 15A @ 125V | €5.93 | |
 |
V7-1C27E9 | 15A | 1.14" | 277V AC | 0.05" | 0.01" | 1.19 mm | 1.47N | 15A @ 250V | €7.56 | |
 |
V7-1S17D8 | 0.1A | 1.14" | 125V AC | 0.05" | 0.002" to 0.01" | 0.047" | 5 oz. | 0.1A @ 125V | €9.77 | |
 |
V7-1V19E9 | 21A | Not Applicable | 277V AC | 0.05" | 0.002" to 0.01" | 0.047" | 7.9 oz. | 21A @ 277V | €12.90 | |
 |
V7-1V29E9 | 21A | 1.14" | 277V AC | 0.05" | 0.01" | 1.19 mm | 2.22N | 21A @ 277V | €15.54 |
