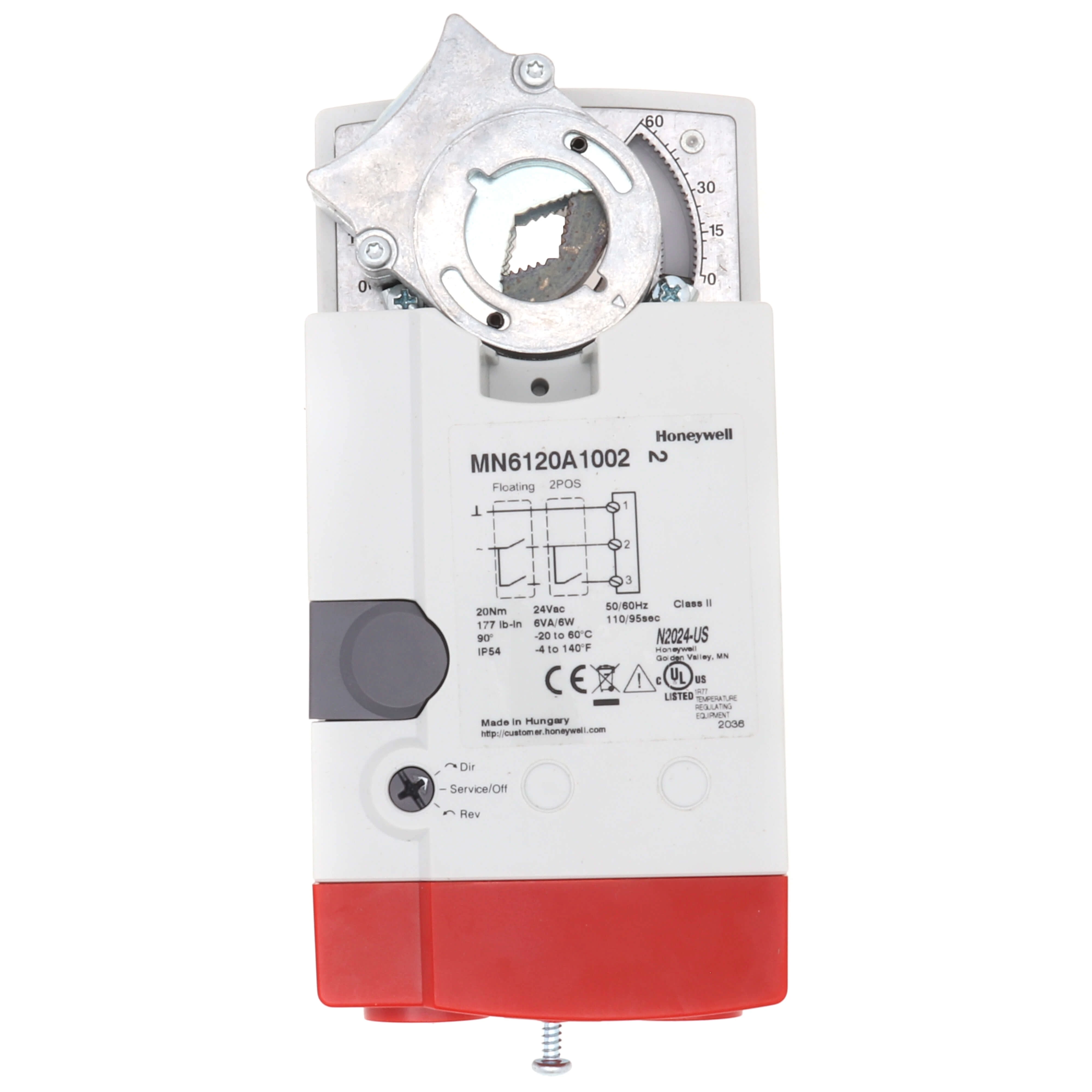

HONEYWELL MN6120A1002 Electric Actuator, Spdt Switch Type, 24VAC, -5 To 140 Deg. F, 175 In-Lbs. Torque
Item: CH9AJVModel: MN6120A1002Cross Ref: 278Y10
7 In Stock
Ships within 2 days via
10.00% off
€603.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuator |
| Ambient Temp. Range | -5°F to +140°F |
| Application | Damper and Valve |
| Contact Form | SPDT |
| Control Signal | Floating Point |
| Depth | 3 1/4" |
| Electrical Connection Type | Screw Terminals |
| For Use With | Air Handlers, Air Units, Louvers, Ventilation Flaps |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 8 3/4" |
| Includes | Mounting Bracket, Self-Centering Shaft Adapter |
| Input Voltage | 24V AC |
| Ip Rating | IP54 |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -5°F |
| Mounting Type | Direct Mount |
| Nema Rating | 2 |
| Number Of Auxiliary Switches | 0 |
| Output Signal | Not Applicable |
| Overall Depth | 3 1/4" |
| Overall Height | 8 3/4" |
| Overall Width | 3 1/2" |
| Power Consumption | 6 VA |
| Product Type | Actuator |
| Rated Torque | 175 lbs.-in. |
| Return Action | Non-Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | Self Centering Clamping |
| Signal Type | Floating Point |
| Signal Type | Floating, On/Off |
| Spring Return | No |
| Stroke Deg. | 95 +/-3 |
| Stroke Degree | 95° |
| System Application | Air Handlers, Air Units, Dampers, Louvers, Ventilation Flaps |
| Time To Close | 95 sec. |
| Torque | 175 lbs.-in. |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.89 |
| Country of Origin | DE |
