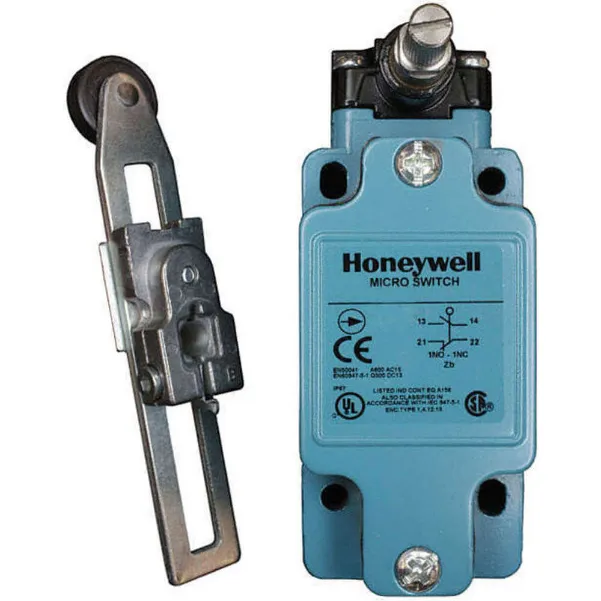

HONEYWELL GLAA01A2A Global Limit Switch Side Actuator Spdt
Item: AA4LYTModel: GLAA01A2ACross Ref: 12U225
7 In Stock
Ships within 2 days via
5.00% off
€240.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Global Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator Length | 1.5" to 3.6" |
| Actuator Location | Side |
| Actuator Style | Roller Lever Plunger |
| Actuator Style (limit Switch) | Roller Lever, Rotary |
| Actuator Type | Roller Lever |
| Amps | 10A |
| Arm Material | Steel |
| Basic Actuator Style | Rotary |
| Basic Actuator Style (limit Switch) | Rotary |
| Body Configuration | Non Plug In |
| Body Construction | Die Cast Zinc |
| Body Depth | 1.65" |
| Body Height | 3.23" |
| Body Height-limit Switch | 3.23" |
| Body Material | Metal |
| Body Style | Standard |
| Body Style (limit Switch) | Standard |
| Body Width | 1.65" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator (limit Switch) | No |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10A @ 250V |
| Depth | 1.65" |
| Differential Travel | 12° |
| Differential Travel Length | 12° |
| Directional Movement | CCW/CW |
| Electrical Connection | Screw Terminal |
| Head Action | Spring Return, Standard |
| Height | 3.23" |
| Ip Rating | IP67 |
| Limit Switch Style | General Purpose Limit Switch |
| Max. Operating Temp. | 185°F |
| Max. Operating Torque | 2.9 lbs.-in. |
| Min. Operating Temp. | -13°F |
| Mounting (limit Switch) | Surface |
| Mounting Hole Dia. | 0.21" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Spacing-limit Switch | 2.36" x 1.18" |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | CW/CCW |
| Nema Enclosure Rating | NEMA 1, NEMA 4, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 4, NEMA 12, NEMA 13 |
| No. Of Mounting Holes | 4 |
| Operating Position | 26° |
| Operating Temp. | -13°F to +185°F |
| Operator Configuration | Adjustable |
| Over Travel | 59° |
| Over Travel Length | 59° |
| Pre-travel | 26° |
| Pre-travel Length | 26° |
| Roller Dia. | 3/4" |
| Roller Material | Nylon |
| Roller Width | 1/4" |
| Series | GLA Series |
| Stem Thread (limit Switch) | No Stem |
| Width | 1.65" |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.1 |
| HS code | 8536509055 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator Style | Roller Dia. | Movement | Body Material | Body Style | Basic Actuator Style (limit Switch) | Actuator Style (limit Switch) | Arm Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

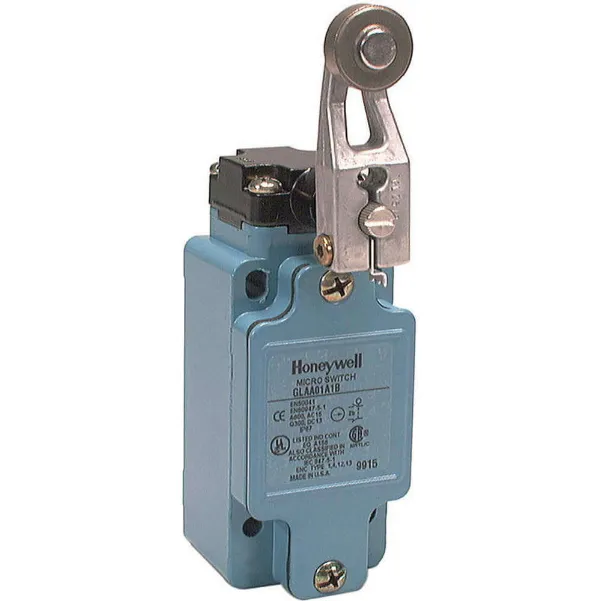

GLAA01A1A | Roller Lever Plunger | 3/4" | CCW/CW | Metal | Standard | Rotary | Roller Lever, Rotary | Steel | €287.79 | |
|
GLAA01A1B | Roller Lever Plunger | 3/4" | CCW/CW | Metal | Standard | Rotary | Roller Lever, Rotary | Steel | €267.69 | |
|
GLAA01A2B | Roller Lever Plunger | 3/4" | CCW/CW | Metal | Standard | Rotary | Roller Lever, Rotary | Steel | €272.12 | |
 |

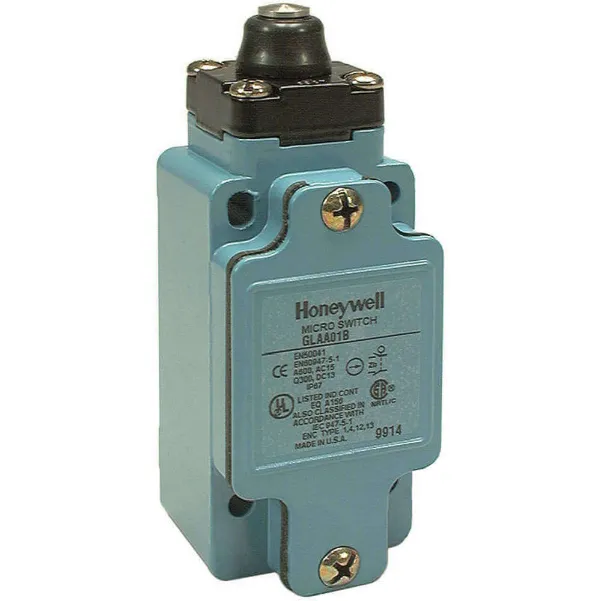

GLAA01B | Plunger | - | Linear | Metal | Standard | Plunger | Plunger | - | €227.21 | |
 |
GLAA01C | Roller Plunger | 12/25" | Linear | Metal | Standard | Plunger | Plunger, Roller | - | €339.50 | |
 |

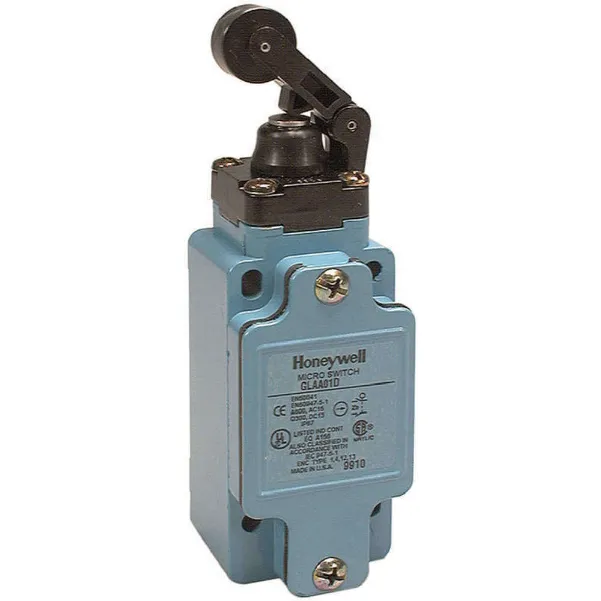

GLAA01D | Roller Lever Plunger | 3/4" | Linear | Metal | Standard | Plunger | Plunger, Roller Lever | Plastic | €210.22 | |
 |
GLAA01A4J | Rotary Lever Arm | - | CW/CCW | Die Cast Zinc | Standard | Rotary | Adjustable Rod, Rotary | Metal | €321.95 |
