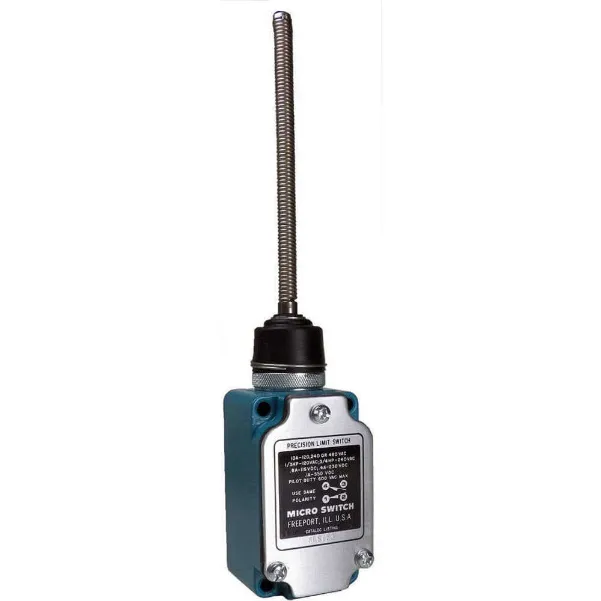

HONEYWELL 8LS152 Enclosed Limit Switch Top Actuator Spdt
Item: AA3RFMModel: 8LS152Cross Ref: 11T744
7 In Stock
Ships within 2 days via
10.00% off
€625.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Limit Switch |
| Ac Contact Rating | 10A @ 120V, 10A @ 240V, 10A @ 480V |
| Actuator Length | 5.55" |
| Actuator Length - Limit Switch | 5 1/2" |
| Actuator Location | Top |
| Actuator Style | Wobble Stick |
| Actuator Style - Limit Switch | Wobble Stick |
| Actuator Type | Coil Spring |
| Amps | 10A |
| Arm Material | Stainless Steel |
| Basic Actuator Style | Wobble Stick |
| Basic Actuator Style (limit Switch) | Wobble Stick |
| Body Configuration | Non Plug In |
| Body Construction | Die Cast Zinc |
| Body Depth | 1.13" |
| Body Height | 2.7" |
| Body Height - Limit Switch | 2.7" |
| Body Material | Metal |
| Body Style | Miniature |
| Body Style - Limit Switch | Miniature |
| Body Width | 1.57" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form | 1NO/1NC |
| Current Rating - Nominal | 10A |
| Dc Contact Rating | 0.1A @ 550V, 0.4A @ 230V, 0.8A @ 115V |
| Depth | 1.13" |
| Directional Movement | Omnidirectional |
| Electrical Connection | Screw Terminals |
| Head Action | Spring Return, Standard |
| Height | 4.05" |
| Ip Rating | IP67 |
| Limit Switch Style | General Purpose Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole Diameter | 0.19" |
| Mounting Hole Horizontal Center To Center Distance | 60 mm |
| Mounting Hole Spacing - Limit Switch | 2.31" x 1.19" |
| Mounting Hole Vertical Center To Center Distance | 30 mm |
| Mounting Style | Surface |
| Movement | Wobble |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 13 |
| Number Of Mounting Holes | 4 |
| Operating Force | 5 oz. |
| Operating Force - Maximum | 5 ozf |
| Operating Temp. Range | -20°F to +160°F |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | -20°F |
| Operator Configuration | Steel |
| Overall Depth | 1.6" |
| Overall Height | 8.05" |
| Overall Width | 1.57" |
| Overtravel | 1.21" |
| Pretravel | 1.13" |
| Series | LS Series |
| Stem Thread - Limit Switch | No Stem |
| Width | 1.19" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 23.11 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 4.83 |
| HS code | 8536509055 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator Style | Ip Rating | Roller Dia. | Boot Sealed Actuator | Body Material | Body Width | Operating Force | Body Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1LS1 | Roller Lever Plunger | IP67 | 3/4" | No Boot Included | - | 1.57" | 3 lbs. | - | €445.06 | |
 |
1LS10 | Rod | IP67 | - | No | Metal | 1.57" | 5 oz. | Miniature | €588.86 | |
|
1LS19 | Roller Lever Plunger | IP67 | 3/4" | No Boot Included | Metal | 1.57" | 3 lbs. | - | €466.91 | |
 |
1LS56 | No Lever, Rotary Head | IP67 | - | No Boot Included | Metal | 1.57" | 15 oz.-in. | X | €484.00 | |
|
1LS9 | No Lever, Rotary Head | IP67 | - | No Boot Included | Metal | 1.57" | - | X | €420.35 | |
 |
5LS1 | Plunger | IP67 | - | No | Metal | 1.57" | 7 lbs. | Miniature | €657.36 | |
 |
6LS1 | Rotary Lever Arm | No IP Rating | 3/4" | No | Die Cast Zinc | 1.19" | 2 lbs. | Miniature | €619.58 |
