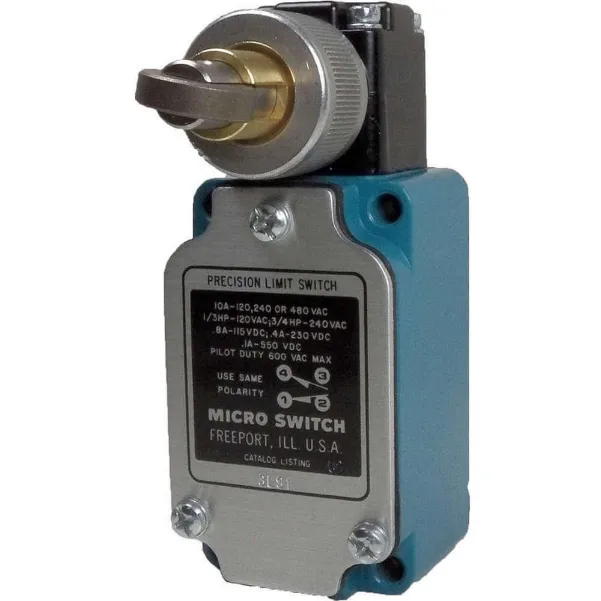

HONEYWELL 3LS1 Enclosed Limit Switch Side Actuator Spdt
Item: AA3RFAModel: 3LS1Cross Ref: 11T731
7 In Stock
Ships within 2 days via
10.00% off
€565.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Limit Switch |
| Actuator Length | 2.13" |
| Actuator Length - Limit Switch | 2.13" |
| Actuator Location | Side |
| Actuator Style | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Amps | 10A |
| Basic Actuator Style | Plunger |
| Basic Actuator Style (limit Switch) | Plunger |
| Body Height - Limit Switch | 2.7" |
| Body Material | Die Cast Zinc |
| Body Style | Miniature |
| Body Style - Limit Switch | Miniature |
| Body Width | 1.19" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Dc Contact Rating | Not Rated |
| Depth | 1.13" |
| Differential Travel Length | 1/25" |
| Electrical Connection | Screw Terminals |
| Height | 4.05" |
| Ip Rating | No IP Rating |
| Limit Switch Style | General Purpose Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole Spacing - Limit Switch | 2.31" x 1.19" |
| Movement | Linear |
| Nema Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 13 |
| Operating Force | 9 lbs. |
| Operating Temp. Range | -20°F to +160°F |
| Over Travel Length | 0.219" |
| Pre-travel Length | 0.109" |
| Roller Dia. | 0.66" |
| Roller Material | Steel |
| Roller Width | 0.19" |
| Stem Thread - Limit Switch | No Stem |
| Width | 1.19" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 7.62 |
| HS code | 8536509055 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator Style | Ip Rating | Roller Dia. | Boot Sealed Actuator | Body Material | Body Width | Operating Force | Body Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1LS1 | Roller Lever Plunger | IP67 | 3/4" | No Boot Included | - | 1.57" | 3 lbs. | - | €445.06 | |
 |
1LS10 | Rod | IP67 | - | No | Metal | 1.57" | 5 oz. | Miniature | €588.86 | |
|
1LS19 | Roller Lever Plunger | IP67 | 3/4" | No Boot Included | Metal | 1.57" | 3 lbs. | - | €466.91 | |
 |
1LS56 | No Lever, Rotary Head | IP67 | - | No Boot Included | Metal | 1.57" | 15 oz.-in. | X | €484.00 | |
|
1LS9 | No Lever, Rotary Head | IP67 | - | No Boot Included | Metal | 1.57" | - | X | €420.35 | |
 |
5LS1 | Plunger | IP67 | - | No | Metal | 1.57" | 7 lbs. | Miniature | €657.36 | |
 |
6LS1 | Rotary Lever Arm | No IP Rating | 3/4" | No | Die Cast Zinc | 1.19" | 2 lbs. | Miniature | €619.58 |
