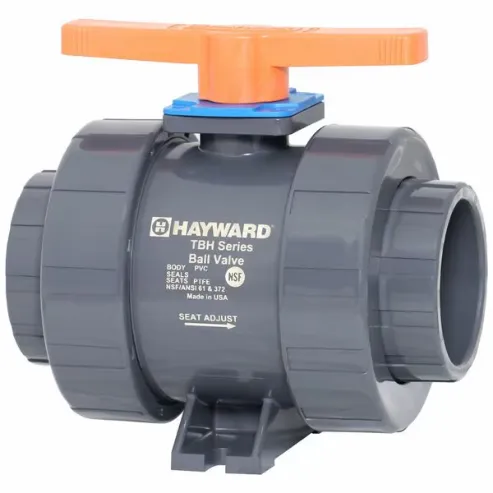

HAYWARD TBH1400A0SE0000 Ball Valve, 4 Inch Pipe, 4 Inch Tube, 235 PSI
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€708.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | PVC |
| Ball Opening Size | 3.81" |
| Ball Port Style | Full Port |
| Body Material | PVC |
| Body Seal Material | EPDM |
| Body Style | True Union |
| Coefficient Of Volume (cv) | 600 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 4" |
| Connection Size - Side 2 | 4" |
| Connection Type | Socket x Socket |
| Connection Type - Side 1 | True Union Socket |
| Connection Type - Side 2 | Socket |
| Features | Double O-Ring Stem Seals, Easy Replacement For Existing Hayward Tb Series, Permanent Laser Markings Eliminates Labels, Standard Lock-Out Plate And Lock-Out/Tag-Out For Upto 4 Locks, System Friendly 'Molded-In' Footpad For Skid Or Panel Mount, System2„ Sealing Technology Seat Carrier Design For Sizes Upto 2 In/Dn50-Patent Pending |
| For Media | Corrosive Chemicals, Water |
| Handle | Locking Tee |
| Handle Color | Red |
| Handle Height | 7.2" |
| Handle Length | 10 1/2" |
| Handle Material | Glass Filled Polypropylene |
| Handle Type | Sure Grip Ergonomic |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Manufacturer Warranty | 3 yrs. |
| Max. Pressure | 235 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 235 psi |
| Media Temperature Range | 34°F to 140°F |
| Nominal Valve Size | 4" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 17.26" |
| Pipe Size | 4" |
| Port | Full |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Special Features | Actuator Compatible |
| Standards | Astm D1784 Cell Class 12454, Astm D4101 Cell Class 85580, Nsf/Ansi 372 |
| Stem Material | PVC |
| Stem Type | Blowout Resistant |
| Temp. Range | +21°F to +70°F |
| Tube Size | 4" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | Tbh |
| Valve Structure | One Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 8.93 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 43.84 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Ball Material | Stem Material | Body Material | Max. Pressure | Seal Material | Overall Length | Handle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CVH1300A0TV0A00 | True Union NPT | PVC | PVC | PVC | 235 psi | FPM | 14 3/5" | - | €855.90 | |
| CVH1300A0SV0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | FPM | 14 3/5" | - | €1,000.73 | |
| CVH1300A0SE0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | EPDM | 14 3/5" | - | €911.97 | |
| CVH1300A0TE0A00 | True Union NPT | PVC | PVC | PVC | 235 psi | EPDM | 14 3/5" | - | €901.86 | |
| CVH1400A0SV0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | FPM | 17.26" | - | €1,281.08 | |
| CVH1400A0SE0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | EPDM | 17.26" | - | €1,226.11 | |
| CVH1400A0TE0A00 | True Union NPT | PVC | PVC | PVC | 235 psi | EPDM | 17.26" | - | €1,178.46 |
