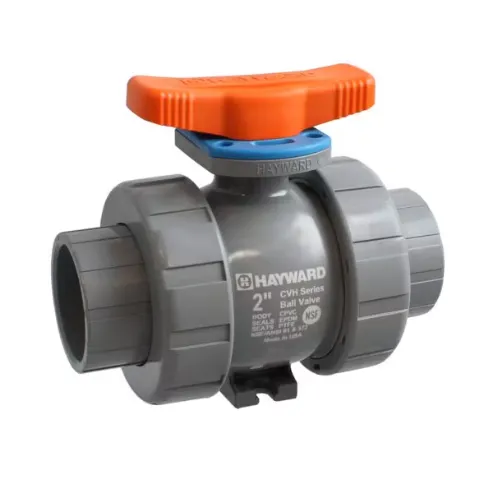

HAYWARD CVH1300A0TE0A00 Ball Valve, 3 Inch Pipe, V Port, 235 PSI, Thread, Threaded
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€811.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Material | PVC |
| Body Material | PVC |
| Body Seal Material | EPDM |
| Body Style | True Union |
| Connection Type | True Union NPT |
| Features | Double O-Ring Stem Seal, Easy Replacement For Existing Hayward Cv Series, Integral Iso 5211 Mounting Pad For Easy Actuation, Permanent Laser Markings, Eliminates Labels, Profile2 Characterized Ball Design, Standard Lock-Out Plate, Lock-Out/Tag-Out For Upto 4 Locks, System Friendly Molded-In Footpad For Skid Or Panel Mount, System2 Sealing Technology Seat Carrier Design Upto 2"/Dn50 Patent Pending, Uv Resistant Sure Grip Ergonomic Handle |
| For Media | Corrosive Chemicals, Water |
| Handle Material | Glassfiber Reinforced Polypropylene |
| Max. Pressure | 235 psi |
| Max. Pressure (cwp) | 235 psi |
| Mount Type | Integral |
| Operating Temp. Range | 60°F to 149°F |
| Overall Length | 14 3/5" |
| Pipe Size | 3" |
| Port | V Port |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Stem Material | PVC |
| Stem Type | Blowout Proof |
| V-port Angle | 90° |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 37.08 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Ball Material | Stem Material | Body Material | Max. Pressure | Seal Material | Overall Length | Handle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CVH1300A0TV0A00 | True Union NPT | PVC | PVC | PVC | 235 psi | FPM | 14 3/5" | - | €855.90 | |
| CVH1300A0SV0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | FPM | 14 3/5" | - | €1,000.73 | |
| CVH1300A0SE0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | EPDM | 14 3/5" | - | €911.97 | |
| CVH1400A0SV0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | FPM | 17.26" | - | €1,281.08 | |
| CVH1400A0SE0A00 | True Union Socket | PVC | PVC | PVC | 235 psi | EPDM | 17.26" | - | €1,226.11 | |
| CVH1400A0TE0A00 | True Union NPT | PVC | PVC | PVC | 235 psi | EPDM | 17.26" | - | €1,178.46 | |
| CVH1400A0TV0A00 | True Union NPT | PVC | PVC | PVC | 235 psi | FPM | 17.26" | - | €1,323.37 |
