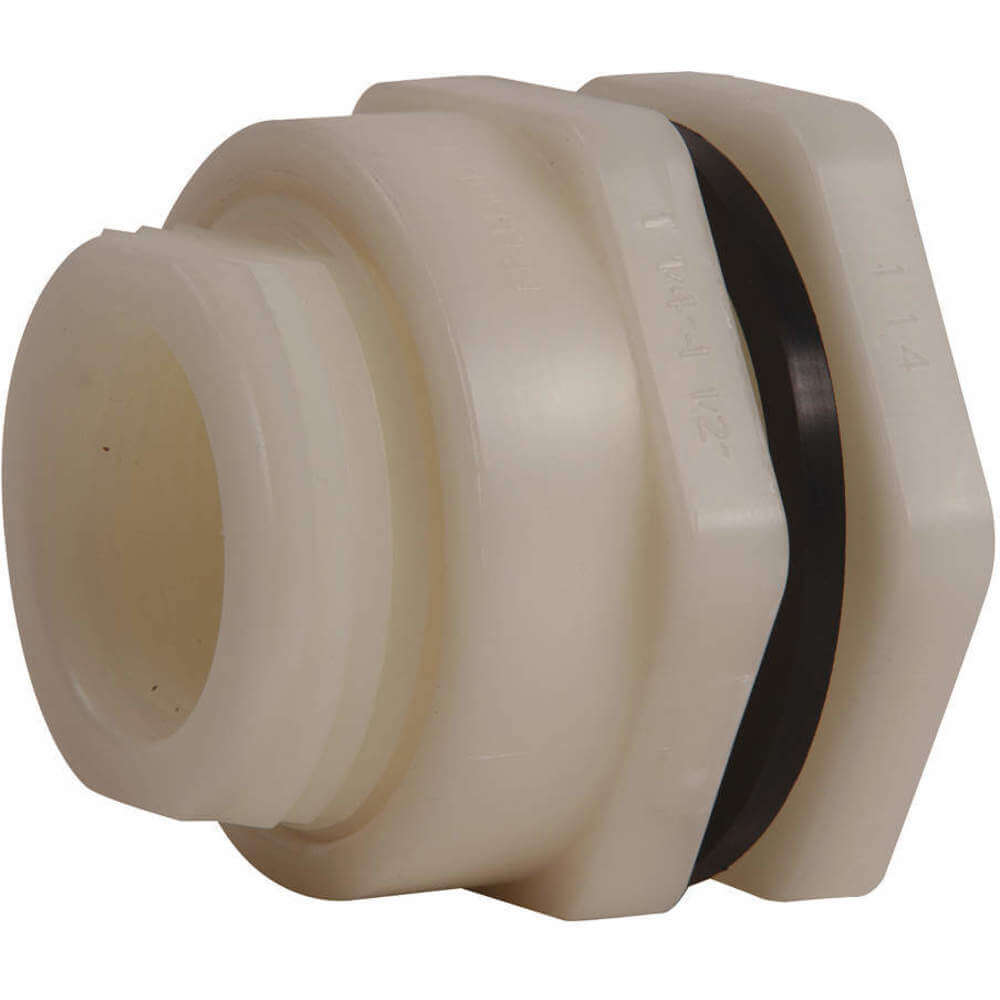

HAYWARD BFAS3012TES Bulkhead Fitting 1-1/4 Inch Polypropylene Epdm
Item: AA4ZQHModel: BFAS3012TESCross Ref: 13L980
7 In Stock
Ships within 2 days via
10.00% off
€102.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bulkhead Tank Fitting |
| Body Material | Polypropylene |
| Color | White |
| Fitting Body Material | Polypropylene |
| Fitting Material | Polypropylene |
| For Tank Shape | Flat, Curved |
| Gasket Material | EPDM |
| Inside Connection Gender | Female |
| Inside Connection Size | 1 1/4" |
| Inside Connection Type | Threaded |
| Length | 3" |
| Max. Pressure | 150 psi |
| Max. Wall Thickness | 1" |
| Maximum Operating Pressure | 150 psi @ 70°F |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Temperature | 40°F |
| Mount Type | Through Wall |
| Number Of Bolt Holes | 0 |
| Outside Connection | 1 1/4" Female Threaded |
| Outside Connection Gender | Female |
| Outside Connection Size | 1 1/4" |
| Outside Connection Type | Threaded |
| Overall Length | 3" |
| Pipe Size | 1 1/4" |
| Required Hole Size | 2 5/8" |
| Required Hole Size | 2-5/8" |
| Standards | Nsf/Ansi 372, Nsf/Ansi 61 |
| Temp. Range | +40°F to +180°F |
| Temperature Range | 40°F to 180°F |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 8.89 |
| HS code | 3917400090 |
| Country of Origin | CN |
Product Variants
| Model | Gasket Material | Temp. Range | Pipe Size | Fitting Material | Max. Wall Thickness | Required Hole Size | Price | |
|---|---|---|---|---|---|---|---|---|
| BFAS1005CFS | FKM | +40°F to +140°F | 1/2" | PVC | 1 2/25" | 1 3/8" | €53.05 | |
| BFAS1005TFS | FPM | +40°F to +140°F | 1/2" | - | 1 2/25" | 1 3/8" | €62.21 | |
| BFAS1007CFS | FPM | +40°F to +140°F | 3/4" | - | 1 2/25" | - | €57.38 | |
| BFAS1007TFS | FKM | +40°F to +140°F | 3/4" | PVC | 1 2/25" | - | €67.23 | |
| BFAS1010CFS | FKM | +40°F to +140°F | 1" | PVC | 1 2/25" | 1 7/8" | €64.12 | |
| BFAS1010TFS | FKM | +40°F to +140°F | 1" | PVC | 1 2/25" | 1 7/8" | €75.47 | |
| BFAS1012CFS | FKM | +40°F to +140°F | 1 1/4" | PVC | 1" | 2 5/8" | €79.46 |
