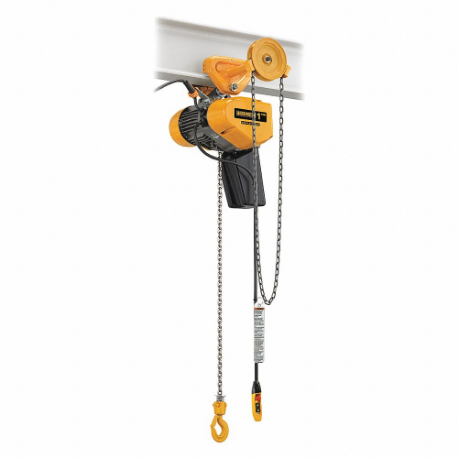

HARRINGTON SEQG005SD-20 Electric Chain Hoist, 1000 Lb Load Capacity, 2 Speeds, 115 Volt, 25/4.2 Fpm, 1 Hp, H4
Get it by Friday, Dec 19
10.00% off
€6,105.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Body Depth | 9 1/8" |
| Body Finish | Epoxy Painted |
| Body Length | 17 5/16" |
| Body Material | Aluminum |
| Body Width | 14 13/32" |
| Brake Type | Pull Rotor |
| Chain Finish | Nickel Plated |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Classification | H4 |
| Clutch | Friction |
| Clutch Type | Friction |
| Color | Yellow |
| Control | Push Button Pendant |
| Control Type | Push Button Pendant |
| Controller Cord Length | 16 ft. |
| Duty Classification | H4 |
| Features | No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (Vfd) |
| Finish | Epoxy Painted |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | Not Applicable |
| For Max. Beam Height | Not Applicable |
| For Maximum Beam Flange Width | 5" |
| For Minimum Beam Flange Width | 2 1/4" |
| For Minimum Beam Height | 3" |
| For Outdoor Use | Yes |
| Headroom | 17 5/16" |
| Headroom Size | 17 5/16" |
| Hoist Ip Rating | IP55 |
| Housing Depth | 9 7/64" |
| Housing Length | 17 19/64" |
| Included Components | Chain Container, Pendant, Safety Latch Hook |
| Includes | Chain Container |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Length | 20 ft. |
| Lift Speed | 4.2-25 FPM |
| Lifting Capacity | 1000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1 3/32" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Manufacturers Warranty Length | 3 yrs. |
| Max Current Draw | 14.9A |
| Maximum Lift Speed | 25 FPM |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 17 5/16" |
| Min. Radius Curve | 51 1/4" |
| Minimum Lift Speed | 4.2 FPM |
| Minimum Retracted Length | 17 5/16" |
| Motor Hp | 1 hp |
| Mounting Type | Geared Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Number Of Speeds | 2 |
| Operating Voltage | 115V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | IP65 |
| Phase | 1 |
| Resistance Properties | Corrosion Resistant |
| Speed Programmability | Programmable By Internal Controls |
| Sub-brand | 1-Phase Electric Hoist |
| Thermal Protection | Included |
| Tonnage - Lifting Capacity | 0.5 ton. |
| Trolley Wheel Dia. | 4 1/4" |
| Trolley Wheel Material | Steel |
| Wheel Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 42.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Motor Hp | Phase | Duty Classification | Lifting Capacity | Mount Type | Mounting Type | Lift Length | Body Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ED1000V-10 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | €5,615.24 | |
| ED1000V-15 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | €6,824.43 | |
| NER005L-10 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005L-20 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005L-15 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005S-20 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,967.00 | |
| NER005S-15 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,967.00 |
