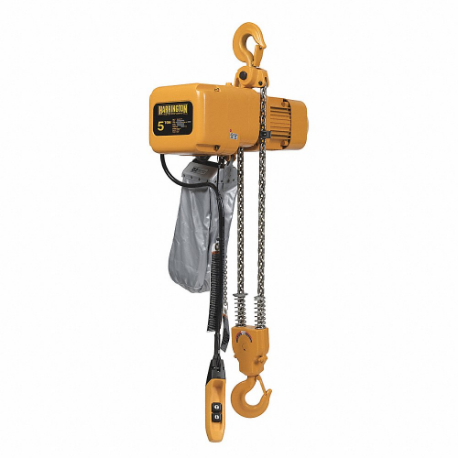

HARRINGTON NER050L-10 Electric Chain Hoist, 10000 Lb Load Capacity, 1 Speeds, 208/230/460 Volt, 11 Fpm, 4.7 Hp
Get it by Tuesday, Feb 17
10.00% off
€11,973.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Body Depth | 10 1/2" |
| Body Finish | Enamel |
| Body Length | 29" |
| Body Width | 17 1/2" |
| Brake Type | DC Current |
| Chain Finish | Enamel |
| Classification | H4 |
| Clutch | Friction |
| Clutch Type | Friction |
| Color | Yellow |
| Control | Push Button Pendant |
| Control Type | Push Button Pendant |
| Controller Cord Length | 6 ft. |
| Duty Classification | H4 - Heavy Duty |
| Finish | Electrostatic Enamel |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | 11 FPM |
| For Max. Beam Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| For Minimum Beam Height | Not Applicable |
| Headroom | 33 1/2" |
| Headroom Size | 33 1/2" |
| Housing Depth | 10 1/2" |
| Housing Length | 29" |
| Includes | Chain Container, Limit Switches, Plug-In Connections |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Speed | 11 FPM |
| Lifting Capacity | 10000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 33 1/2" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Manufacturers Warranty Length | 1 yr. |
| Material | Die Cast Aluminum |
| Max Current Draw | 16.4A |
| Maximum Lift Speed | Not Applicable |
| Maximum Lifting Length | 10 ft. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 33 1/2" |
| Min. Radius Curve | Not Applicable |
| Minimum Lift Speed | Not Applicable |
| Minimum Retracted Length | 33 1/2" |
| Motor Hp | 4 3/4 hp |
| Mount Type | Hook Mounted - No Trolley |
| Mounting Type | Hook With No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 2 |
| Number Of Speeds | 1 |
| Operating Voltage | 208-230/460V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | IP65 |
| Phase | 3 |
| Speed Programmability | Non Programmable |
| Thermal Protection | Included |
| Tonnage - Lifting Capacity | 5 ton. |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
Shipping Info:
| Ship weight (kg) | 143.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Motor Hp | Phase | Duty Classification | Lifting Capacity | Mount Type | Mounting Type | Lift Length | Body Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ED1000V-10 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | €5,615.24 | |
| ED1000V-15 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | €6,824.43 | |
| NER005L-10 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005L-20 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005L-15 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,072.35 | |
| NER005S-20 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,967.00 | |
| NER005S-15 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | €4,967.00 |
