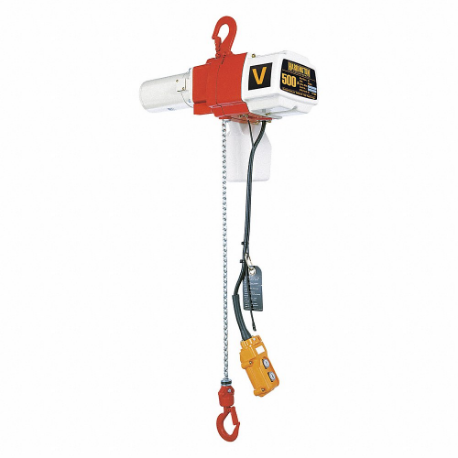

HARRINGTON ED500V-15 Electric Chain Hoist, 500 Lb Load Capacity, 2 Speeds, 120 Volt, 16/44 Fpm, 0.8 Hp
Get it by Tuesday, Jul 7
€4,032.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Chain Hoist |
| Body Depth | 14.312" |
| Body Finish | Powder Coating |
| Body Length | 17" |
| Body Material | Aluminum |
| Body Width | 8 5/8" |
| Brake Type | Weston Style Load Brake |
| Chain Finish | Nickel Plated |
| Classification | H2 |
| Clutch | Friction |
| Clutch Type | Friction Clutch |
| Color | White, Orange |
| Control | Push Button Pendant |
| Control Type | Push Button Pendant |
| Controller Cord Length | 12 ft. |
| Duty Classification | H2 - Light Duty |
| Features | Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Smart Speed Technology, Standard Double-Braking System |
| Finish | Powder Coating |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | Not Applicable |
| For Max. Beam Flange Width | Not Applicable |
| For Max. Beam Height | Not Applicable |
| For Min. Beam Flange Width | Not Applicable |
| For Min. Beam Height | Not Applicable |
| Headroom Size | 13" |
| Housing Length | 17" |
| Included | Chain Container |
| Included Brake | Yes |
| Included Clutch | Yes |
| Lift Speed | 16-44 FPM |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Max. Lift Speed | 44 FPM |
| Max. Lifting Length | 15 ft. |
| Max. Pulling Capacity | Not Applicable |
| Min. Between Hooks | 13" |
| Min. Lift Speed | 16 FPM |
| Min. Radius Curve | Not Applicable |
| Min. Retracted Length | 13" |
| Motor Hp | 3/4 hp , 4/5 hp |
| Mounting Type | Hook With No Trolley |
| No. Of Load Chains | 1 |
| No. Of Reeves | 1 |
| No. Of Speed | Variable |
| Operating Voltage | 120V AC |
| Overload Protection Included | No |
| Pendant Ip Rating | IP65 |
| Phase | 1 |
| Resistance Properties | Wear Resistant |
| Speed Programmability | Programmable By Internal Controls |
| Starts And Stops Per Hour | 180 |
| Sub-brand | Single Phase Electric Hoist |
| Thermal Protection | No |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
Shipping Info:
| Ship weight (kg) | 17.24 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Motor Hp | Phase | Duty Classification | Mounting Type | Lifting Capacity | Lift Length | Lift Speed | Body Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ED1000V-10 | 3/4 hp | 1 | H2 - Light Duty | Hook Mounted No Trolley | 1000 lbs. | - | 8-22 FPM | Powder Coating | €4,492.19 | |
| ED1000V-15 | 3/4 hp | 1 | H2 - Light Duty | Hook Mounted No Trolley | 1000 lbs. | - | 8-22 FPM | Powder Coating | €5,459.54 | |
| NER005L-10 | 3/4 hp | 3 | H4 - Heavy Duty | Hook Mounted No Trolley | 1000 lbs. | - | 15 FPM | Painted | €3,257.87 | |
| NER005L-20 | 3/4 hp | 3 | H4 - Heavy Duty | Hook Mounted No Trolley | 1000 lbs. | - | 15 FPM | Painted | €3,257.87 | |
| NER005L-15 | 3/4 hp | 3 | H4 - Heavy Duty | Hook Mounted No Trolley | 1000 lbs. | - | 15 FPM | Painted | €3,257.87 | |
| NER005S-20 | 1 1/4 hp | 3 | H4 - Heavy Duty | Hook Mounted No Trolley | 1000 lbs. | - | 29 FPM | Painted | €3,973.60 | |
| NER005S-15 | 1 1/4 hp | 3 | H4 - Heavy Duty | Hook Mounted No Trolley | 1000 lbs. | - | 29 FPM | Painted | €3,973.60 |
