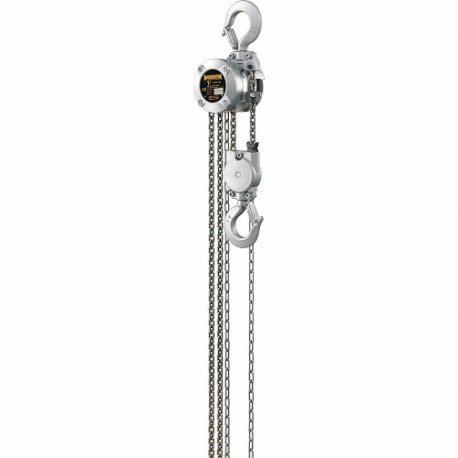

HARRINGTON CX010-20 Mini Hand Chain Hoist, 2000 lb Load Capacity, 43 lb Pull to Lift Rated Load, Brake Pawl
Get it by Friday, Dec 19
10.00% off
€1,782.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Chain Hoist |
| Body Depth | 4 3/32" |
| Body Material | Aluminum |
| Body Width | 4 13/16" |
| Brake Type | Brake Pawl |
| Chain Finish | Nickel Plated |
| Chain Grade | Grade 100 |
| Chain Material | Nickel Plated |
| Color | Silver |
| Features | Advanced Design Overload Limiter, Aluminum Housing, Completely SeaLED Gears And Brake, Wide Top And Bottom Hook Openings |
| For Max. Beam Flange Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Min. Beam Flange Height | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| Headroom | 14 3/32" |
| Hoist Overload Protection | Yes |
| Hook Opening | 1 3/32" |
| Housing Depth | 4" |
| Housing Length | 3 4/5" |
| Housing Width | 4 3/4" |
| Included Components | Safety Latch Hooks |
| Includes | Safety Latch |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lever Length | Not Applicable |
| Lift Length | 20 ft. |
| Lifting Capacity | 2000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1 3/32" |
| Lifting Hook Type | Hook With Safety Latch |
| Manufacturers Warranty Length | 2 yrs. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 14 1/4" |
| Minimum Retracted Length | 14 3/32" |
| Mount Type | Hook Mounted - No Trolley |
| Mounting Type | Hook Mounted No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 2 |
| Operating Position | Vertical |
| Overload Protection Included | Yes |
| Power Source | Manual |
| Pull Force To Lift Rated Load | 44 lbs. |
| Pull To Lift Rated Load | 44 lbs. |
| Resistance Properties | Corrosion Resistant, Wear Resistant |
| Tonnage - Lifting Capacity | 1 ton. |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Headroom | Lifting Hook Opening Width | Overload Protection Included | Body Material | Body Width | Body Depth | Color | Lift Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF005-10 | 12 13/16" | 1 3/32" | No | Die-Cast Aluminum | 5 29/32" | 5 13/32" | Yellow | 10 ft. | €450.26 | |
| CF005-15 | - | - | - | - | - | - | - | 15 ft. | €589.89 | |
| CF005-20 | 12 13/16" | 1 3/32" | No | Die-Cast Aluminum | 5 29/32" | 5 13/32" | Yellow | - | €722.50 | |
| CF010-10 | 14 19/32" | 1 3/32" | No | Die-Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 10 ft. | €519.36 | |
| CF010-15 | 14 19/32" | 1 3/32" | No | Die-Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 15 ft. | €643.11 | |
| CF010-20 | 14 19/32" | 1 3/32" | No | Die-Cast Aluminum | 6 29/32" | 5 13/16" | Yellow | 20 ft. | €779.86 | |
| CF015-10 | 17 5/16" | 1 5/16" | No | Die-Cast Aluminum | 8" | 6" | Yellow | 10 ft. | €808.64 |
