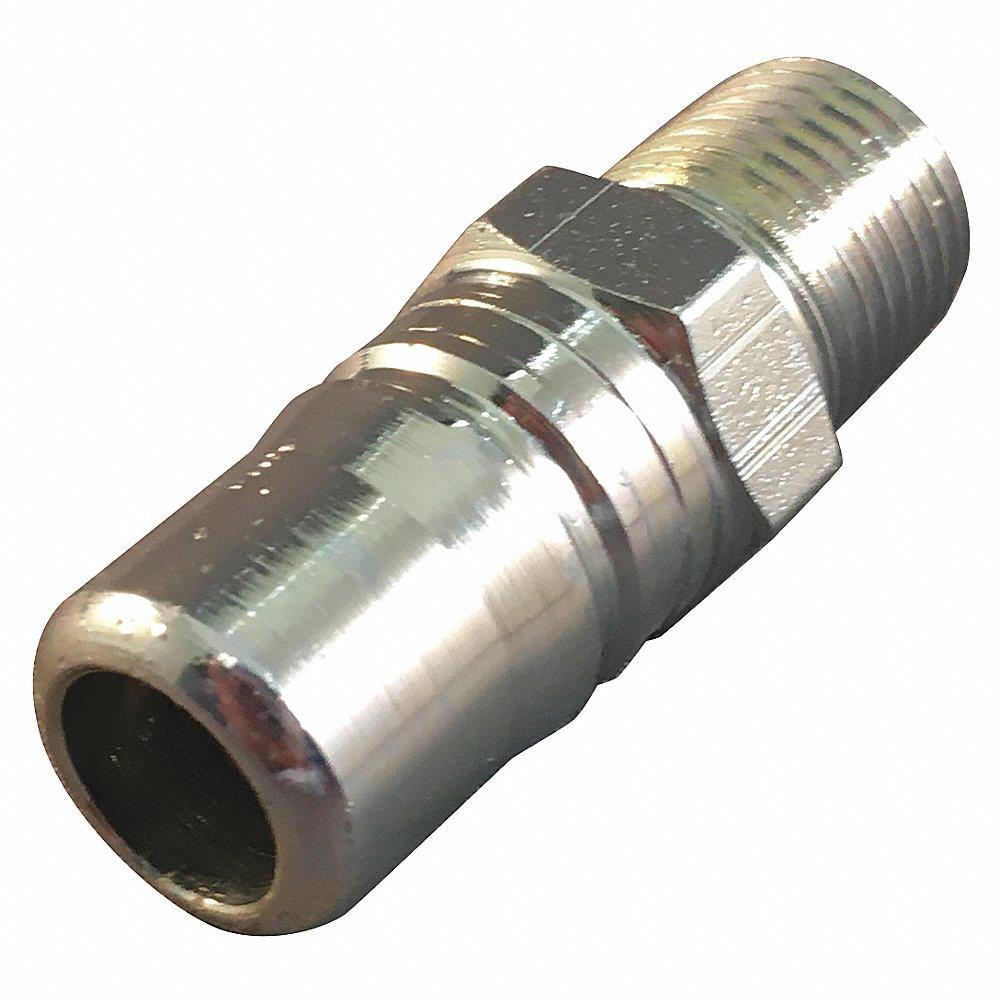

HANSEN 2L15 Hose Coupling, 1/4 Inch Size, Steel
Item: CJ2NQJModel: 2L15Cross Ref: 55JU81
7 In Stock
Ships within 2 days via
10.00% off
€10.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Coupling |
| Bearing Material | Stainless Steel |
| Body Material | Steel |
| Connection Type | NPT |
| Coupling Component | Plug |
| Coupling Locking Type | Push-To-Connect |
| Coupling Size | 1/4" |
| Finish/coating | Trivalent Chromium Zinc |
| Fitting Type | MNPT |
| For Use With | 2R15 |
| Hose Fitting Gender | Male |
| Includes | Ring Lock |
| Includes Bearing | No |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Max. Flow Rate | 183.97 LPM |
| Max. Working Pressure @ 70 F | 300 psi |
| Maximum Vacuum | 28 in. hg |
| Overall Length | 1 21/32" |
| Pull Ring Material | PTFE |
| Seal Material | Nitrile |
| Series | 2RL Series |
| Sleeve Material | Steel |
| Thread Size | 1/4"-18 |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Body Material | Connection Type | Coupling Size | Valve Type | Sleeve Material | Bearing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
100006E | Brass | NPT | 3/8" | Poppet | Brass | Stainless Steel | €103.23 | |
 |
10FFP50 | Steel | NPT | 3/8" | 2 Way | Zinc Plated Steel | Stainless Steel | €79.11 | |
|
10FFP56UN | Steel | SAE | 3/8" | Flush Face | Carbon Steel | Stainless Steel | €79.43 | |
 |
10FFS50 | Steel | NPT | 3/8" | 2 Way | Zinc Plated Steel | Stainless Steel | €117.42 | |
|
10FFS56UN | Steel | SAE | 3/8" | Flush Face | Carbon Steel | Stainless Steel | €207.64 | |
|
12FFP75 | Steel | NPT | 1/2" | Flush Face | Carbon Steel | Stainless Steel | €170.37 | |
|
12FFS75 | Steel | NPT | 1/2" | Flush Face | Carbon Steel | Stainless Steel | €296.91 |
