HAMILTON W-620-DB-1/2 Caster Wheel 1200 Lb. 6in. Diameter x 2in
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€100.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Caster Wheel |
| Bore Dia. | 1.571" |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Temp. Range | Yes |
| Caster Wheel Material | Polyurethane |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer Rating | 90 Shore A |
| Fits Axle | 1/2" |
| For Axle Size | 1/2" |
| Hub Length | 2 1/4" |
| Hub Width | 2 1/4" |
| Hub Width | 2-1/4" |
| Includes | (2) Top Hat Bushings |
| Includes Spanner Bushing | Not Included |
| Load Rating | 1200 lbs. |
| Non-marking | Yes |
| Operating Temperature Range | -50°F to +200°F |
| Replacement For | 5VJ08 |
| Replacement For | 5VG64, 5VJ08 |
| Spanner Bushing | Yes |
| Temp. Range | -50°F to +200°F |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Green |
| Wheel Core Material | Iron |
| Wheel Dia. | 6" |
| Wheel Material | Polyurethane |
| Wheel Width | 2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 90 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 2.9 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| HS code | 8716905040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Wheel Core Material | Hub Length | Load Capacity | Wheel Bearing Type | For Axle Size | Wheel/tread Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W-420-DB-1/2 | 4" | 2" | - | - | - | Precision Ball | - | - | €81.50 | |
 |
W-630-DB-3/4 | 6" | 3" | Iron | 3 1/4" | - | Precision Ball | 3/4" | Green | €184.20 | |
 |
W-820-DB-1/2 | 8" | 2" | Iron | - | - | Precision Ball | 1/2" | Green | €117.75 | |
 |
W-830-DB-3/4 | 8" | 3" | Iron | 3 1/4" | - | Precision Ball | 3/4" | Green | €231.09 | |
|
W-1030-DB-3/4 | 10" | 3" | Iron | 3 1/4" | - | Precision Ball | 3/4" | Green | €282.65 | |
 |
W-1030-D-1 | 10" | 3" | Cast Iron, Iron | 3 1/4" | 3000 lbs. | Roller | 1" | Green | €245.16 | |
 |

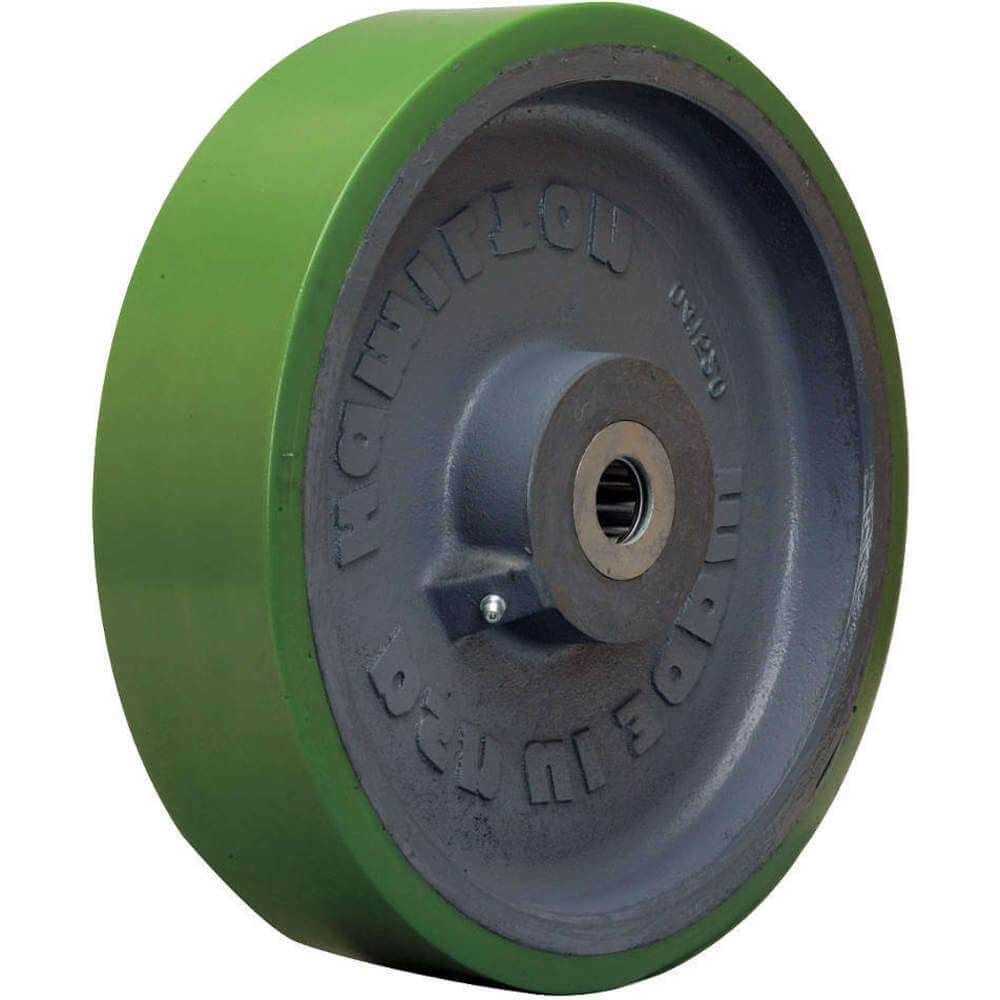

W-1230-D-1 | 12" | 3" | Cast Iron, Iron | 3 1/4" | 3500 lbs. | Roller | 1" | Green | €383.52 |
