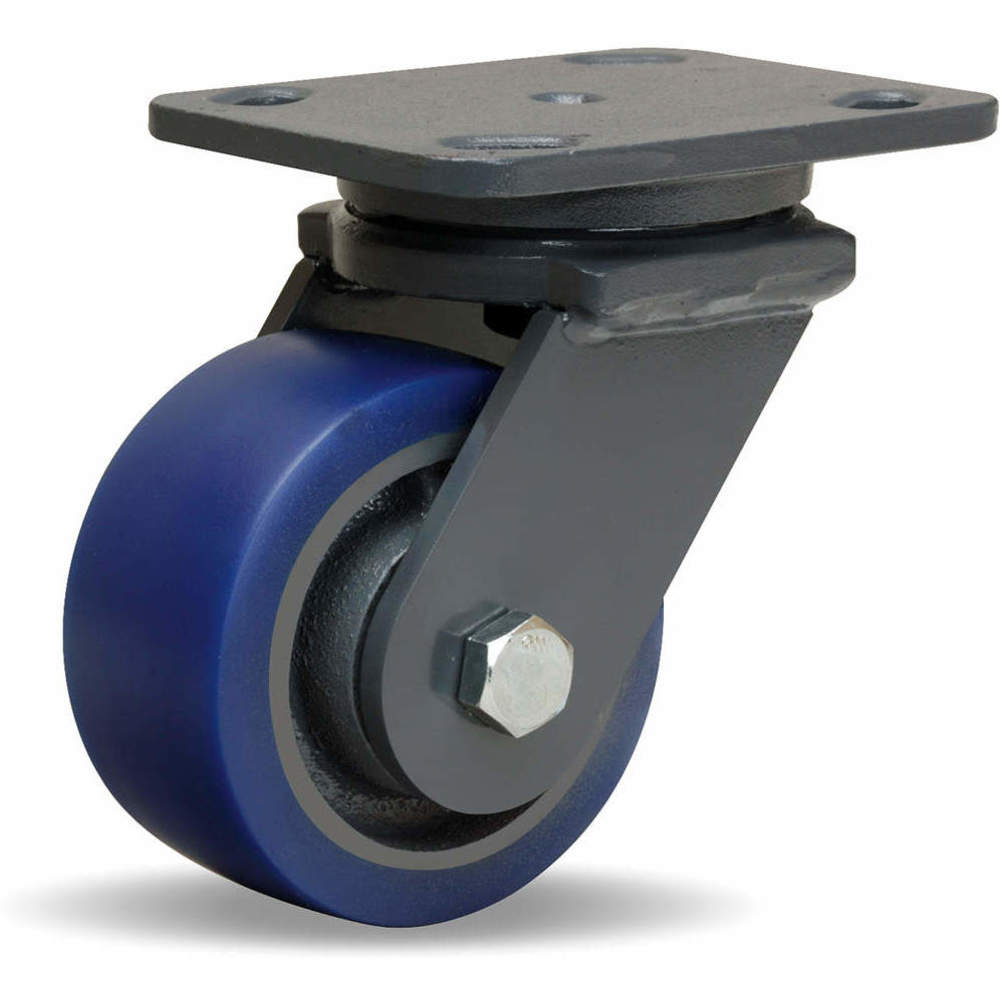

HAMILTON S-WH-4SPB Swivel Plate Caster 600 Lb 4 Inch Dia
600 lbs.
4"
Swivel
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€236.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Single Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 82 Shore A |
| Features | Floor Protective |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 600 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 5 5/8" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 5" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 5" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -50°F to +175°F |
| Outside Bolt Hole Spacing | 3" x 3" |
| Plate Caster Core Material | Cast Iron |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Polyurethane |
| Plate Size | 4" x 5" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Raceway Type | Single Ball |
| Replacement Wheel | 49H435 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Blue |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 82 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 17.78 |
| HS code | 8716903000 |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Caster Brake Type | Caster Load Rating Range | Mounting Height | Caster Sub-type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-WH-6SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 940 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 7 1/2" | Swivel | €264.63 | |
 |
S-WH-8SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1200 lbs. | No Brake Included | 1000 lbs. to 2999 lbs. | 9 1/2" | Swivel | €302.29 | |
 |
R-WH-6SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 960 lbs. | No Brake Included | - | 7" | Rigid | €188.85 | |
 |
R-WH-8SPB | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 1200 lbs. | - | 1000 lbs. to 2999 lbs. | - | - | €201.39 | |
 |
R-WH-4DB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 750 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 5 5/8" | Rigid | €123.74 | |
 |
R-WH-4MB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1000 lbs. | No Brake Included | 1000 lbs. to 2999 lbs. | 5 5/8" | Rigid | €106.79 | |
 |
R-WH-4P | 2 5/8" x 3 5/8" | 3" x 3" | Roller | 800 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 5 5/8" | Rigid | €74.56 |
