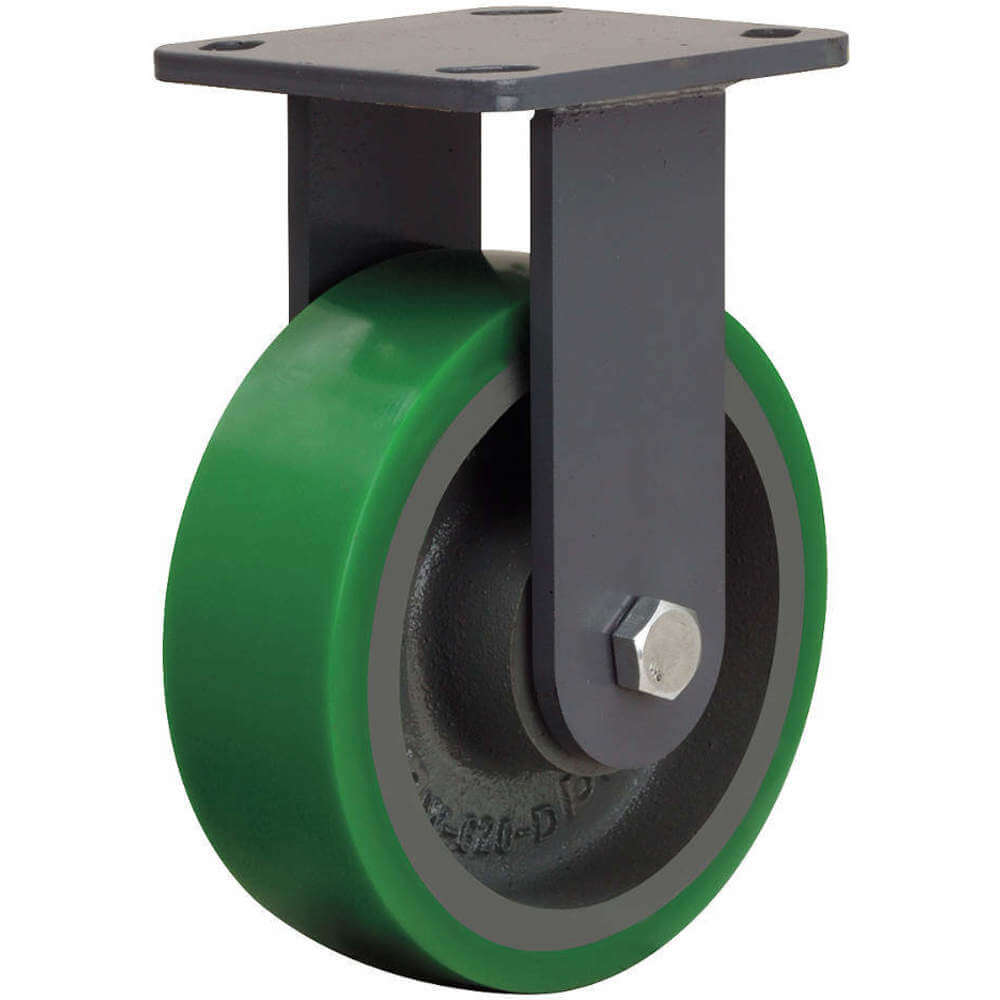

HAMILTON R-WH-4DB Rigid Plate Caster 750 Lb 4 Inch Diameter
750 lbs.
4"
Rigid
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€111.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 90 Shore A |
| Extended Lead | No |
| Features | Floor Protective |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 750 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 5 5/8" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Height | 5 5/8" |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Replacement Wheel | 4DU67 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Green |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 4" |
| Wheel Material | Polyurethane |
| Wheel Width | 2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 2.84 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 10.16 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Caster Brake Type | Caster Load Rating Range | Mounting Height | Caster Sub-type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-WH-6SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 940 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 7 1/2" | Swivel | €264.63 | |
 |
S-WH-8SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1200 lbs. | No Brake Included | 1000 lbs. to 2999 lbs. | 9 1/2" | Swivel | €302.29 | |
 |
R-WH-6SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 960 lbs. | No Brake Included | - | 7" | Rigid | €188.85 | |
 |
R-WH-8SPB | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 1200 lbs. | - | 1000 lbs. to 2999 lbs. | - | - | €201.39 | |
 |
R-WH-4MB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1000 lbs. | No Brake Included | 1000 lbs. to 2999 lbs. | 5 5/8" | Rigid | €106.79 | |
 |
R-WH-4P | 2 5/8" x 3 5/8" | 3" x 3" | Roller | 800 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 5 5/8" | Rigid | €74.56 | |
 |
R-WH-6DB | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 1250 lbs. | No Brake Included | 1000 lbs. to 2999 lbs. | 7 1/2" | Rigid | €104.88 |
