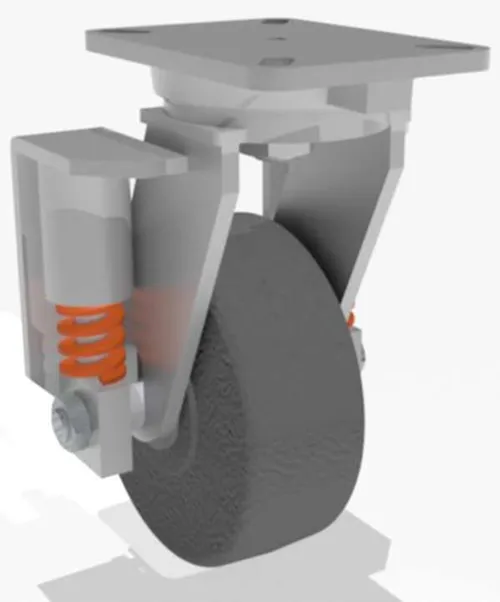

HAMILTON S-SPCH-83PH-1 Spring Loaded Swivel Caster, 8 X 3 Inch Size, Plastex Phenolic Wheel
Get it by Friday, Dec 19
€723.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistance | Medium |
| Bearing Type | Straight Roller |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Integral Forged Kingpin |
| Chemical Resistant | Poor |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 300°F |
| Impact Resistance | Medium |
| Low Temp. Range (f) | -50°F |
| Max. Capacity 1 | 875 lbs. |
| Min. Capacity 1 | 150 lbs. |
| Moisture Resistance | Low |
| Mounting Bolt | 1/2" |
| Mounting Plate | 5 1/4" x 7 1/4" |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Width | 5 1/4" |
| Overall Height | 12 1/4" |
| Relative Capacity | High |
| Relative Cost | Low |
| Replacement Wheel | W-830-P-1 |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Black |
| Wheel Core Material | Phenolic |
| Wheel Dia. | 8" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Phenolic |
| Wheel Type | Plastex |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Caster Sub-type | Mounting Height | Wheel Core Material | Overall Height | Bearing Type | Wheel Type | Mounting Plate Bolt Hole Pattern | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-SPCH-63DB-2 | 6" | Swivel | 11 1/4" | Cast Iron | 11 1/4" | Precision Sealed Ball | Duralast | A | €1,109.98 | |
 |
R-SPCH-63DB-2 | 6" | Rigid | 11 1/4" | Cast Iron | 11 1/4" | - | - | A | €884.38 | |
|
S-SPCH-83DB-2 | 8" | Swivel | 12 1/4" | Cast Iron | 12 1/4" | Precision Sealed Ball | Duralast | A | €1,128.81 | |
|
R-SPCH-83DB-2 | 8" | Rigid | 12 1/4" | Cast Iron | - | - | - | A | €814.74 | |
 |
R-SPCH-10PH-1 | - | - | - | - | - | - | - | - | €474.96 | |
|
R-SPCH-10PT-1 | - | - | - | - | - | - | - | - | €561.01 | |
 |
R-SPCH-12DB-1 | - | - | - | - | - | - | - | - | €712.80 |
