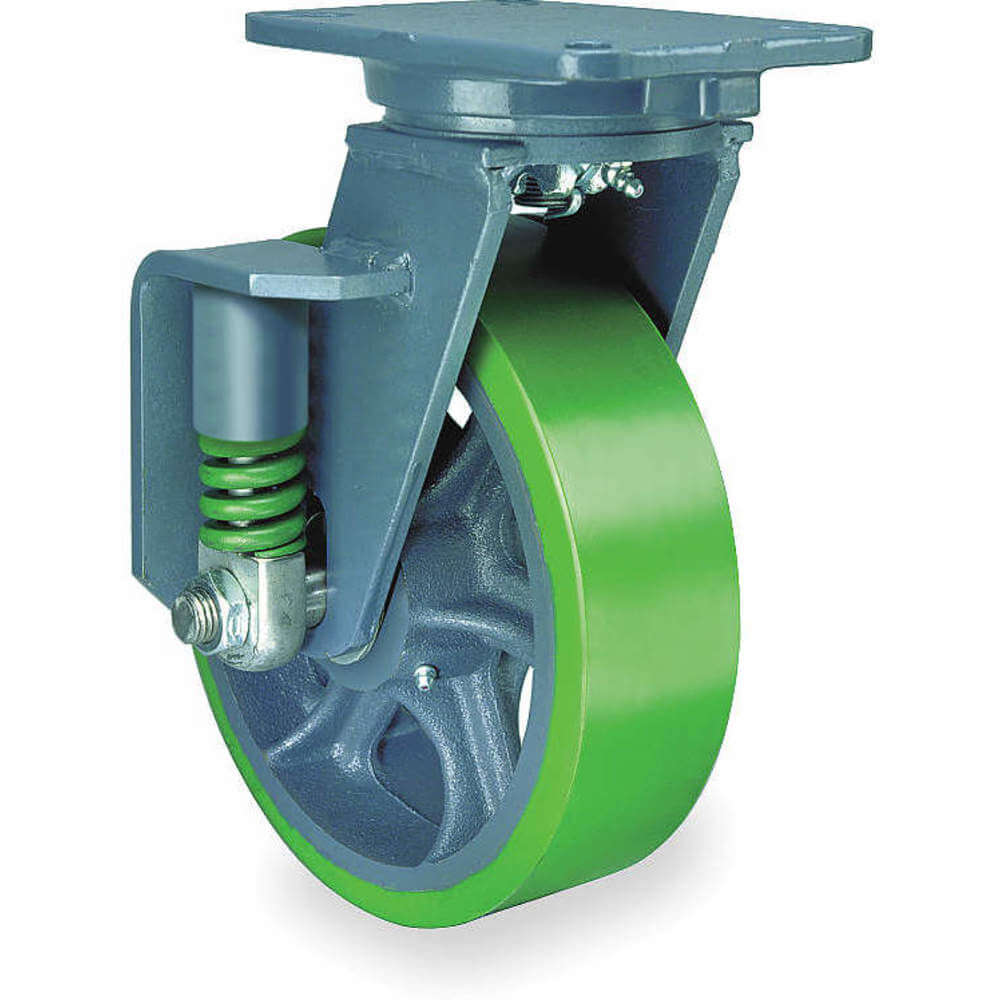

HAMILTON S-SPCH-63DB-2 Swivel Plate Shock-absorbing Caster Gray
Get it by Thursday, Dec 18
10.00% off
€998.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Shock-Absorbing Caster |
| Abrasion Resistance | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Color/finish | Platinum Powder |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Product Group | Swivel Caster |
| Caster Rig Type | Integral Forged Kingpin |
| Caster Shape | Standard |
| Caster Sub-type | Swivel |
| Caster Temp. Range | Yes |
| Caster Wheel Shape | Standard |
| Chemical Resistant | Medium |
| Core Color | Gray |
| Core Material | Cast Iron |
| Cushioning (resilience) | Medium |
| Features | Shock Absorbing |
| Frame Finish | Enamel |
| Frame Material | Steel |
| High Temp. Range (f) | 200°F |
| Hole Pattern | A |
| Impact Resistance | Medium |
| Includes | Spring Loaded |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Rating | 1630 lbs. |
| Lock Type | No Lock Included |
| Low Temp. Range (f) | -50°F |
| Material | Polyurethane |
| Max. Capacity 1 | 1740 lbs. |
| Min. Capacity 1 | 290 lbs. |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 11 1/4" |
| Mounting Plate | 5 1/4" x 7 1/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Mounting Plate Width | 5 1/4" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 11 1/4" |
| Plate Size | 5 1/4" x 7 1/4" |
| Plate Thickness | 1/2" |
| Plate Type | A |
| Raceway | Precision Ball |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | W-630-DB-3/4 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Single Ball |
| Temp. Range | -40°F to +200°F |
| Tread Shape | Standard |
| Type | Swivel |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Green |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 6" |
| Wheel Face | 3" |
| Wheel Material | Polyurethane |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 15.24 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Caster Sub-type | Mounting Height | Wheel Core Material | Overall Height | Bearing Type | Wheel Type | Mounting Plate Bolt Hole Pattern | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

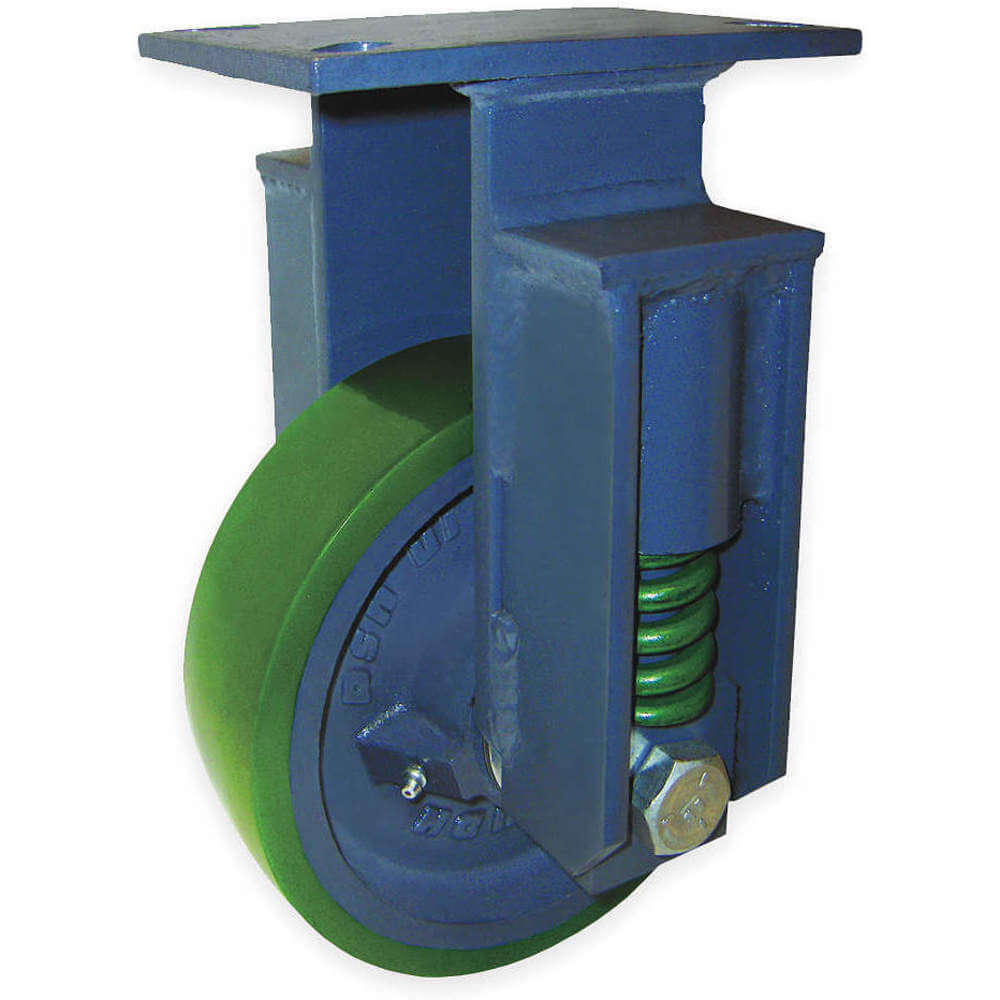

R-SPCH-63DB-2 | 6" | Rigid | 11 1/4" | Cast Iron | 11 1/4" | - | - | A | €884.38 | |
|
S-SPCH-83DB-2 | 8" | Swivel | 12 1/4" | Cast Iron | 12 1/4" | Precision Sealed Ball | Duralast | A | €1,128.81 | |
|
R-SPCH-83DB-2 | 8" | Rigid | 12 1/4" | Cast Iron | - | - | - | A | €814.74 | |
 |

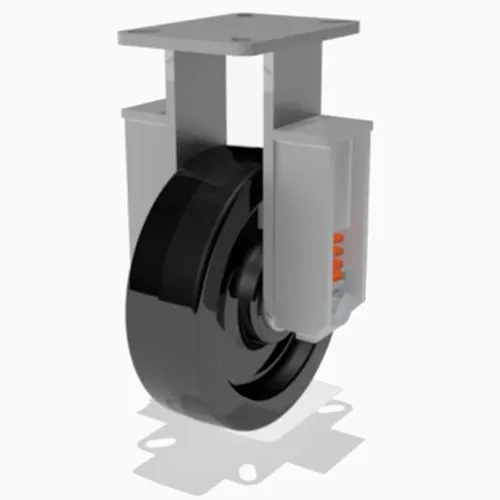

R-SPCH-10PH-1 | - | - | - | - | - | - | - | - | €474.96 | |
|
R-SPCH-10PT-1 | - | - | - | - | - | - | - | - | €561.01 | |
 |

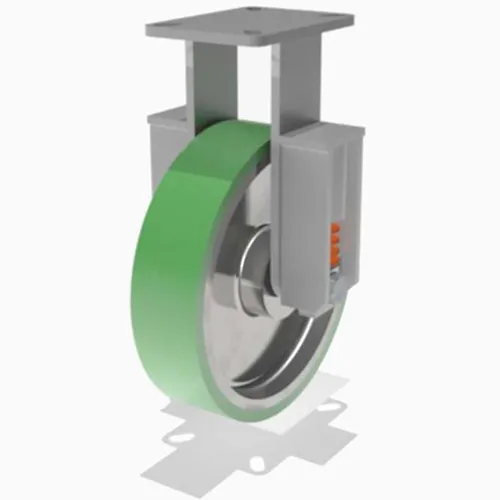

R-SPCH-12DB-1 | - | - | - | - | - | - | - | - | €712.80 | |
 |

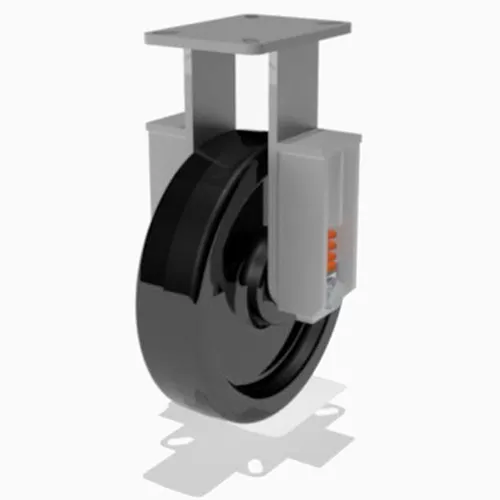

R-SPCH-12PH-1 | - | - | - | - | - | - | - | - | €503.73 |
