HAMILTON S-MS-8DB Medium Service Swivel Caster, 8 X 2 Inch Size, 1/2 Inch Sealed Precision Ball Bearing
1250 lbs.
8"
Swivel
Get it by Friday, Dec 19
€131.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistance | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 4" x 4" |
| Bolt Hole 2 | 4 1/8" x 4 1/2" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Type | Cold Forged/Stamped |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | Medium |
| Load Capacity | 1250 lbs. |
| Load Capacity @ 3 Mph | 1250 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 3/8" |
| Mounting Plate | 5" x 5 1/2" |
| Mounting Plate Length | 5 1/2" |
| Mounting Plate Width | 5" |
| Overall Height | 9 1/2" |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | W-820-DB-1/2 |
| Swivel Offset | 2.19" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 8" |
| Wheel Face | 2" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Caster Sub-type | Wheel Bearing Type | Mounting Height | Wheel Core Material | Overall Height | Bearing Type | Wheel Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

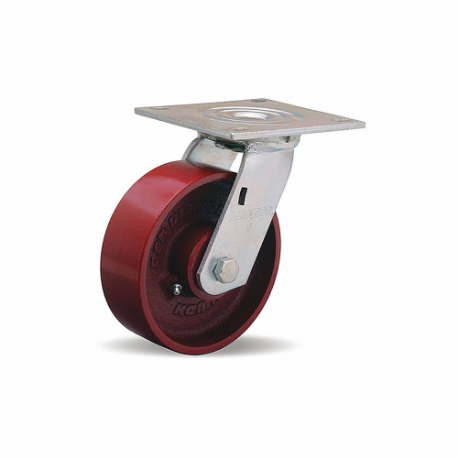

S-MS-6MB | - | Swivel | Precision Ball | 7 1/2" | Cast Iron | 7 1/2" | Precision Sealed Ball | Metal | €143.70 | |
 |

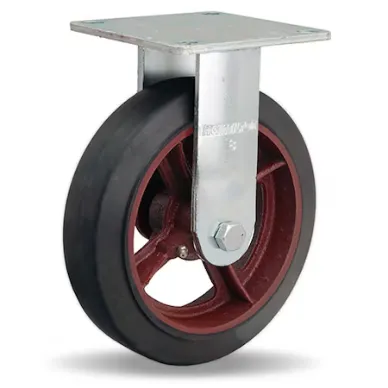

R-MS-8R | - | Rigid | Roller | 9 1/2" | - | - | - | - | €123.74 | |
 |
S-MS-8R | - | Swivel | Roller | 9 1/2" | Cast Iron | 9 1/2" | Straight Roller | Moldon Rubber | €148.64 | |
 |
R-MS-5DB | - | - | - | - | - | - | - | - | €94.63 | |
 |

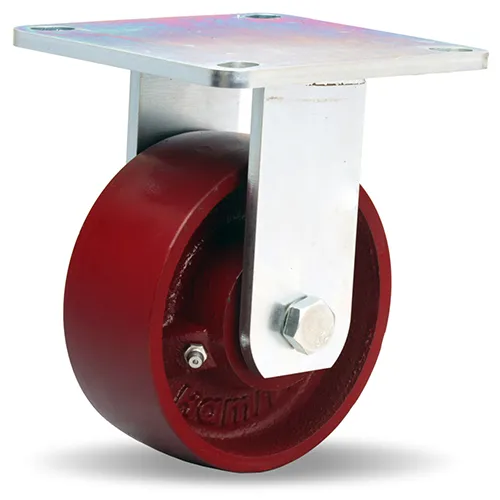

R-MS-5MB | - | - | - | - | - | - | - | - | €73.06 | |
 |
R-MS-5NF | - | - | - | - | - | - | - | - | €57.97 | |
 |
R-MS-5P | - | - | - | - | - | - | - | - | €51.10 |
