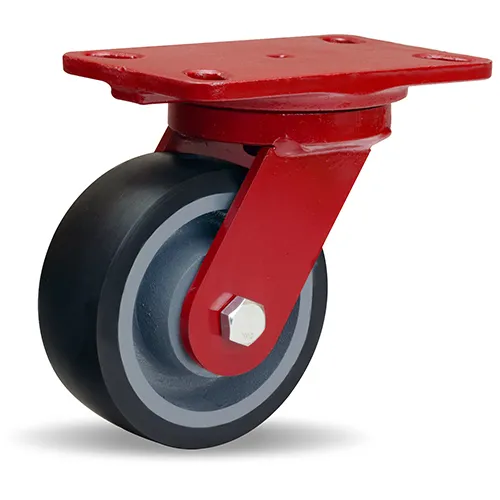

HAMILTON S-HS-5DB70 Heavy Service Swivel Caster, 5 X 2 Inch Size, Polyurethane on Cast Iron Wheel
1360 lbs.
5"
Swivel
Get it by Tuesday, Aug 18
€204.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Caster Core Material | Cast Iron |
| Caster Frame Material | Forged Steel |
| Caster Plate Hole Pattern | A |
| Caster Temp. Range | -50°F to +200°F |
| Caster Wheel Bearings | Precision Ball |
| Caster Wheel Shape | Standard |
| Caster Wheel/tread Material | Polyurethane |
| Core Color | Gray |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 1360 |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 6.75 |
| No. Of Mounting Holes | 4 |
| No. Of Wheel | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Plate Size | 4 1/2" x 6 1/2" |
| Replacement Wheel | W-520-DB70-1/2 |
| Wheel Dia. | 5 |
| Wheel Width | 2 |
| Wheel/tread Color | Black |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Load Rating | Mounting Height | Wheel Bearing Type | Caster Sub-type | Wheel/tread Material | Caster Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-HS-6P | 6" | 2" | 1200 lbs. | 7 3/4" | Roller | Rigid | Phenolic | Steel | €77.36 | |
 |
R-HS-8P | 8" | 2" | 1400 lbs. | 9 1/2" | Roller | Rigid | Phenolic | Steel | €107.05 | |
 |
S-HS-4P | 4" | 2" | 800 lbs. | 5 5/8" | Roller | Swivel | Phenolic | Steel | €151.71 | |
 |
S-HS-6P | 6" | 2" | 1200 lbs. | 7 3/4" | Roller | Swivel | Phenolic | Steel | €147.94 | |
 |
S-HS-8P | 8" | - | 1400 lbs. | 9 3/4" | Roller | Swivel | Phenolic | Steel | €180.66 | |
 |
S-HS-4DB | - | 2" | 750 lbs. | - | Sealed Precision Ball | - | - | - | €182.13 | |
 |
S-HS-4MB | 4" | 2" | 1000 lbs. | 5 5/8" | Precision Ball | Swivel | Iron | Steel | €188.54 |
