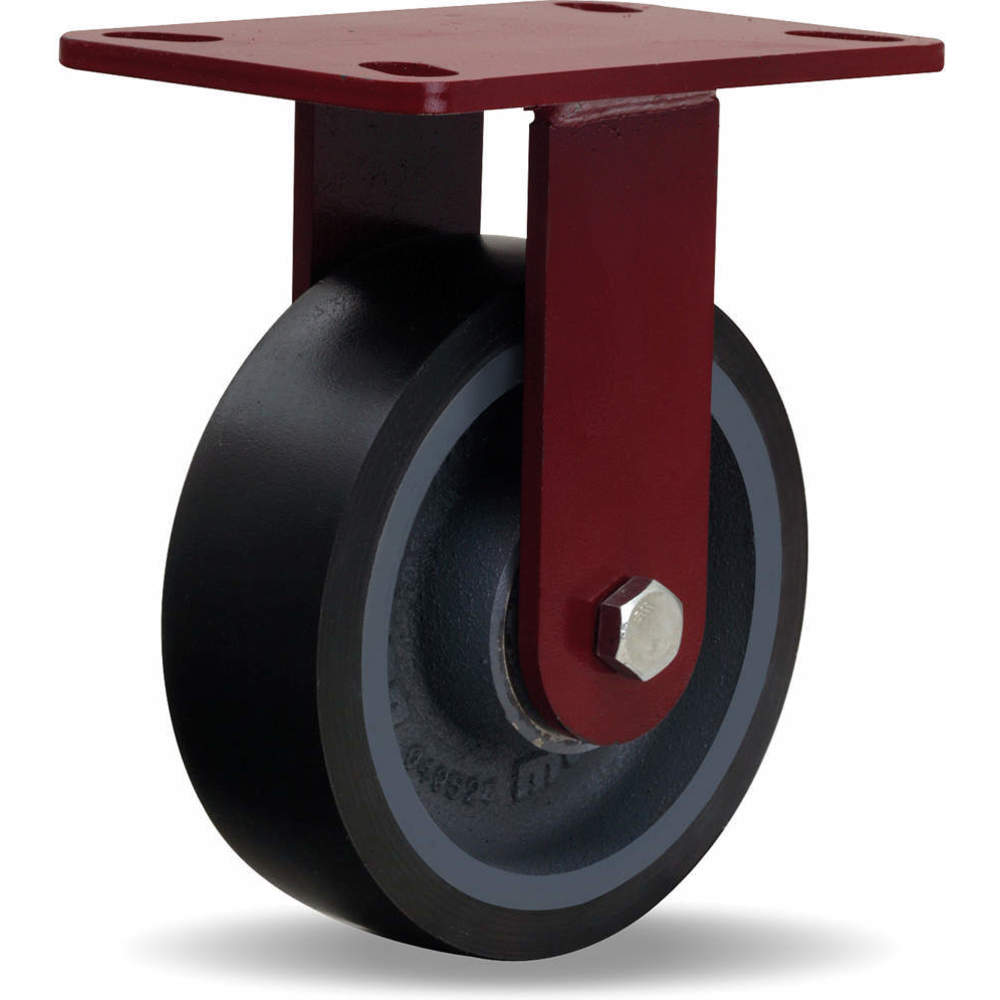

HAMILTON R-HS-6DB70 Rigid Plate Caster 1560 Lb 6 Inch Dia
1560 lbs.
6"
Rigid
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€180.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 70 Shore D |
| Extended Lead | No |
| Features | Floor Protective |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 1560 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 3/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 7 3/4" |
| Plate Caster Core Material | Cast Iron |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Polyurethane |
| Plate Size | 4 1/2" x 6 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | A |
| Replacement Wheel | 49H455 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Blue |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 70 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 11.43 |
| HS code | 8716903000 |
| Country of Origin | US |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Wheel Bearing Type | Caster Sub-type | Load Rating | Mounting Height | Caster Load Rating Range | Wheel/tread Material | Wheel Dia. | Non-marking | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-HS-6P | Roller | Rigid | 1200 lbs. | 7 3/4" | 1000 lbs. to 2999 lbs. | Phenolic | - | Yes | €85.45 | |
 |
R-HS-8P | Roller | Rigid | 1400 lbs. | 9 1/2" | 1000 lbs. to 2999 lbs. | Phenolic | - | Yes | €109.40 | |
 |
S-HS-4P | Roller | Swivel | 800 lbs. | 5 5/8" | 300 lbs. to 999 lbs. | Phenolic | - | Yes | €189.50 | |
 |
S-HS-6P | Roller | Swivel | 1200 lbs. | 7 3/4" | 1000 lbs. to 2999 lbs. | Phenolic | 6" | Yes | €170.39 | |
 |
S-HS-8P | Roller | Swivel | 1400 lbs. | 9 3/4" | 1000 lbs. to 2999 lbs. | Phenolic | - | Yes | €197.07 | |
 |
S-HS-4DB | Sealed Precision Ball | - | 750 lbs. | - | - | - | - | Yes | €207.79 | |
 |
S-HS-4MB | Precision Ball | Swivel | 1000 lbs. | 5 5/8" | 1000 lbs. to 2999 lbs. | Iron | 4" | Yes | €225.42 |
