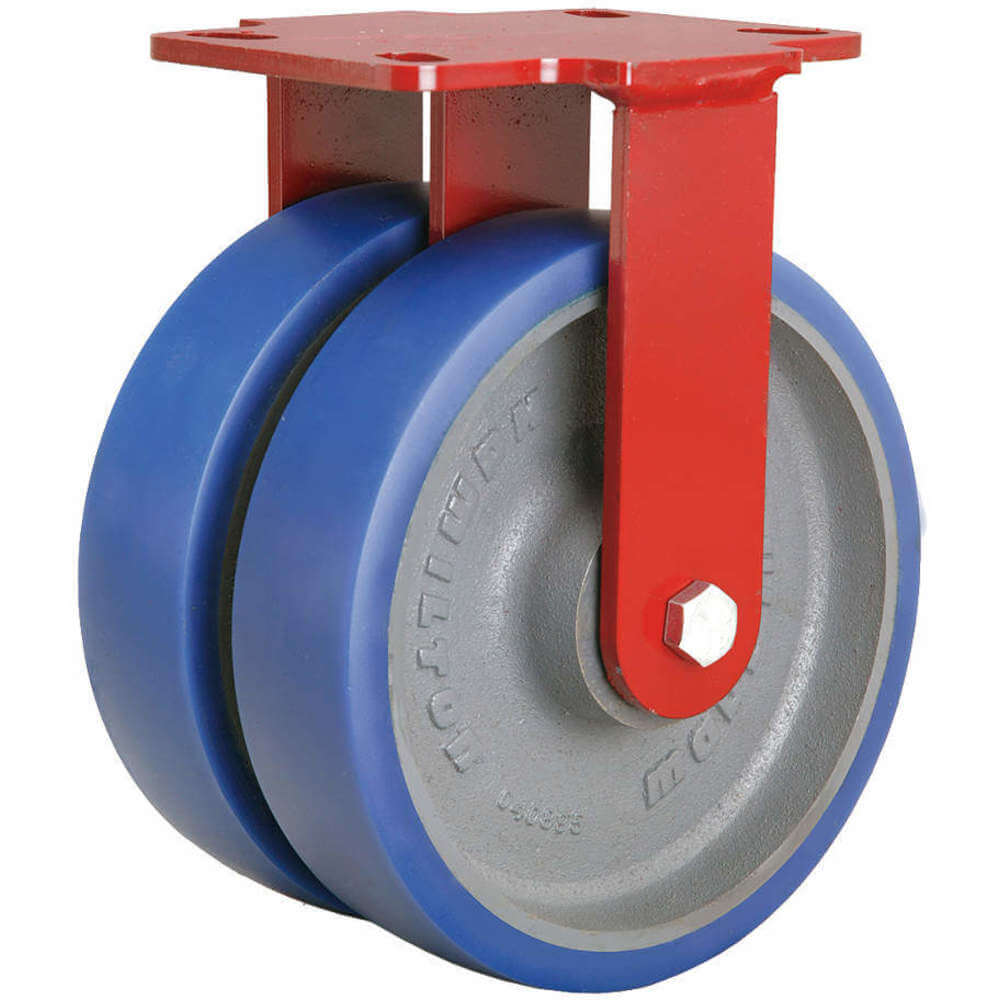

HAMILTON R-HS2-8SPB Dual Wheel Rigid Caster 2000 Lb 8 Inch Pureth
2100 lbs.
8"
Rigid
Get it by Tuesday, Dec 23
10.00% off
€511.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dual Wheel Rigid Caster |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range | Yes |
| Caster Type | Rigid |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 80 Shore A |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 2000 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 9 3/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 6 1/4" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 6 1/4" X 6 1/2" ( A ) |
| Mounting Type | Plate |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 2 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 9 3/4" |
| Plate Size | 4 1/2" x 6 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | A |
| Replacement Wheel | 4DB71 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Temp. Range | -50°F to +175°F |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Blue |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 8" |
| Wheel Material | Polyurethane |
| Wheel Width | 2" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 82 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 20.32 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Non-marking | Load Rating | Wheel Bearing Type | Caster Type | Frame Finish | Core Color | Inside Bolt Hole Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-HS2-4DB | 4" | Yes | 1500 lbs. | Precision Ball | Swivel | Enamel | Gray | 2 7/16" x 4 15/16" | €545.56 | |
 |
R-HS2-4DB | 4" | Yes | 1500 lbs. | Precision Ball | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €434.59 | |
 |
S-HS2-4SPB | 4" | Yes | 1200 lbs. | Precision Ball | Swivel | Enamel | Gray | 2 7/16" x 4 15/16" | €606.78 | |
 |
R-HS2-4SPB | 4" | Yes | 1200 lbs. | - | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €455.26 | |
 |
S-HS2-6DB | 6" | Yes | 2400 lbs. | Precision Ball | Swivel | Enamel | Gray | 2 7/16" x 4 15/16" | €580.24 | |
 |
R-HS2-6DB | 6" | Yes | 2400 lbs. | Precision Ball | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €396.48 | |
 |
R-HS2-6SPB | 6" | Yes | 1920 lbs. | Precision Ball | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €490.86 |
