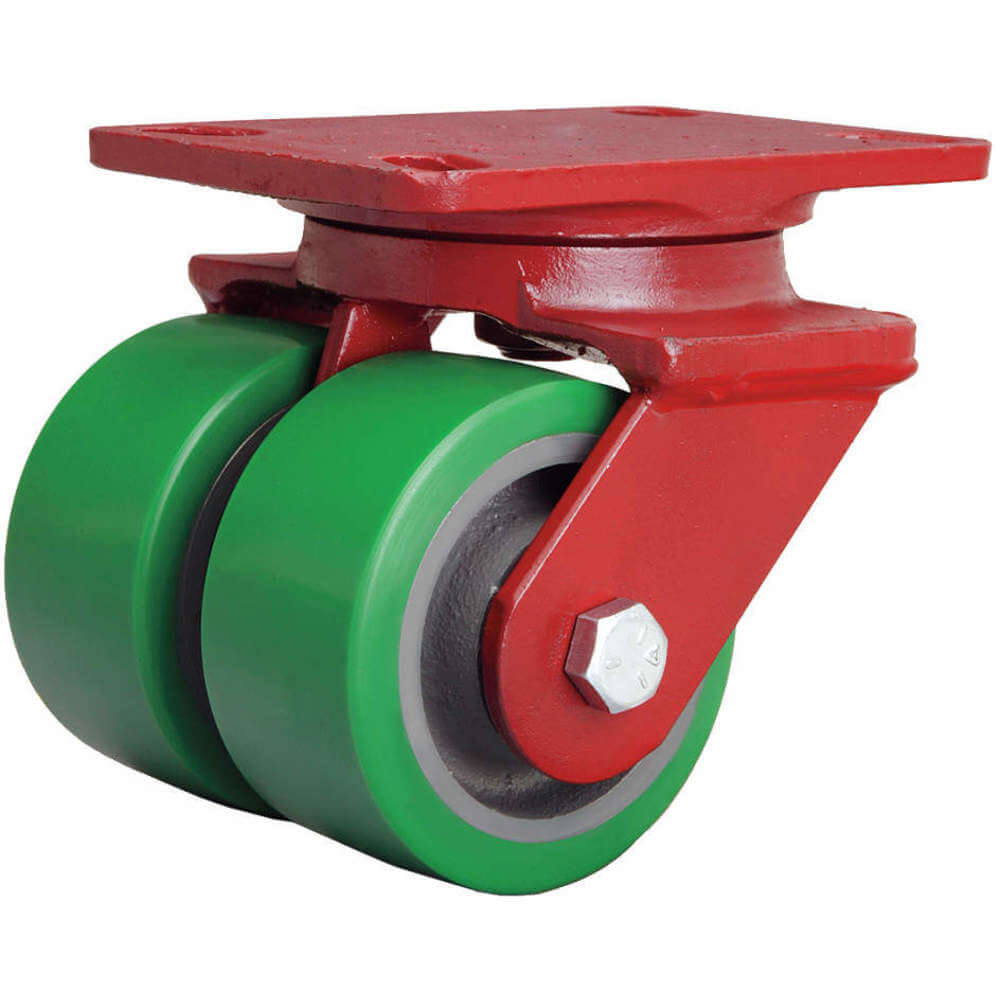

HAMILTON S-HS2-4DB Dual Wheel Swivel Caster 1500 Lb 4 Inch Pureth
1300 lbs.
4"
Swivel
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€491.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dual Wheel Swivel Caster |
| Abrasion Resistance | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 2 7/16" x 4 15/16" |
| Bolt Hole 2 | 3 3/8" x 5 1/4" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Color/finish | Crimson Powder |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Rig Type | Integral Forged Kingpin |
| Caster Shape | Standard |
| Caster Sub-type | Swivel |
| Caster Temp. Range | Yes |
| Caster Type | Swivel |
| Chemical Resistant | Medium |
| Core Color | Gray |
| Core Material | Cast Iron |
| Cushioning (resilience) | Medium |
| Durometer | 90 Shore A |
| Frame Finish | Enamel |
| Frame Material | Steel |
| High Temp. Range (f) | 200°F |
| Hole Pattern | A |
| Impact Resistance | Medium |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Capacity | 1300 lbs. |
| Load Capacity @ 3 Mph | 1300 lbs. |
| Load Rating | 1500 lbs. |
| Lock Type | No Lock Included |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 5 5/8" |
| Mounting Plate | 4 1/2" x 6 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Length | 6 1/2" |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| Mounting Plate Width | 4 1/2" |
| Mounting Type | Plate |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 2 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 5 5/8" |
| Plate Size | 4 1/2" x 6 1/2" |
| Plate Thickness | 0.313" |
| Plate Type | A |
| Raceway Type | Precision Ball |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | 4DU67, W-420-DB-1/2 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 1 3/4" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Double, Single Ball |
| Temp. Range | -40°F to +200°F |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Green |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 4" |
| Wheel Face | 2" |
| Wheel Material | Polyurethane |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
| Wheel Width | 2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 7.31 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 17.78 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Non-marking | Load Rating | Wheel Bearing Type | Caster Type | Frame Finish | Core Color | Inside Bolt Hole Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-HS2-4DB | 4" | Yes | 1500 lbs. | Precision Ball | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €434.59 | |
 |

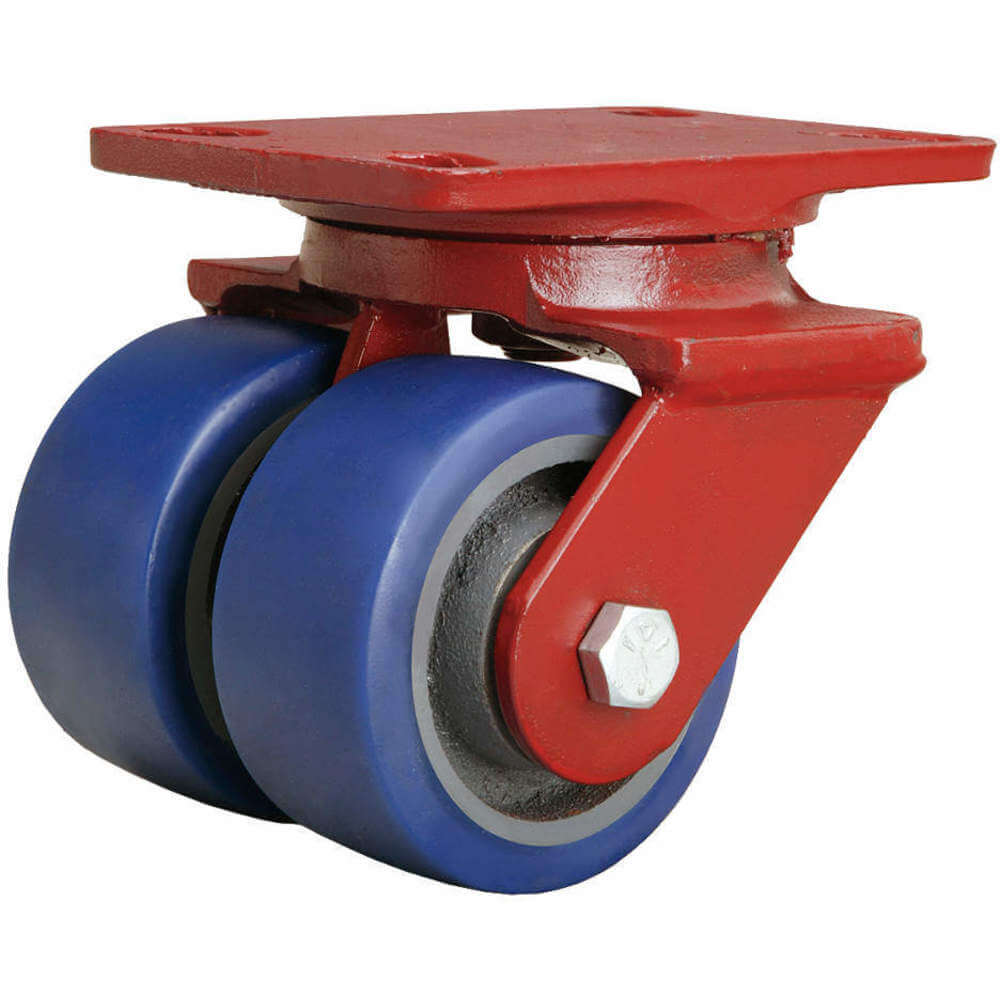

S-HS2-4SPB | 4" | Yes | 1200 lbs. | Precision Ball | Swivel | Enamel | Gray | 2 7/16" x 4 15/16" | €606.78 | |
 |

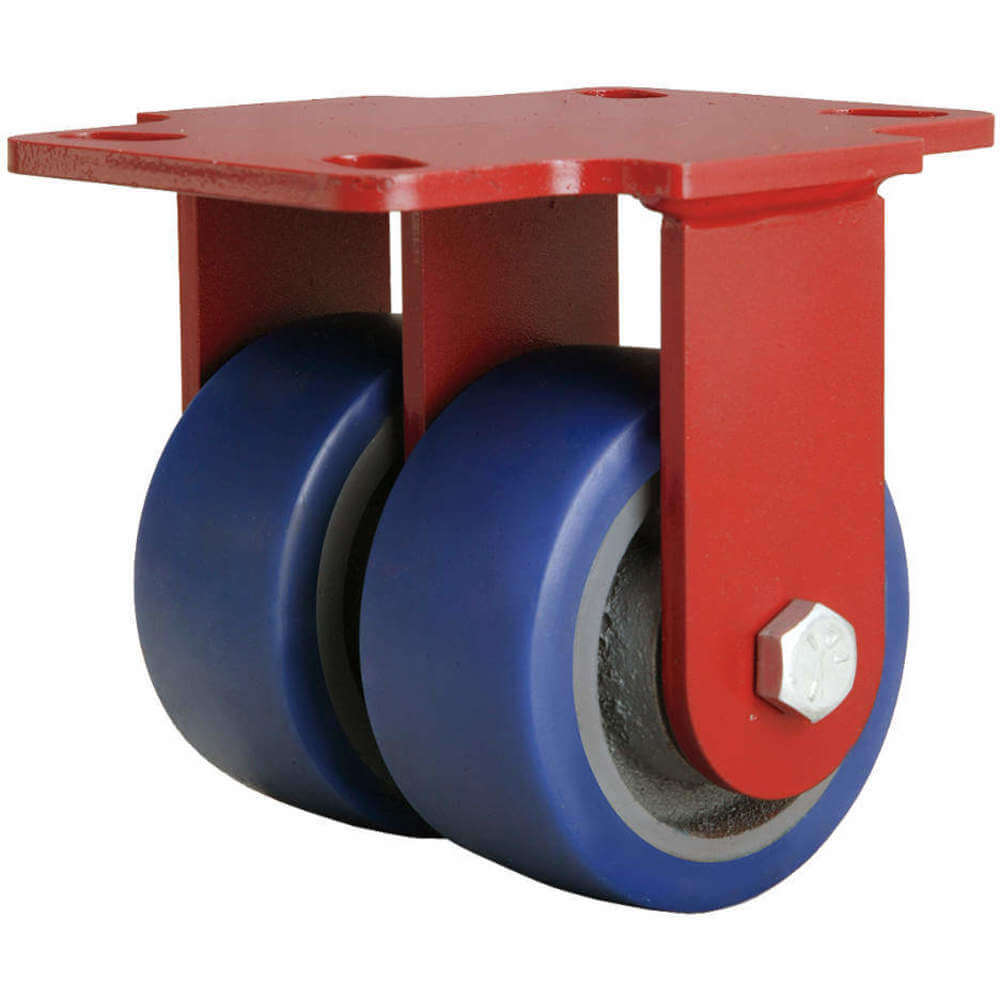

R-HS2-4SPB | 4" | Yes | 1200 lbs. | - | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €455.26 | |
 |

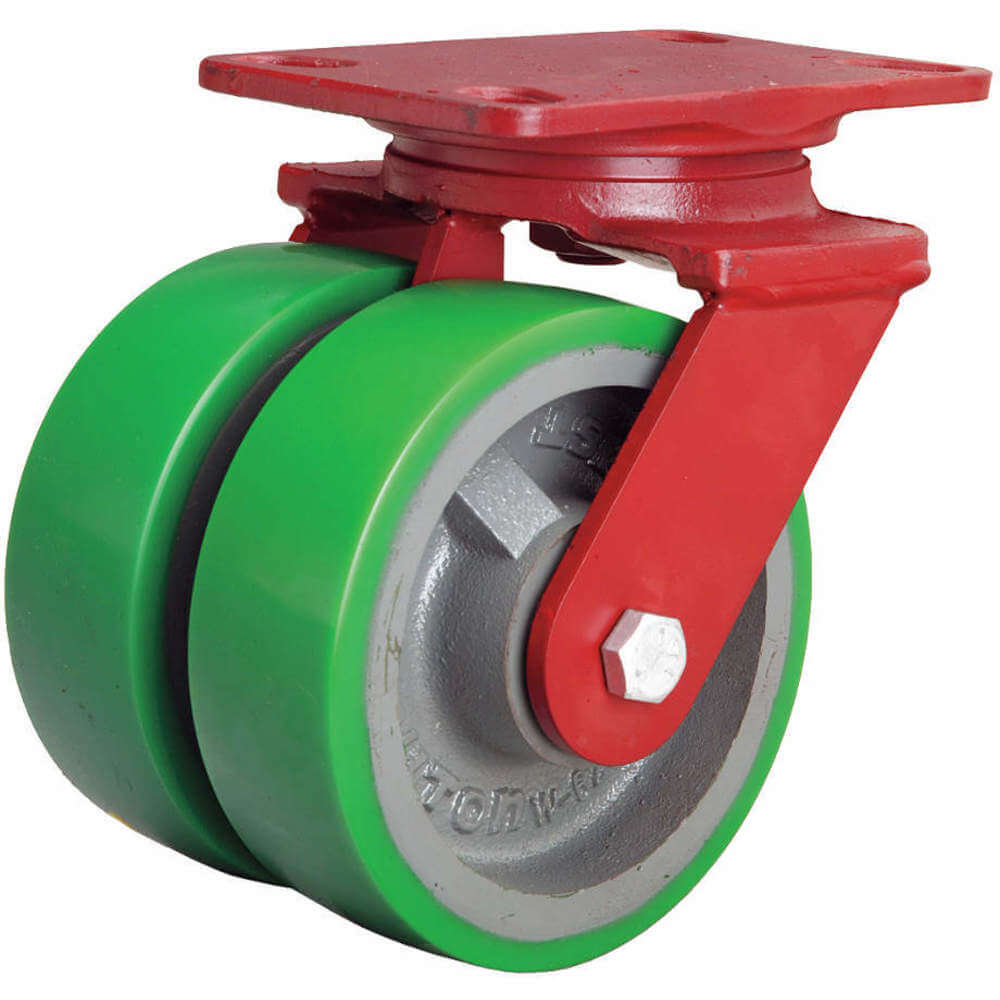

S-HS2-6DB | 6" | Yes | 2400 lbs. | Precision Ball | Swivel | Enamel | Gray | 2 7/16" x 4 15/16" | €580.24 | |
 |

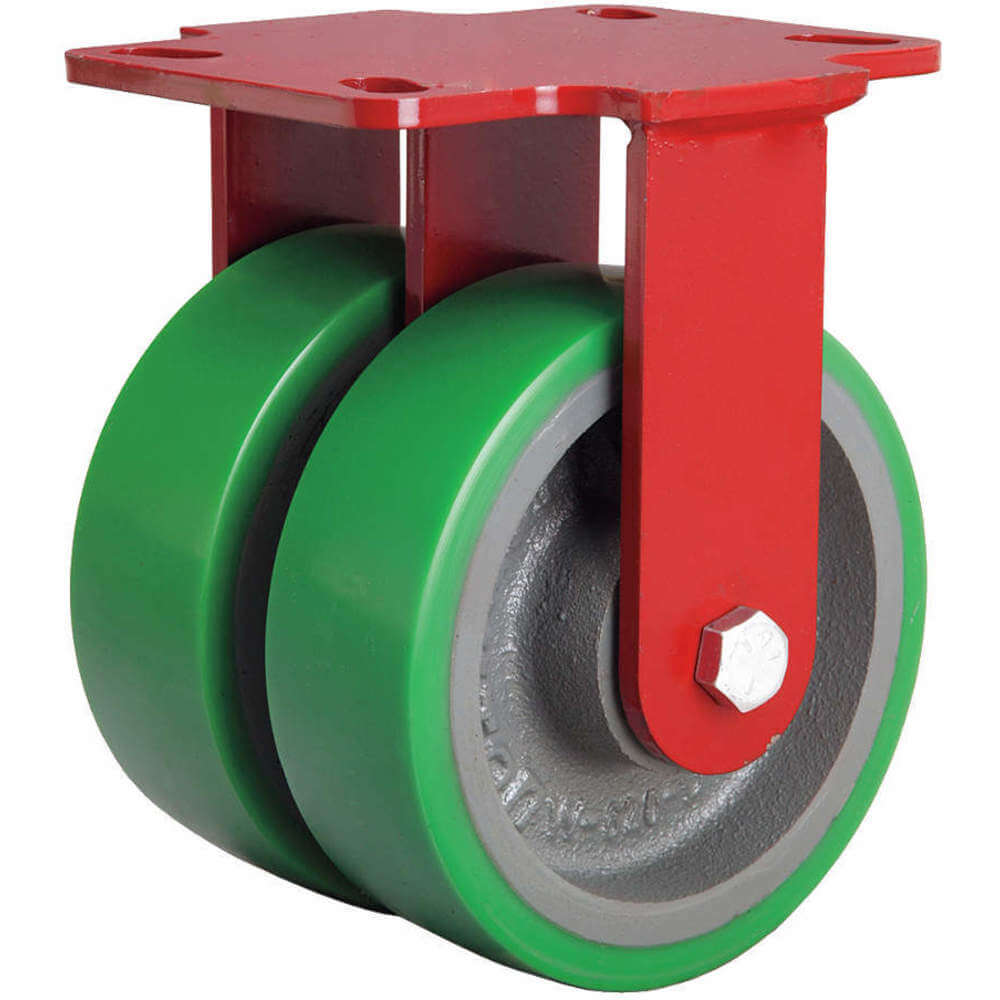

R-HS2-6DB | 6" | Yes | 2400 lbs. | Precision Ball | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €396.48 | |
 |
R-HS2-6SPB | 6" | Yes | 1920 lbs. | Precision Ball | Rigid | Enamel | Gray | 2 7/16" x 4 15/16" | €490.86 | |
 |

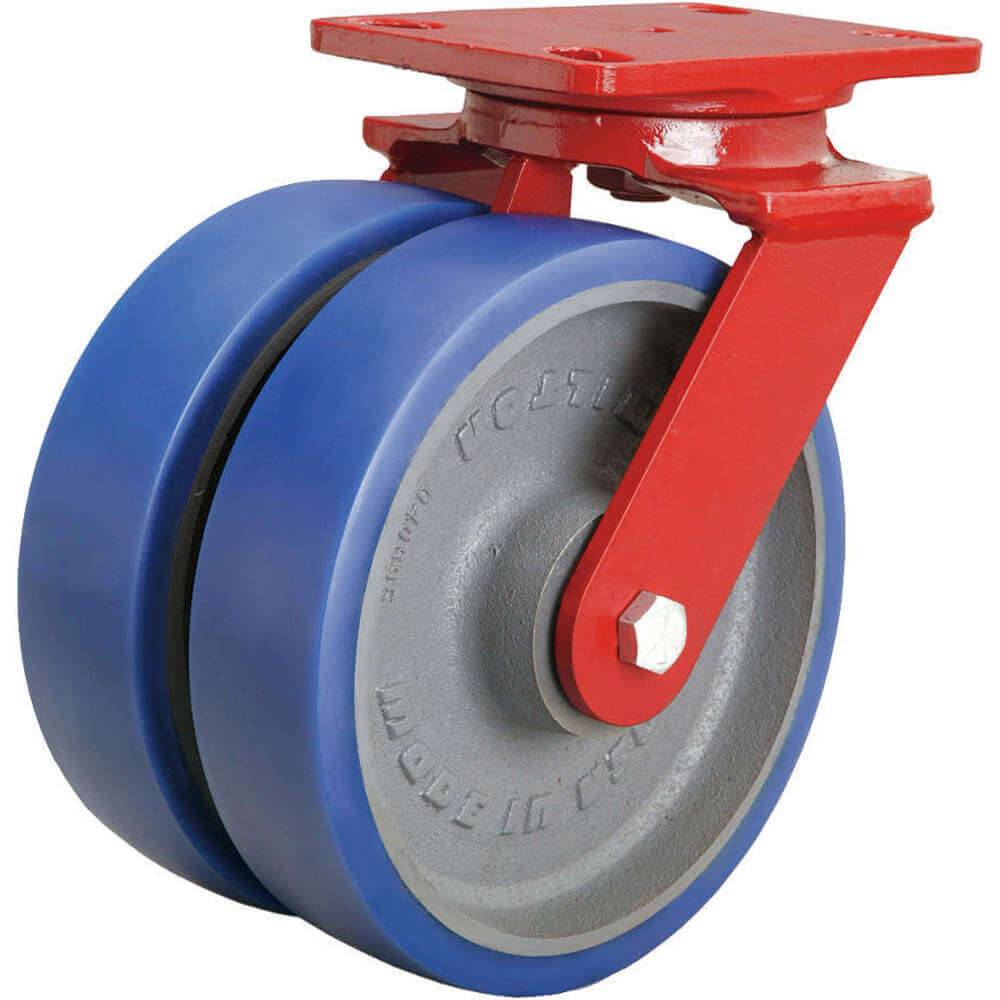

S-HS2-8SPB | 8" | Yes | 2000 lbs. | Precision Ball | Swivel | Enamel | Gray | 2 7/16" x 4 15/16" | €770.57 |
