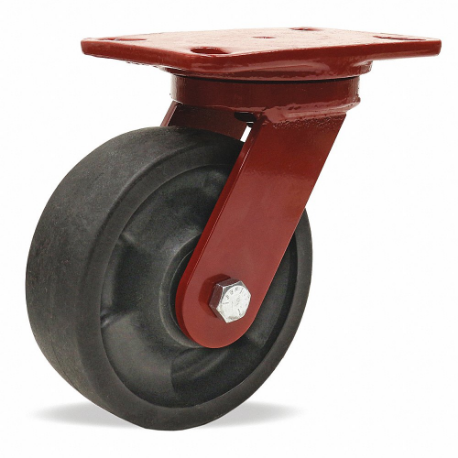

HAMILTON 154N26 Heat-Resistant Kingpinless Plate Caster, 6 Inch Dia, 7 3/4 Inch Height
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€241.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 1000 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 3/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Standards | Icwm |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Tread Material, Wheel Material | Nylon |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Nylon |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Wheel/tread Hardness | 78 Shore D |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-WHK-4HFSB-H4SL-FB | Swivel | B | 2 5/8" x 3 5/8" | 3" x 3" | 2" | Precision Ball | 560 lbs. | 4" x 5" | €692.87 | |
 |

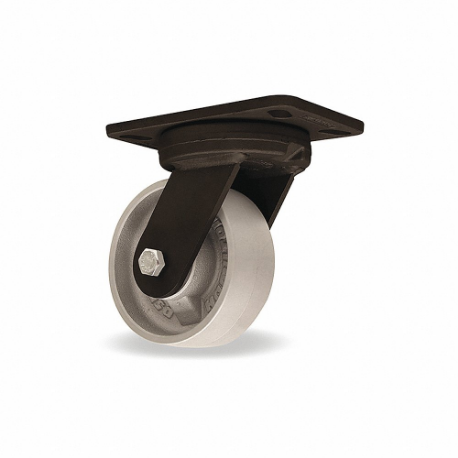

S-HSK-6HMB-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Precision Ball | 600 lbs. | 4 1/2" x 6 1/2" | €619.90 | |
|
S-HSK-6HNY-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Plain | 1000 lbs. | 4 1/2" x 6 1/2" | €465.09 | |
 |
154G40 | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Roller | 1000 lbs. | 4 1/2" x 6 1/2" | €176.22 | |
 |

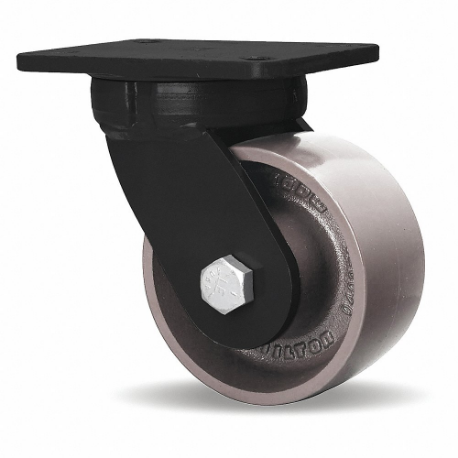

S-SECK-63HMB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 1000 lbs. | 5 1/4" x 7 1/4" | €1,178.28 | |
 |

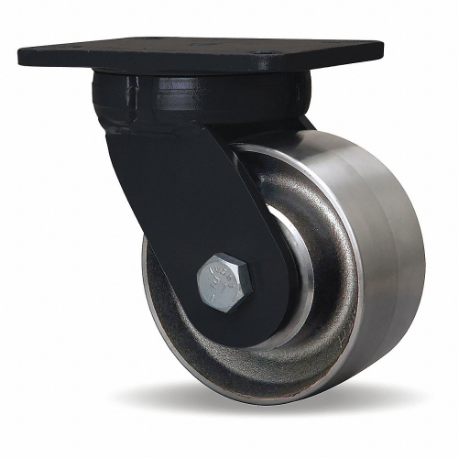

S-SECK-63HFSB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 2400 lbs. | 5 1/4" x 7 1/4" | €1,521.64 | |
 |

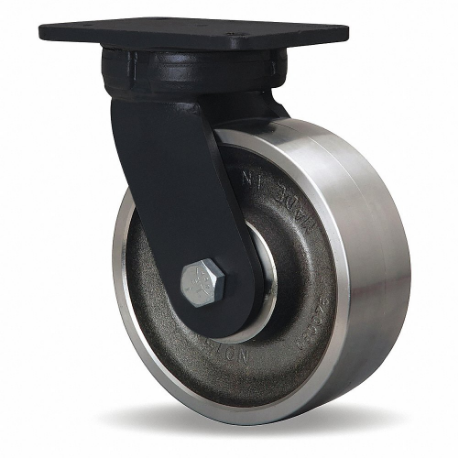

S-SECK-83HFSB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 2400 lbs. | 5 1/4" x 7 1/4" | €1,508.27 |
