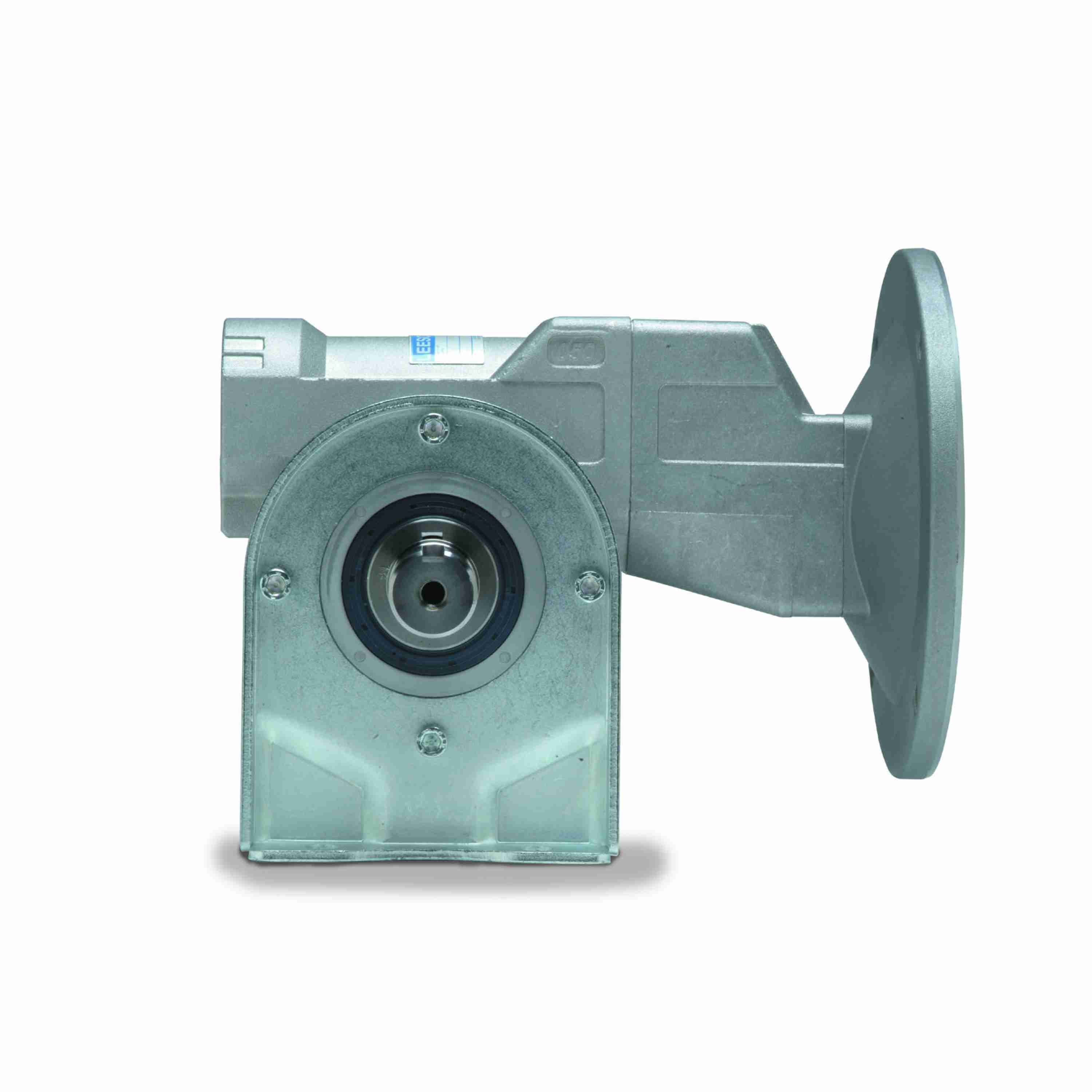

GROVE GEAR W5345021.00 DXTMQ534-422-L-56 Helical Reducer, 422:1 Ratio, Aluminum
Get it by Tuesday, Sep 1
€1,530.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 7.17 |
| Assembly | DXTMQ-L |
| B | 7.09 |
| C | 11.02" |
| Ce | 1.5 |
| Center Distance | 3.35" |
| D | 5.59 |
| F | 5.71 |
| Frame | 56C |
| Frame Size | 56C |
| G | 2.86 |
| Gear Type | Helical, Worm |
| H | 0.41" |
| Housing Construction | Aluminum |
| Housing Material | Aluminum |
| I | 3.86" |
| Input Hp | 0.373 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| J | 5.51" |
| K | 2 19/25" |
| Material | Aluminum |
| Max. Input Hp | 0.373 hp |
| N | 5.55 |
| No. Of Gear Reductions | 2 |
| O | 2 9/25" |
| Output Hp | 97/500 hp |
| Output Key Size | 3/8" x 2" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | L |
| Output Speed | 4.15 RPM |
| Output Torque | 2943 lbs.-in. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | DXTMQ |
| Rq | 7.42" |
| Series | Bravo Series |
| Series Type | Bravo 500 Worm Gear Reducers |
| T | 1.5 |
| V | 1/5" |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Housing Material | Output Torque | Output Hp | Max. Input Hp | Output Speed | Input Dia. | Input Keyway Size | Input Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W5342535.00 | - | - | - | - | - | - | - | - | €2,124.33 | RFQ
|
| W5345070.00 | - | - | - | - | - | - | - | - | €969.84 | RFQ
|
| W5340184.00 | Aluminum | 2212 lbs.-in. | 3 9/100 hp | 3 91/100 hp | 88 RPM | 1 1/8" | 3/8" x 2" | C Face Quill | €1,125.53 | |
| W5342374.00 | - | - | - | - | - | - | - | - | €1,172.43 | RFQ
|
| W5342074.00 | - | - | - | - | - | - | - | - | €2,174.50 | RFQ
|
| W5342533.00 | - | - | - | - | - | - | - | - | €1,219.18 | RFQ
|
| W5340016.00 | - | - | - | - | - | - | - | - | €923.84 | RFQ
|
