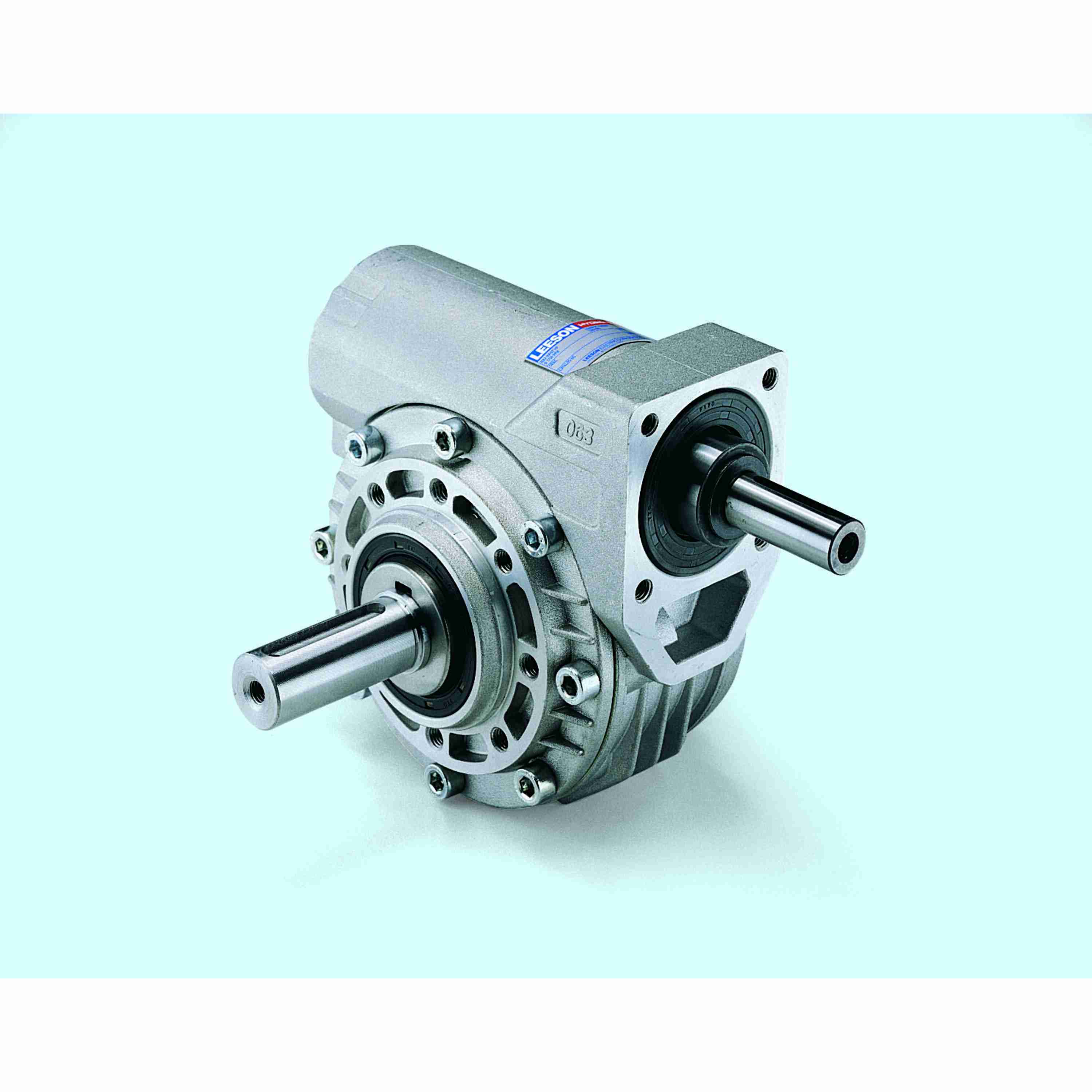

GROVE GEAR W5250001.00 B525-07-L Worm Reducer, 7:1 Ratio, 1.125 Inch O.D, Aluminum
Get it by Tuesday, Aug 25
€688.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | B-L |
| C | 6.69" |
| Center Distance | 2 12/25" |
| D | 2.76 |
| F | 1.77 |
| G | 0.19 |
| Gear Type | Worm |
| Housing Material | Aluminum |
| I | 3.11" |
| Input Bore (c Face) | 3/4" |
| Input Hp | 5 6/25 hp |
| Input Keyway Size | 1/4" x 2" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| M | 2.24 |
| Material | Aluminum |
| Max. Input Hp | 5 6/25 hp |
| Mounting Type | Base |
| N | 4.85 |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/8" |
| Output Hp | 4 7/20 hp |
| Output Key Size | 1/4" x 2" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 250 RPM |
| Output Style | L |
| Output Torque | 1097 lbs.-in. |
| Overhung Load | 405 lbs. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | Bravo Series |
| Series Style | B-L |
| Series Type | Bravo 500 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Nitrile |
| T | 1.125 |
| U | 3/4" |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Output Dia. | Output Torque | Housing Material | Input Dia. | Output Hp | Max. Input Hp | Output Speed | Input Keyway Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W5250117.00 | 1 1/8" | 1281 lbs.-in. | Aluminum | 5/8" | 1 hp | 1 23/50 hp | 49 RPM | 1/4" x 2" | €599.96 | |
| W5250200.MV | - | - | - | - | - | - | - | - | €938.45 | RFQ
|
| W5250032.00 | - | - | - | - | - | - | - | - | €551.33 | RFQ
|
| W5250119.00 | 1 1/8" | 1069 lbs.-in. | Aluminum | 5/8" | 11/25 hp | 73/100 hp | 26.1 RPM | 1/4" x 2" | €977.76 | |
| W5250188.MV | - | - | - | - | - | - | - | - | €938.45 | RFQ
|
| W5255099.00 | - | - | - | - | - | - | - | - | €1,468.67 | RFQ
|
| W5250099.00 | - | - | - | - | - | - | - | - | €546.89 | RFQ
|
