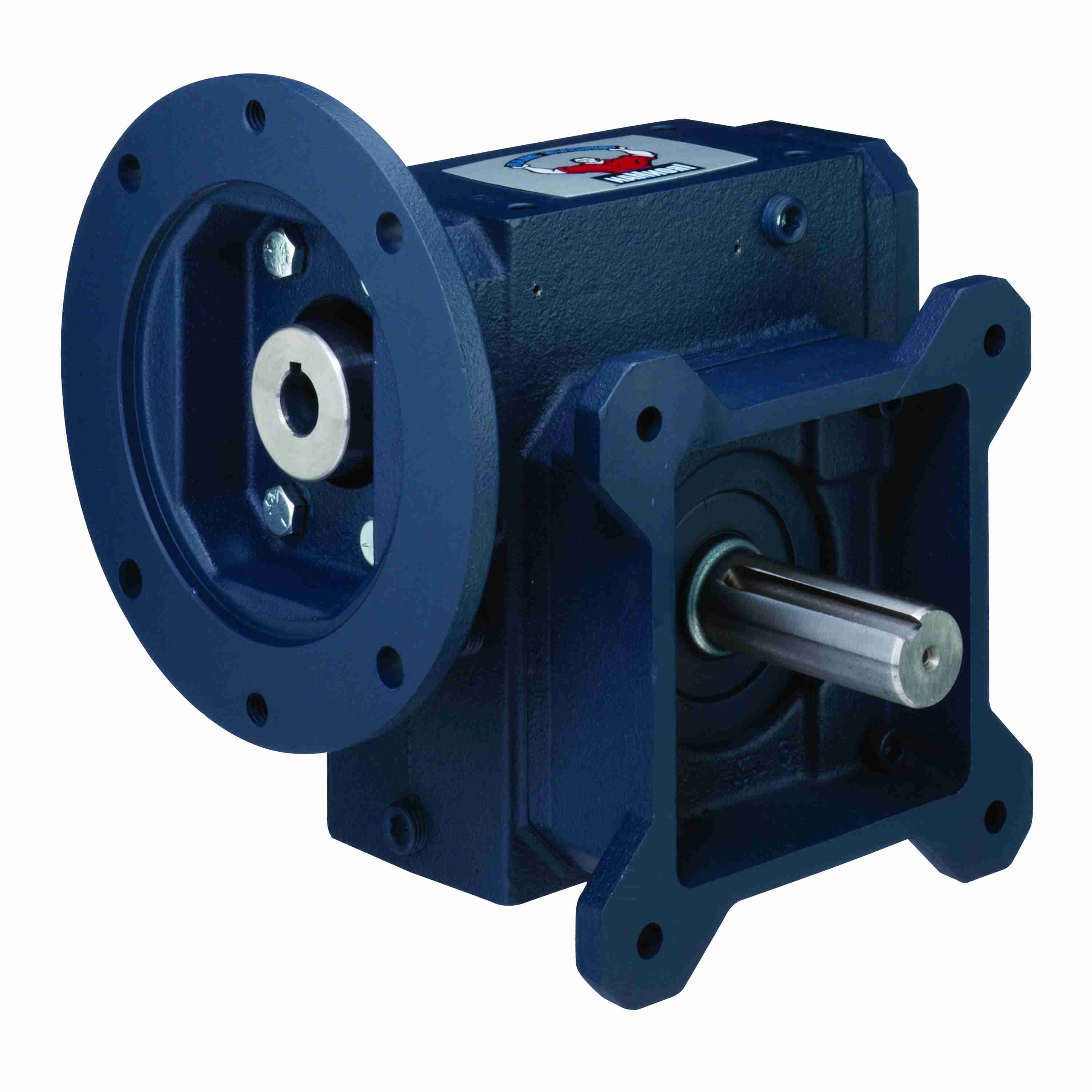

GROVE GEAR NH8215070.00 NH-FMQ821-40-RR-56 Worm Reducer, 40:1 Ratio, 0.625 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Tuesday, Aug 18
€759.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aj | 5.88 |
| Assembly | FMQ |
| Be | 0.38" |
| Bf | 0.41 |
| C | 6" |
| Center Distance | 2.06" |
| D | 2.31 |
| Frame | 56C |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| I | 3.61" |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Hp | 0.916 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Lq | 4.46" |
| Max. Input Hp | 0.916 hp |
| N | 4.34 |
| No. Of Gear Reductions | 1 |
| Output Dia. | 7/8" |
| Output Hp | 0.674 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | RR |
| Output Shaft Orientation | RR |
| Output Speed | 43 RPM |
| Output Style | RR |
| Output Torque | 971 lbs.-in. |
| Overhung Load | 775 lbs. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 4.06" |
| Series | NH Series |
| Series Style | NH-FMQ-RR |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| T | 0.875 |
| X | 6 1/4" |
| Y | 5 14/25" |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Hp | Output Speed | Output Torque | Max. Input Hp | Housing Material | Output Dia. | Input Dia. | Input Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NH8215047.00 | 61/500 hp | 17 RPM | 439 lbs.-in. | 0.217 hp | Cast Iron | 7/8" | 5/8" | 1750 RPM | €759.69 |
