GROVE GEAR GRL8320190.00 Worm Reducer, 40:1 Ratio, 1.125 Inch I.D, 1.375 Inch O.D, Cast Iron | AX9MVU GRL-BMQ832-40-D-180

GROVE GEAR GRL8320190.00 GRL-BMQ832-40-D-180 Right Angle Gear Reducer, 40 to 1 Reduction Ratio, 43 RPM Output, 3303 lb-in Torque, Dual Shaft Output

Item: AX9MVUModel: GRL8320190.00Cross Ref: GRL-BMQ832-40-D-180
Check Availability
In Stock
Ratio

Get it by Tuesday, Aug 25

€2,655.47 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.75
Aj 7.25
Ak 8.5
Application General Purpose
Assembly BMQ-D
B 8.5
Be1 1/2"
Bf 0.53
C 9.38"
Center Distance 3 1/4"
Frame 180TC
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
I 5.02"
Input Bore (c Face) 1 1/8"
Input Bore Size 1 1/8"
Input Dia. 1 1/8"
Input Hp 2.926 hp
Input Hp @ 1750 Rpm 2.926 hp
Input Keyway Size (c Face) 1/4" x 1/8"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
J 7 1/2"
K 3 3/4"
Lq1 6.34"
Material Cast Iron
Max. Input Hp 2 463/500 hp , 2.926 hp
Max. Ohl (output Shaft) 2275
Max. Thrust Load (output Shaft) 2574
Mounting Type Base
N 7.06
No. Of Gear Reductions 1
O 3.66"
Output Dia. 1 3/8"
Output Hp 2.293 hp
Output Key Size 5/16" x 2.63"
Output Shaft Solid Shaft
Output Shaft Assembly Code D
Output Shaft Dia 1.375
Output Shaft Dia. 1 3/8"
Output Shaft Direction Double
Output Shaft Orientation LR
Output Shaft Thrust Rating 2574
Output Shaft Type Double Shaft
Output Speed 43 RPM
Output Style D
Output Torque 3303 lbs.-in.
Output Type Solid Shaft
Overhung Load 2275 lbs.
Overhung Load Rating 2275 lbs.
Paint/coating Blue
Product Line GRL Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Rq 5.81"
Series GRL Series
Series Style GRL-BMQ-D
Service Factor 1
Shaft Seal Material Viton
Speed 43 RPM
T 1.375
Tap Depth 22/25"
Tap Size 7/16"-14
Thread Type Coarse
Torque (lb-in)@1750rpm 3303

Shipping Info:

Ship weight (kg) 33.75
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Product Variants

ProductModelOutput SpeedMax. Input HpOutput HpInput Dia.Output TorqueInput Bore SizeSpeedInput StylePrice
GROVE GEAR GRL8320164.00 Worm Reducer, 25:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX8EJP GRL-BMQ832-25-D-140 GRL8320164.0070 RPM4 373/1000 hp3.732 hp--7/8"70 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320166.00 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX9LWH GRL-BMQ832-40-D-140 GRL8320166.0043.75 RPM2 463/500 hp2.293 hp--7/8"43 RPMC-Face Quill€2,618.56
GROVE GEAR GRL8320286.00 Worm Reducer, 7.5:1 Ratio, 1.125 Inch I.D, 1.375 Inch O.D, Cast Iron | AY2WVG GRL-BMQ832-7.5-D-180 GRL8320286.00233.3 RPM8 863/1000 hp---1 1/8"233.3 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320141.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1.375 Inch O.D, Cast Iron | AY3ULV GRL-BMQ832-30-D-56 GRL8320141.0058.3 RPM3 619/1000 hp2.986 hp--5/8"58 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320264.00 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 1.375 Inch O.D, Cast Iron | AY6AXZ GRL-BMQ832-100-D-56 GRL8320264.0017.5 RPM691/1000 hp---5/8"17 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320137.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1.375 Inch O.D, Cast Iron | AY6CMP GRL-BMQ832-10-D-56 GRL8320137.00175 RPM8 23/250 hp7.497 hp5/8"2700 lbs.-in.5/8"175 RPMC Face Quill€2,655.47

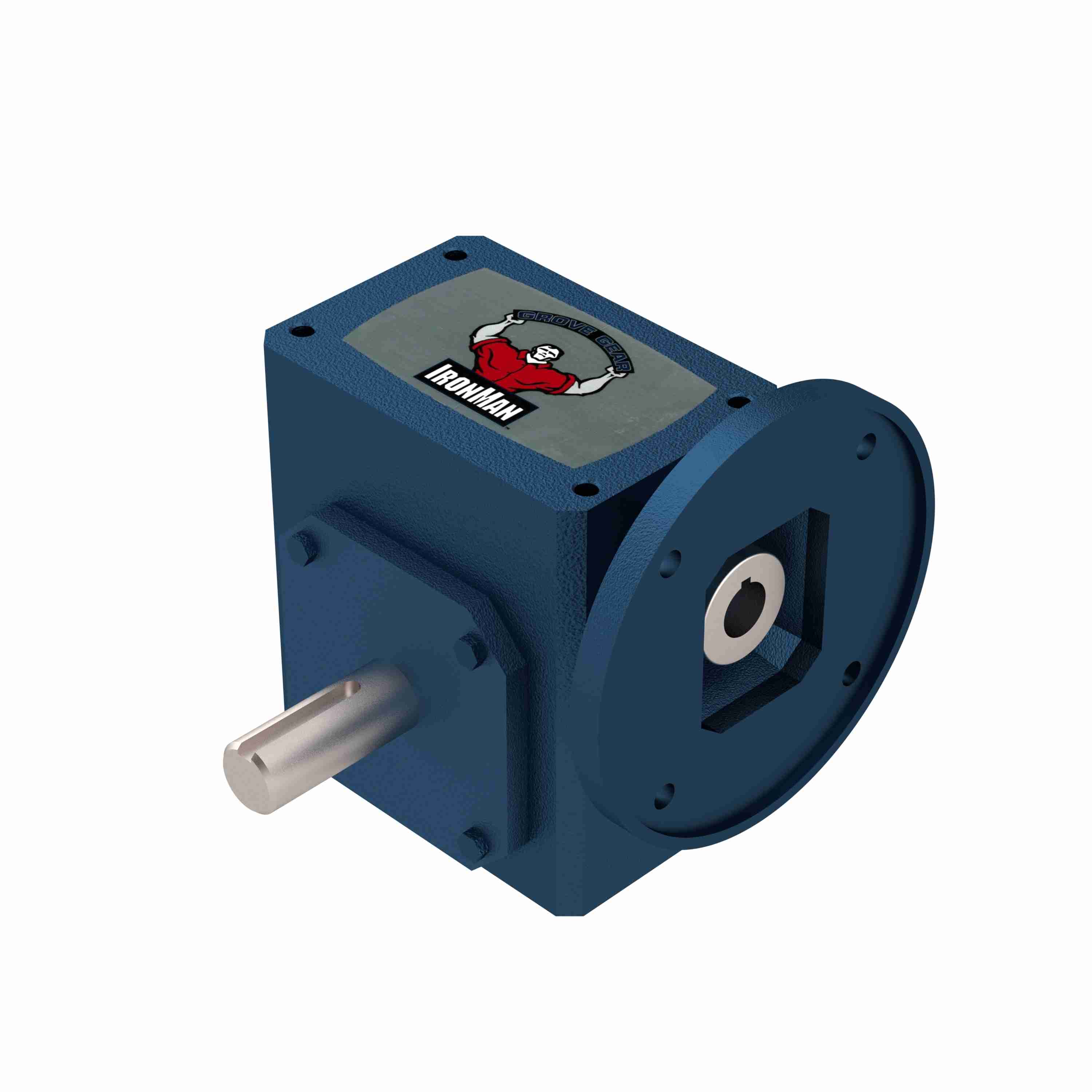

GROVE GEAR GRL8320187.00 Worm Reducer, 20:1 Ratio, 1.125 Inch I.D, 1.375 Inch O.D, Cast Iron | AY6LLG GRL-BMQ832-20-D-180 GRL8320187.0087.5 RPM5 9/50 hp4.536 hp1 1/8"-1 1/8"87 RPMC Face Quill€2,210.88
