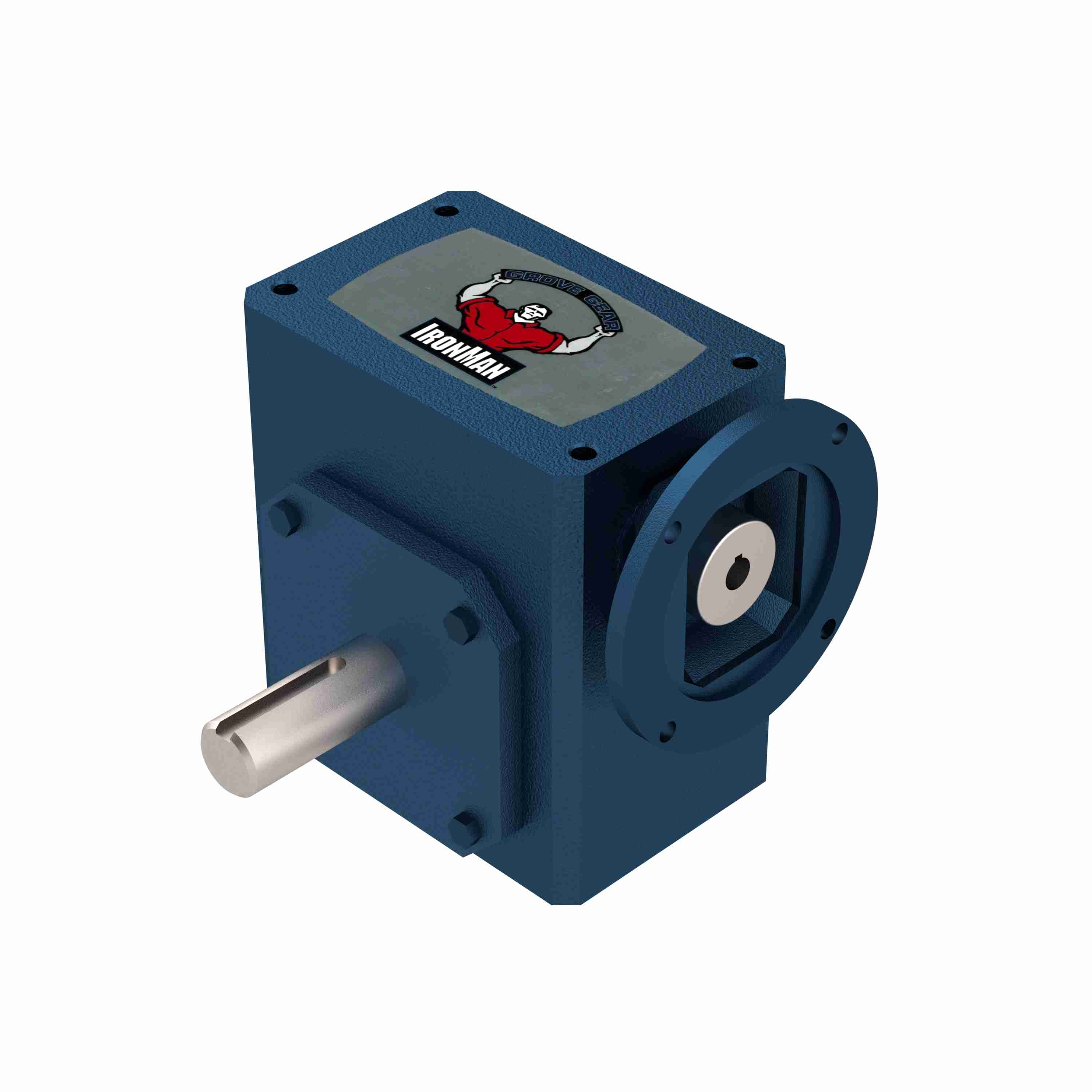

GROVE GEAR GRL8320144.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.375 Inch O.D, Cast Iron | AY7MPG GRL-BMQ832-60-D-56

GROVE GEAR GRL8320144.00 GRL-BMQ832-60-D-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 3274 lb-in Torque, Dual Shaft Output

Item: AY7MPGModel: GRL8320144.00Cross Ref: GRL-BMQ832-60-D-56
Check Availability
In Stock
Ratio

Get it by Tuesday, Aug 25

€2,210.88 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.75
Aj 5.88
Application General Purpose
B 8.5
Be 0.38"
Bf 0.41
C 9.38"
Case Material Cast Iron
Center Distance 3 1/4"
Family Name Cast Iron Housing Material Worm Gear Reducers
Frame 56
Frame Size 56C
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Hp 2.11 hp
I 5.02"
Input Bore (c Face) 0.625
Input Bore Size 5/8"
Input Flange 56C
Input Style C-Face Quill
J 7 1/2"
K 3 3/4"
Lq 6.14"
Material Cast Iron
Max. Hp 2 11/100 hp
Max. Input Hp 2 57/500 hp
Max. Ohl (output Shaft) 2275
Max. Overhung Load 2275 lbs.
Max. Thrust Load (output Shaft) 2574
N 7.06
No. Of Gear Reductions Single
O 3.66"
Output Hp 1.515 hp
Output Shaft Solid Shaft
Output Shaft Dia 1.375
Output Shaft Dia. 1 3/8"
Output Shaft Direction Double
Output Shaft Thrust Rating 2574
Output Shaft Type Double Shaft
Output Speed 29.2 RPM
Output Style D
Output Type Double Shaft
Overhung Load Rating 2275 lbs.
Paint/coating Blue
Product Line GRL Series - Ironman Worm Gear Reducers
Ratio 60:1
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Rq 5.51"
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1 1.06 SF @ 2 HP
Service Factor 2 1.41 SF @ 1 1/2 HP
Service Factor 3 2.11 SF @ 1 HP
Shaft Seal Material Viton
Speed 29 RPM
T 1.375
Tap Depth 22/25"
Torque 3274 lbs.-in.
Torque (lb-in)@1750rpm 3274

Shipping Info:

Ship weight (kg) 33.75
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Product Variants

ProductModelOutput SpeedMax. Input HpOutput HpInput Dia.Output TorqueInput Bore SizeSpeedInput StylePrice
GROVE GEAR GRL8320164.00 Worm Reducer, 25:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX8EJP GRL-BMQ832-25-D-140 GRL8320164.0070 RPM4 373/1000 hp3.732 hp--7/8"70 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320166.00 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX9LWH GRL-BMQ832-40-D-140 GRL8320166.0043.75 RPM2 463/500 hp2.293 hp--7/8"43 RPMC-Face Quill€2,618.56
GROVE GEAR GRL8320190.00 Worm Reducer, 40:1 Ratio, 1.125 Inch I.D, 1.375 Inch O.D, Cast Iron | AX9MVU GRL-BMQ832-40-D-180 GRL8320190.0043 RPM2.926 hp2.293 hp1 1/8"3303 lbs.-in.1 1/8"43 RPMC Face Quill€2,655.47
GROVE GEAR GRL8320286.00 Worm Reducer, 7.5:1 Ratio, 1.125 Inch I.D, 1.375 Inch O.D, Cast Iron | AY2WVG GRL-BMQ832-7.5-D-180 GRL8320286.00233.3 RPM8 863/1000 hp---1 1/8"233.3 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320141.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1.375 Inch O.D, Cast Iron | AY3ULV GRL-BMQ832-30-D-56 GRL8320141.0058.3 RPM3 619/1000 hp2.986 hp--5/8"58 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320264.00 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 1.375 Inch O.D, Cast Iron | AY6AXZ GRL-BMQ832-100-D-56 GRL8320264.0017.5 RPM691/1000 hp---5/8"17 RPMC-Face Quill€2,655.47
GROVE GEAR GRL8320137.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1.375 Inch O.D, Cast Iron | AY6CMP GRL-BMQ832-10-D-56 GRL8320137.00175 RPM8 23/250 hp7.497 hp5/8"2700 lbs.-in.5/8"175 RPMC Face Quill€2,655.47
