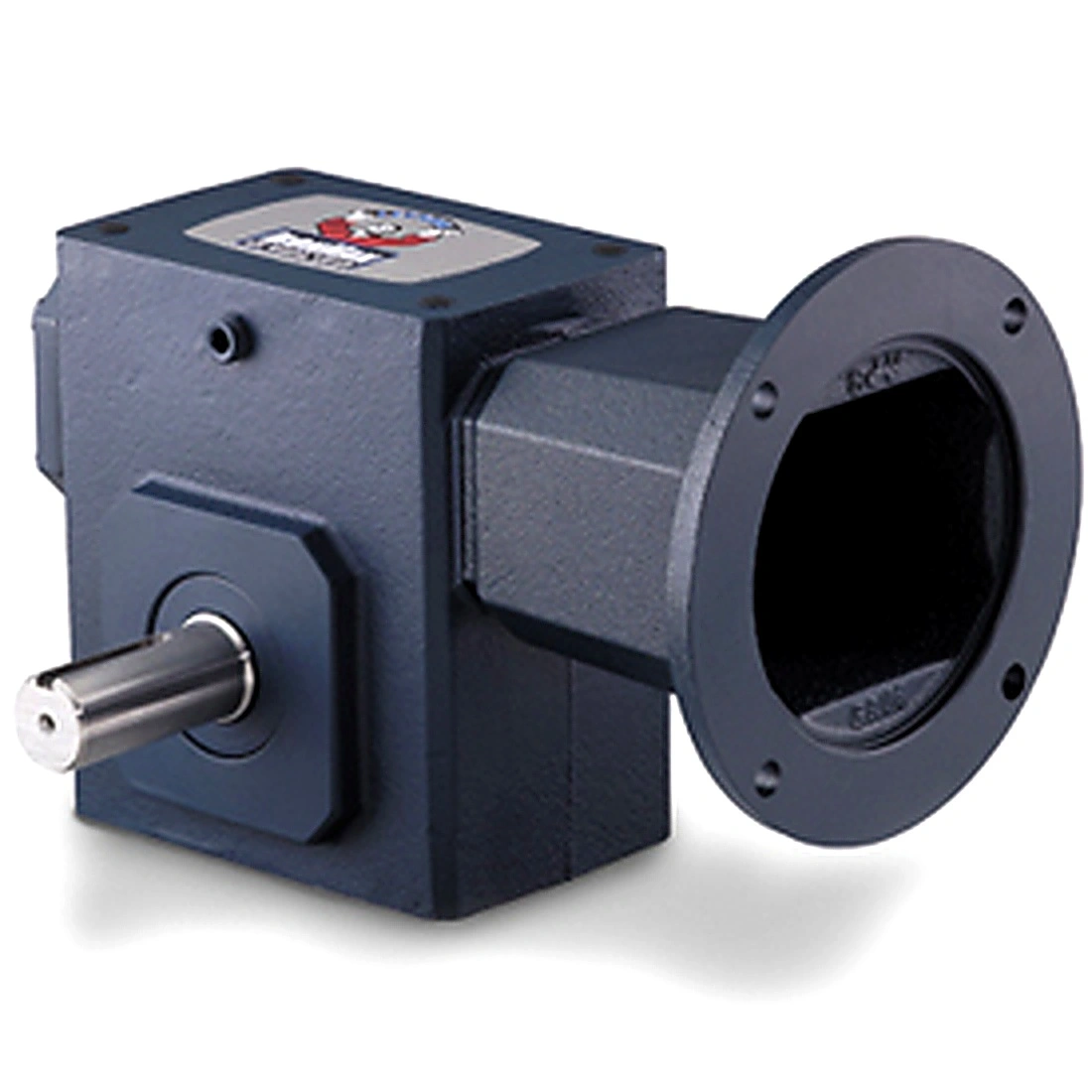

GROVE GEAR GRL8320052.00 GRL-BM832-25-L-140 Right Angle Gear Reducer, 25 to 1 Reduction Ratio, 70 RPM Output, 3360 lb-in Torque, H1 Left Output
Get it by Monday, Aug 17
€2,558.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Center Distance | 3 1/4" |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Input Bore (c Face) | 0.875 |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 4.373 hp |
| Input Hp @ 1750 Rpm | 4.373 hp |
| Input Type | C-Face Coupled |
| Material | Cast Iron |
| Max. Input Hp | 4 373/1000 hp |
| Max. Ohl (output Shaft) | 2275 |
| Max. Thrust Load (output Shaft) | 2574 |
| No. Of Gear Reductions | Single |
| Output | Left |
| Output Dia. | 1 3/8" |
| Output Hp | 3.732 hp |
| Output Shaft Dia | 1.375 |
| Output Shaft Dia. | 1 3/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Type | Solid Shaft |
| Paint/coating | Blue |
| Product Line | GRL Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Shaft Seal Material | Viton |
| Speed | 70 RPM |
| Torque (lb-in)@1750rpm | 3360 |
Shipping Info:
| Ship weight (kg) | 34.2 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Model | Output Speed | Output Hp | Output Torque | Max. Input Hp | Output Dia. | Input Dia. | Paint/coating | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRL8320307.00 | 58 RPM | 2.986 hp | 3226 lbs.-in. | 3.619 hp | 1 3/8" | 1 3/8" | Blue | Worm | €2,558.79 | |
| GRL8320047.00 | 35 RPM | 1.841 hp | 3315 lbs.-in. | 2.462 hp | 1 3/8" | 7/8" | Blue | Worm | €2,655.47 | |
| GRL8320309.00 | 35 RPM | 1.841 hp | 3315 lbs.-in. | 2.462 hp | 1 3/8" | 1 3/8" | Blue | Worm | €2,558.79 | |
| GRL8320025.00 | 175 RPM | 7.497 hp | 2700 lbs.-in. | 8 23/250 hp | 1 3/8" | 7/8" | Blue | Worm | €2,558.79 | |
| GRL8320046.00 | 43 RPM | 2.293 hp | 3303 lbs.-in. | 2.926 hp | 1 3/8" | 7/8" | Blue | Worm | €2,655.47 | |
| GRL8320086.00 | 43 RPM | - | 3303 lbs.-in. | - | 1 3/8" | 7/8" | - | Worm | €1,386.53 | |
| GRL8320191.00 | 35 RPM | - | 3315 lbs.-in. | - | 1 3/8" | - | - | Worm | €1,440.79 |
