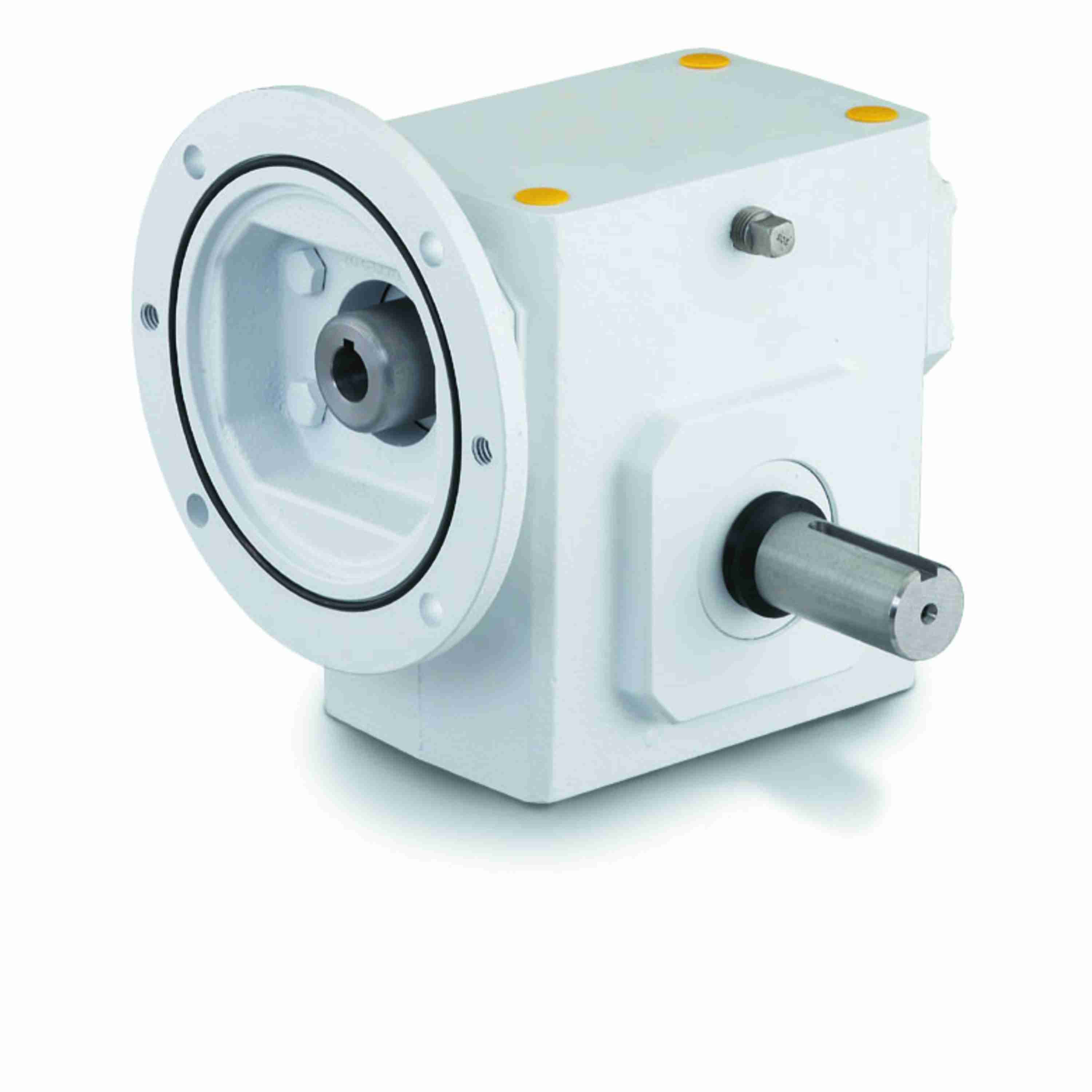

GROVE GEAR GRL8263051.00 GRL-WBMQ826-10-R-140 Right Angle Gear Reducer, 10 to 1 Reduction Ratio, 175 RPM Output, 1475 lb-in Torque, Epoxy Washdown
Get it by Tuesday, Aug 18
€2,091.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 4.84 |
| Aj | 5.88 |
| Application | Epoxy Washdown |
| Assembly | WBMQ-R |
| B | 7.12 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 8" |
| Center Distance | 2.63" |
| D | 2.94 |
| F | 3.38 |
| Frame | 140TC |
| G | 1.69 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| I | 4.34" |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 4.492 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 6.38" |
| K | 3.19" |
| Key Way Size | 3/16" x 3/32" |
| Lq | 5.19" |
| Material | Cast Iron |
| Max. Input Hp | 4 123/250 hp , 4.492 hp |
| Mounting Type | Base |
| N | 5.63 |
| No. Of Gear Reductions | 1 |
| O | 2.73" |
| Output | Right |
| Output Dia. | 1 1/8" |
| Output Hp | 4.097 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia | 1.125 |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 175 RPM |
| Output Style | R |
| Output Torque | 1475 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1625 lbs. |
| Paint/coating | White Epoxy |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 4.82" |
| Series | GR Series |
| Series Style | GRL-WBMQ-R |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 175 RPM |
| T | 1.125 |
| Tap Depth | 0.69" |
| Tap Size | 3/8"-16 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 1475 |
| Width | 12.25 |
Shipping Info:
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Output Speed | Output Hp | Max. Input Hp | Output Torque | Output Dia. | Input Dia. | Paint/coating | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GRL8260151.00 | 58.3 RPM | 1.743 hp | 2 29/200 hp | - | - | - | Blue | Left | €1,604.39 | |
 |
GRL8265549.00 | 116.7 RPM | 3.216 hp | - | 1737 lbs.-in. | - | - | Blue | Left | €835.53 | RFQ
|
|
GRL8262015.00 | - | - | - | - | - | - | Blue | Right | €1,101.19 | RFQ
|
|
GRL8265550.00 | - | - | - | - | - | - | Blue | Right | €903.80 | RFQ
|
|
GRL8260242.00 | 233.3 RPM | 4.571 hp | 4 239/250 hp | - | - | - | Blue | - | €1,863.65 | |
 |
GRL8263010.00 | - | 0.835 hp | 1.216 hp | - | 1 1/8" | 5/8" | White Epoxy | Left | €2,091.11 | |
|
GRL8264054.00 | - | - | - | - | - | - | Blue | Left/Right | €1,338.64 | RFQ
|
