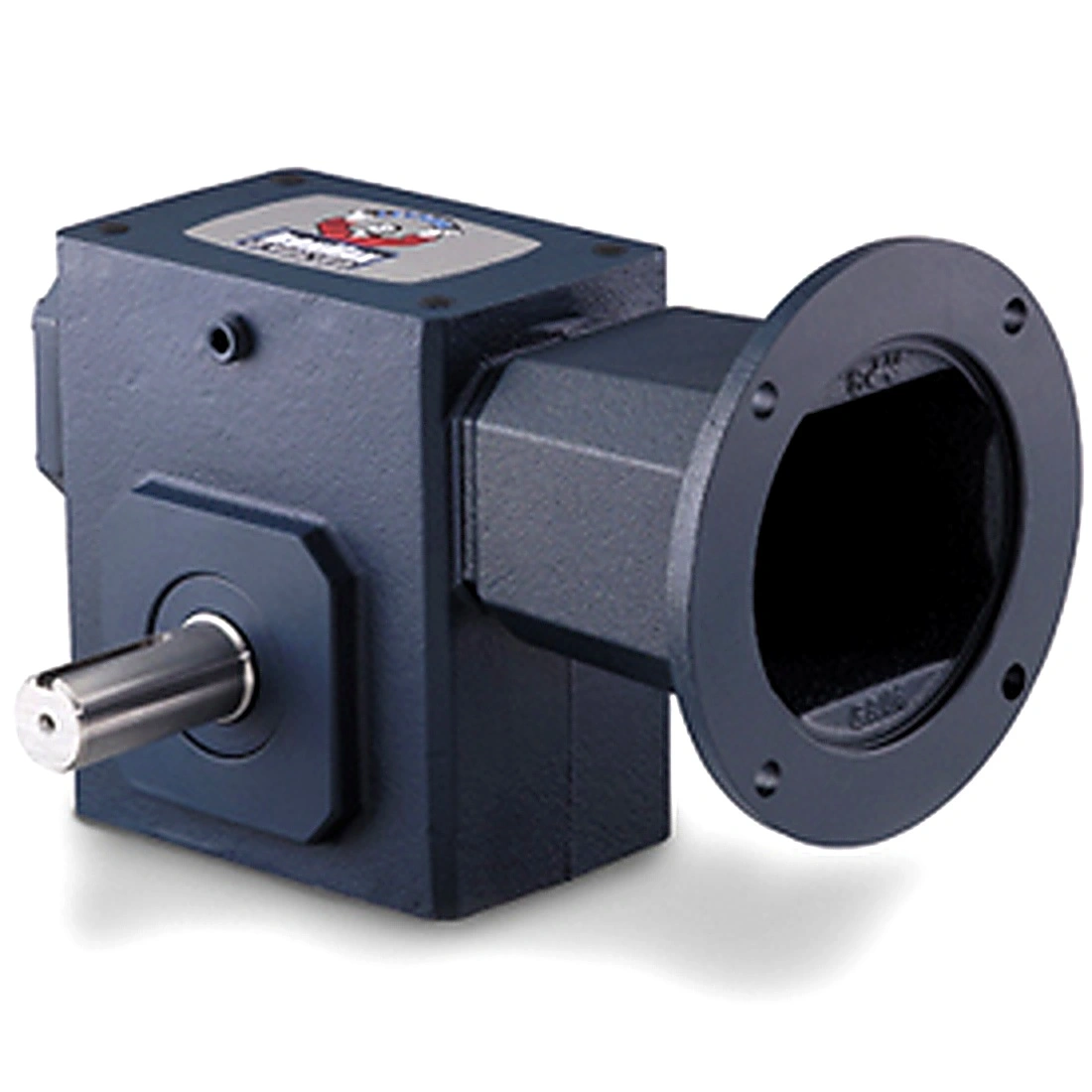

GROVE GEAR GRL8260110.00 GRL-BM826-7.5-L-180 Right Angle Gear Reducer, 7.5 to 1 Ratio, 1.125 Inch Left Output Shaft, 182-4TC NEMA Input, 233 RPM Output

Item: AY4ZJUModel: GRL8260110.00Cross Ref: GRL-BM826-7.5-L-180
Check Availability
In Stock

Get it by Friday, Jul 17

€999.21 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 4.84
Aj 7.25
Ak 8.5
Application General Purpose
Assembly BM-L
B 7.12
Bd 9
Be1 1/2"
Bf 0.53
C 8"
Center Distance 2.63"
D 2.94
F 3.38
Frame 180
G 1.69
Gear Type Worm
H-tap Size 3/8"-16
H-tap Type UNC
Housing Material Cast Iron
I 4.34"
Input Dia. 3/4"
Input Hp @ 1750 Rpm 4.956 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 6.38"
K 3.19"
L 6.07"
L1 9 8/25"
Max. Input Hp @ 1750 3 hp
Motor Frame Size 180
Mount Footprint 3.38 x 6.38
Mount Style BM
N 5.63
Nema Input Mounting 182-4TC
No. Of Gear Reductions 1 , Single
O 2.73"
Output Config H1 Left
Output Dia. 1 1/8"
Output Key 1/4 x 1.75
Output Key Size 1/4" x 1 3/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1.125
Output Shaft Direction Left
Output Shaft Thrust Rating 1609
Output Speed 233 , 233 RPM
Output Speed @ 1750 Rpm Input 233
Output Torque 1235 lbs.-in.
Output Torque Rating (in-lb) 1235 lbs.-in.
Overhung Load Rating 1625 lbs.
Product Line GRL Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 7.51
Reducer Worm - Right Angle
Reduction Ratio 7.5
Series GRL , GRL Series
Series Code GRL
Series Size 826
Service Factor 1
Shaft Center Distance 2.63
Shaft Center Height 2.94
Shaft Seal Material Viton
T 1.125
Tap Depth 0.69"
Tap Size 3/8"-16
Thread Type Coarse
Torque (lb-in)@1750rpm 1235 lbs.-in.
U 3/4"

Shipping Info:

Ship weight (kg) 25.65
Ship height (cm)20.32
Ship length (cm)30.48
Ship width (cm)25.4
