GROVE GEAR GRL8210550.20 GRL-HMQ821-7.5-H1-140-20 Right Angle Gear Reducer, 7.5 to 1 Reduction Ratio, 233 RPM Output, 692 lb-in Torque, Cast Iron
Get it by Thursday, Aug 27
€1,752.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Ae1 | 0.61 |
| Ae2 | 0.4 |
| Aj | 5.88 |
| Application | General Purpose |
| Assembly | HMQ-H1 |
| B | 5.8 |
| Be | 0.38" |
| Bf | 0.41 |
| Bore Code | 20 |
| C | 6.38" |
| Center Distance | 2.06" |
| D | 2.28 |
| F | 2.88 |
| Frame | 140TC |
| G | 1.44 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| I | 3.61" |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2.793 hp |
| Input Hp @ 1750 Rpm | 2.793 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 5" |
| Lq | 4.46" |
| Material | Cast Iron |
| Max. Ohl (output Shaft) | 1035 |
| Max. Thrust Load (output Shaft) | 811 |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output | Hollow |
| Output Dia. | 1 1/4" |
| Output Hollow Shaft Dia. | 1 1/4" |
| Output Hp | 2.562 hp |
| Output Key Size | 1/4" x 2.5" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Direction | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 811 |
| Output Shaft Type | Hollow Shaft |
| Output Speed | 233 RPM |
| Output Style | H1 |
| Output Torque | 692 lbs.-in. |
| Output Type | Hollow Bore |
| Paint/coating | Blue |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 4.06" |
| Series | GR Series |
| Series Style | GRL-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 233 RPM |
| Torque (lb-in)@1750rpm | 692 |
| V | 1.94" |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Output Speed | Output Torque | Mounting Type | No. Of Gear Reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRL8210551.23 | 1.438" | 7/8" | 2 47/200 hp | 2 58/125 hp | 175 RPM | 805 lbs.-in. | Shaft Mount | 1 | €1,727.91 | |
| GRL8210552.23 | 1.438" | 7/8" | 1.661 hp | 1.887 hp | 116 RPM | 897 lbs.-in. | Shaft Mount | 1 | €1,752.24 | |

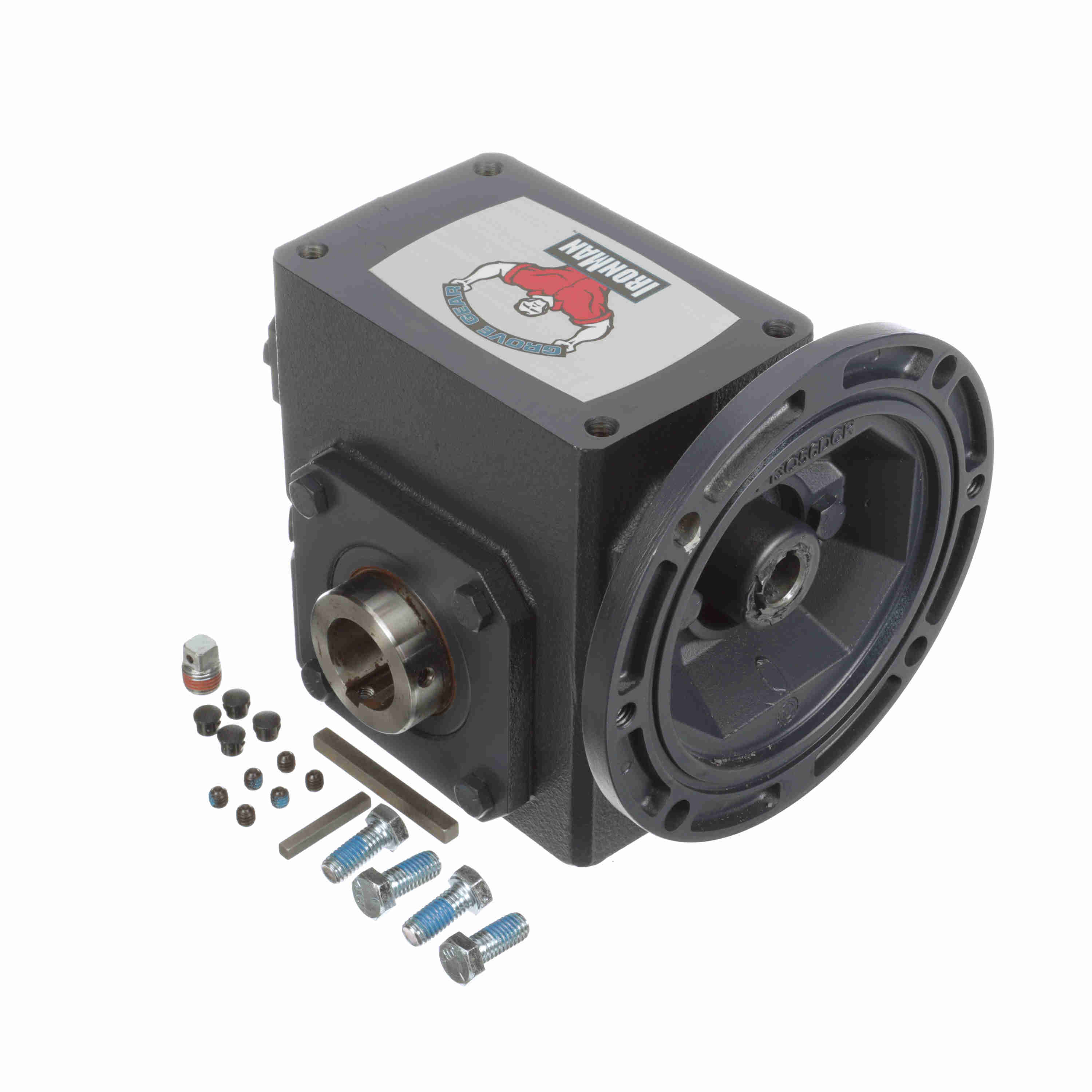

| GRL8210539.23 | 1.438" | 5/8" | 2.235 hp | 2 58/125 hp | 175 RPM | - | Shaft | Single | €1,438.63 | |
| GRL8210555.19 | 1.188" | 7/8" | 0.896 hp | 1.129 hp | 58 RPM | 968 lbs.-in. | Shaft Mount | 1 | €1,752.24 | |
| GRL8210540.23 | 1.438" | 5/8" | 1.661 hp | 1.887 hp | 116 RPM | - | Shaft | Single | €1,752.24 | |
| GRL8210550.23 | 1.438" | 7/8" | 2.562 hp | 2.793 hp | 233 RPM | 692 lbs.-in. | Shaft Mount | 1 | €1,752.24 | |
| GRL8210557.23 | 1.438" | 7/8" | 0.539 hp | 0.769 hp | 35 RPM | 970 lbs.-in. | Shaft Mount | 1 | €1,752.24 |
