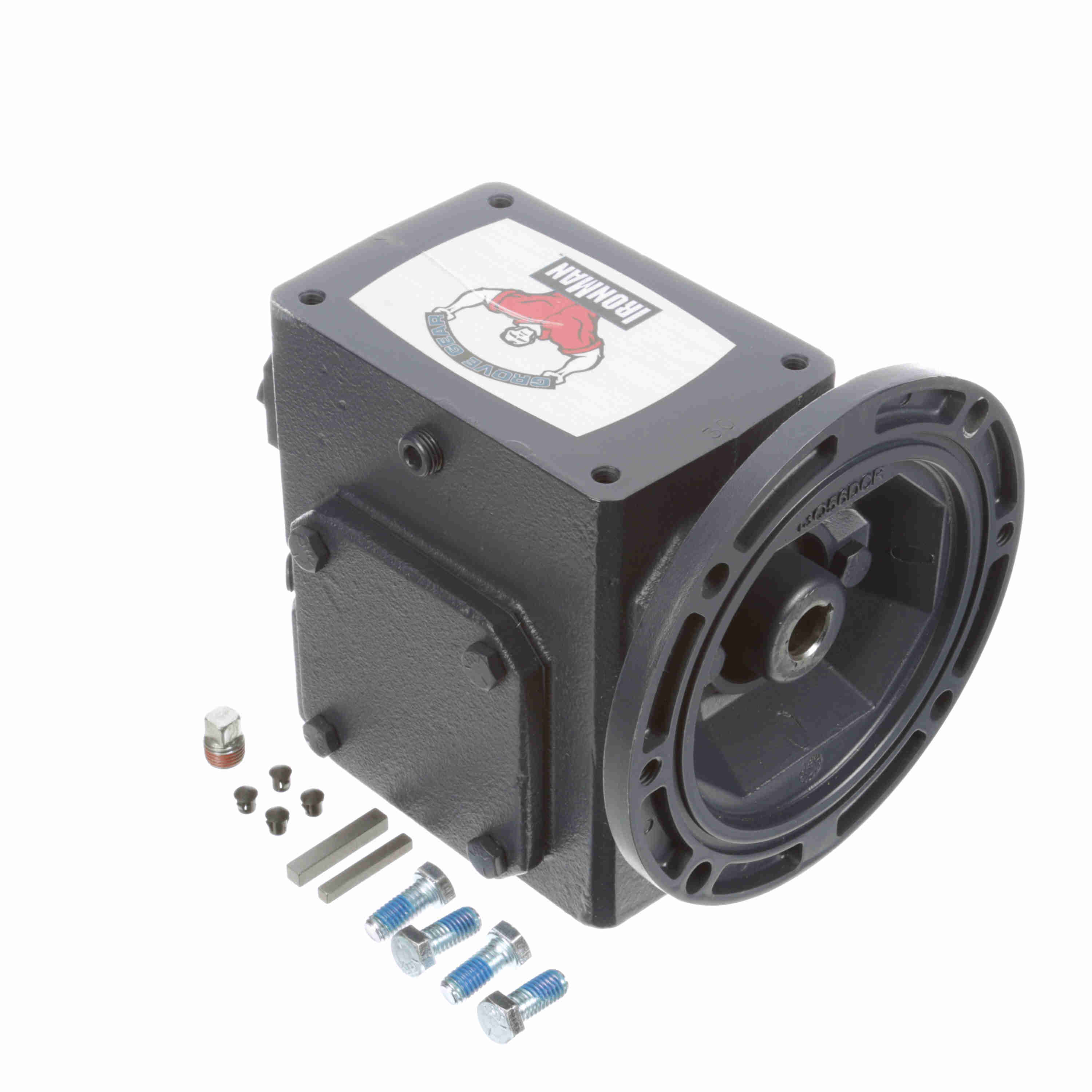

GROVE GEAR GRG8210127.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX3XAY GRG-BMQ821-30-R-56

GROVE GEAR GRG8210127.00 GRG-BMQ821-30-R-56 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 968 lb-in Torque, H1 Right Output

Item: AX3XAYModel: GRG8210127.00Cross Ref: GRG-BMQ821-30-R-56
Check Availability
In Stock
Ratio

Get it by Monday, Aug 31

€1,050.98 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Application General Purpose
Case Size None
Center Distance 2.06"
Centre Distance 2.06"
Family Name Cast Iron Housing Material Worm Gear Reducers
Gear Drive Reductions Single
Gear Ratio 30:1
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Input Bore (c Face) 0.625
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Frame NBSP
Input Hp 1.129 hp
Input Hp @ 1750 Rpm 1.129 hp
Input Keyway Size 3/16" x 3/32"
Input Quill Dia. 5/8"
Input Size 5/8"
Input Style C Face Quill
Lubrication PAG Synthetic Oil
Lubrication Type Pag Synthetic Oil
Material Cast Iron
Max. Hp 1 13/100 hp
Max. Ohl (output Shaft) 1255
Max. Overhung Load 1200 lbs.
Max. Thrust Load (output Shaft) 1144
Motor Hp 1 hp
Mounting Type No Base
No. Of Gear Reductions Single
Nominal Motor Hp Rating To Hp @ 1750 Rpm 1 hp
Output Right
Output Dia. 1"
Output Direction R
Output Hp 0.896 hp
Output Keyway Size 1/4" x 1 11/25"
Output Shaft Dia. 1"
Output Shaft Direction Right
Output Shaft Length 2.29"
Output Shaft Orientation R
Output Shaft Type Right Handed Shaft
Output Style R
Output Type Shaft
Paint/coating Blue
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GRG Series - Ironman Worm Gear Reducers
Product Series GRG Series
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Series Type Cast Iron 800 Worm Gear Reducers
Shaft Seal Material Viton
Speed 58 RPM
Torque 968 lbs.-in.
Torque (lb-in)@1750rpm 968
Type Right Angle Single Reduction
Type Of Oil None

Shipping Info:

Ship weight (kg) 13.05
Ship height (cm)26.67
Ship length (cm)27.15
Ship width (cm)23.01

Documentation:

Datasheet

Product Variants

ProductModelMax. Input HpOutput HpOutput SpeedInput Dia.Output TorqueInput Bore SizeSpeedInput StylePrice
GROVE GEAR GRG8210124.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX6KFD GRG-BMQ821-15-R-56 GRG8210124.001.887 hp1.661 hp-5/8"-5/8"116 RPMC Face Quill€1,050.98
GROVE GEAR GRG8210157.00 Worm Reducer, 5:1 Ratio, 0.875 Inch I.D, 1 Inch O.D, Cast Iron | AX7RXE GRG-BMQ821-5-R-140 GRG8210157.003 653/1000 hp3 41/100 hp350 RPM--7/8"350 RPMC-Face Quill€1,262.34
GROVE GEAR GRG8210121.00 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Right Angle Cast Iron | AX8DTJ GRG-BMQ821-5-R-56 GRG8210121.003.653 hp3 41/100 hp350 RPM5/8"614 lbs.-in.5/8"350 RPMC Face Quill-
RFQ
GROVE GEAR GRG8210123.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX8DTK GRG-BMQ821-10-R-56 GRG8210123.002 58/125 hp2.235 hp175 RPM5/8"-5/8"175 RPMC Face Quill€1,050.98
GROVE GEAR GRG8210160.00 Worm Reducer, 15:1 Ratio, 0.875 Inch I.D, 1 Inch O.D, Cast Iron | AX8GBJ GRG-BMQ821-15-R-140 GRG8210160.001.887 hp1.661 hp116.7 RPM7/8"-7/8"116 RPMC Face Quill€1,280.11
GROVE GEAR GRG8210163.00 Worm Reducer, 30:1 Ratio, 0.875 Inch I.D, 1 Inch O.D, Cast Iron | AX8JHX GRG-BMQ821-30-R-140 GRG8210163.001 129/1000 hp0.896 hp58.3 RPM--7/8"58 RPMC-Face Quill€1,280.11
GROVE GEAR GRG8210166.00 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 1 Inch O.D, Cast Iron | AY3WUR GRG-BMQ821-60-R-140 GRG8210166.000.674 hp87/200 hp29 RPM7/8"940 lbs.-in.7/8"29 RPMC Face Quill€1,280.11
