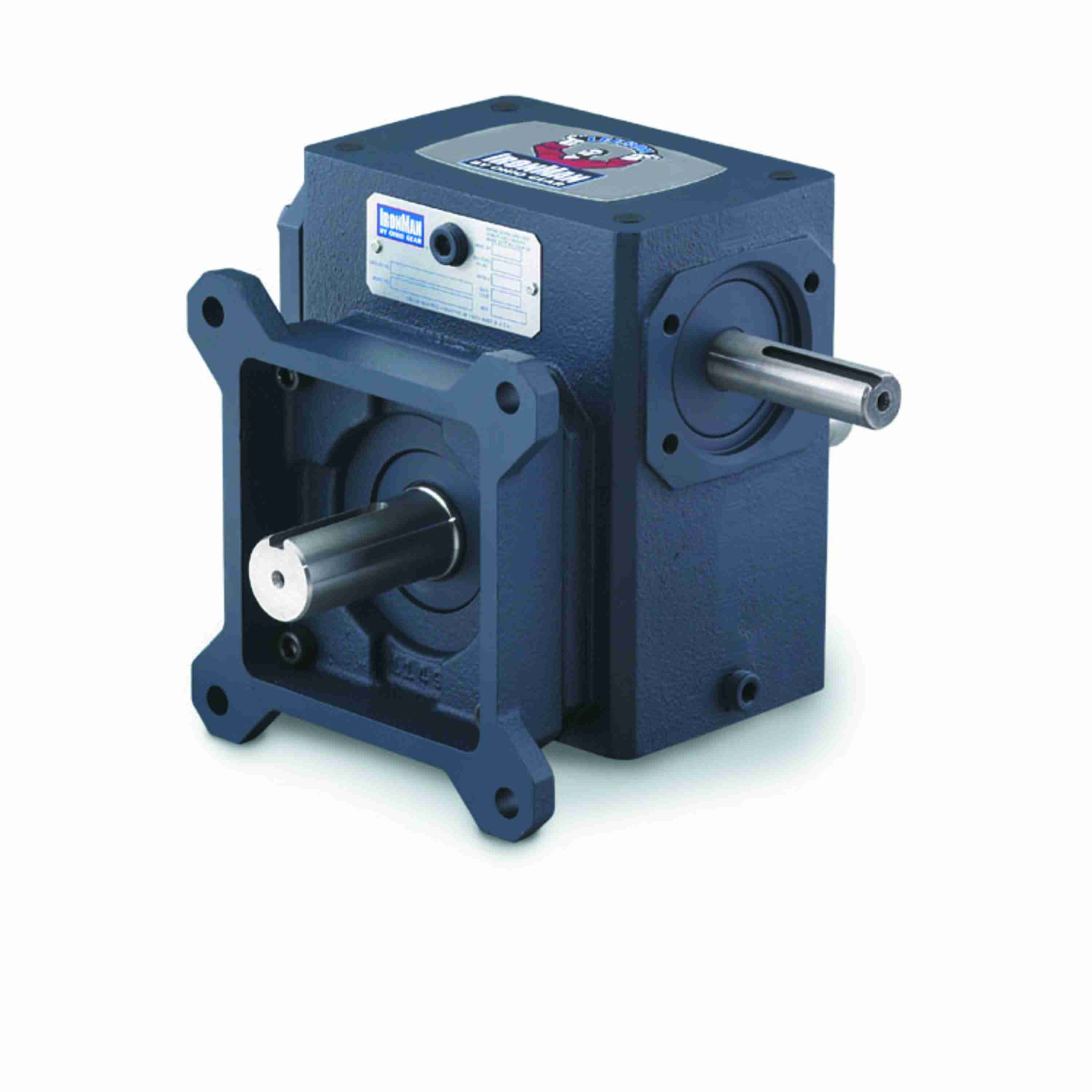

GROVE GEAR GR8605591.00 GR-F860-25-LL Worm Reducer, 25:1 Ratio, 1.5 Inch I.D, 2.5 Inch O.D, Cast Iron
Get it by Tuesday, Apr 14
€5,509.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | F-LL |
| Center Distance | 6" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 1 1/2" |
| Input Keyway Size | 3/8" x 3" |
| Input Rpm | 1750 RPM |
| Input Style | Shaft |
| Max. Input Hp | 13 3/50 hp |
| No. Of Gear Reductions | 1 |
| Output Diameter | 2 1/2" |
| Output Hp | 11.378 hp |
| Output Key Size | 5/8" x 4" |
| Output Rpm | 70 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | LL |
| Output Shaft Orientation | LL |
| Output Style | LL |
| Output Torque | 10245 lbs.-in. |
| Overhung Load | 3723 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-F-LL |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Shipping Info:
| Ship weight (kg) | 161.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | output torque | max. input hp | mounting type | output rpm | output | output style | output shaft assembly code | output shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8602352.00 | - | - | - | - | Left | - | - | - | €5,442.13 | RFQ
|
|
GR8602257.00 | 27386 lbs.-in. | - | - | 2.33 RPM | - | - | - | - | €9,633.93 | RFQ
|
|
GR8602309.00 | - | - | - | - | Right | - | - | - | €9,633.93 | RFQ
|
 |
GR8600572.55 | 5886 lbs.-in. | 2.571 hp | Shaft Mount | 17 RPM | - | H1 | H1 | Hollow Bore | €12,958.83 | |
 |
GR8600001.00 | 8467 lbs.-in. | 24 99/100 hp | Base | 175 RPM | - | L | L | Solid Shaft | €8,686.96 | |
 |
GR8600108.00 | 7264 lbs.-in. | 3.702 hp | Base | 21 RPM | - | R | R | Solid Shaft | €9,746.75 | |
|
GR8600592.32 | 10203 lbs.-in. | 8.722 hp | Shaft Mount | 43 RPM | - | H1 | H1 | Hollow Bore | €12,958.83 |
