GROVE GEAR GR8320587.31 Worm Reducer, 80:1 Ratio, 0.625 Inch I.D, 1.938 Inch O.D, Cast Iron | AY4FPX GR-HMQ832-80-H1-56-31

GROVE GEAR GR8320587.31 GR-HMQ832-80-H1-56-31 Right Angle Gear Reducer, 80 to 1 Reduction Ratio, 21 RPM Output, 2000 lb-in Torque, Cast Iron

Item: AY4FPXModel: GR8320587.31Cross Ref: GR-HMQ832-80-H1-56-31
Check Availability
In Stock
Ratio

Get it by Tuesday, Jul 7

€3,525.43 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Ae1 0.54
Ae2 0.29
Ag 7.88
Aj 5.88
Application General Purpose
Assembly HMQ-H1
B 8.75
Be 0.38"
Bf 0.41
Bore Code 31
C 9.38"
Center Distance 3 1/4"
Family Name Cast Iron Housing Material Worm Gear Reducers
Frame 56C
Frame Size 56C
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
I 5.02"
Input Bore (c Face) 5/8"
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Hp 1 3/100 hp
Input Hp @ 1750 Rpm 1 3/100 hp
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
J 7 1/2"
Lq 6.14"
Material Cast Iron
Max. Input Hp 1 3/100 hp
Max. Ohl (output Shaft) 2275
Max. Thrust Load (output Shaft) 2574
Mounting Type Shaft Mount
No. Of Gear Reductions 1
Output Hollow
Output Dia. 1.938"
Output Hollow Shaft Dia. 1.938"
Output Hp 0.695 hp
Output Key Size 1/2" x 3.38"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 2574
Output Shaft Type Hollow Shaft
Output Speed 21 RPM
Output Style H1
Output Torque 2000 lbs.-in.
Output Type Hollow Bore
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Rq 5.51"
Series GR Series
Series Style GR-HMQ-H1
Service Factor 1
Shaft Seal Material Viton
Speed 21.9 RPM
T 1.938
Torque (lb-in)@1750rpm 2000
V 2.756"

Shipping Info:

Ship weight (kg) 34.65
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Product Variants

ProductModelmax. input hpmounting typeoutput torquegear ratioseriesgear typeinput stylehousing materialPrice
GROVE GEAR GR8320593.26 Worm Reducer, 5:1 Ratio, 1.125 Inch I.D, 1.625 Inch O.D, Cast Iron | AX8GVP GR-HMQ832-5-H1-180-26 GR8320593.2611 23/25 hpShaft Mount2033 lbs.-in.-GR SeriesWormC Face QuillCast Iron€3,525.43
GROVE GEAR GR8320537.24 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1.5 Inch O.D, Cast Iron | AX8MUW GR-HMQ832-30-H1-56-24 GR8320537.243.619 hpShaft Mount3226 lbs.-in.-GR SeriesWormC Face QuillCast Iron€3,525.43
GROVE GEAR GR8320533.24 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1.5 Inch O.D, Cast Iron | AX9KWY GR-HMQ832-10-H1-56-24 GR8320533.248 23/250 hpShaft Mount2700 lbs.-in.-GR SeriesWormC Face QuillCast Iron€3,525.43

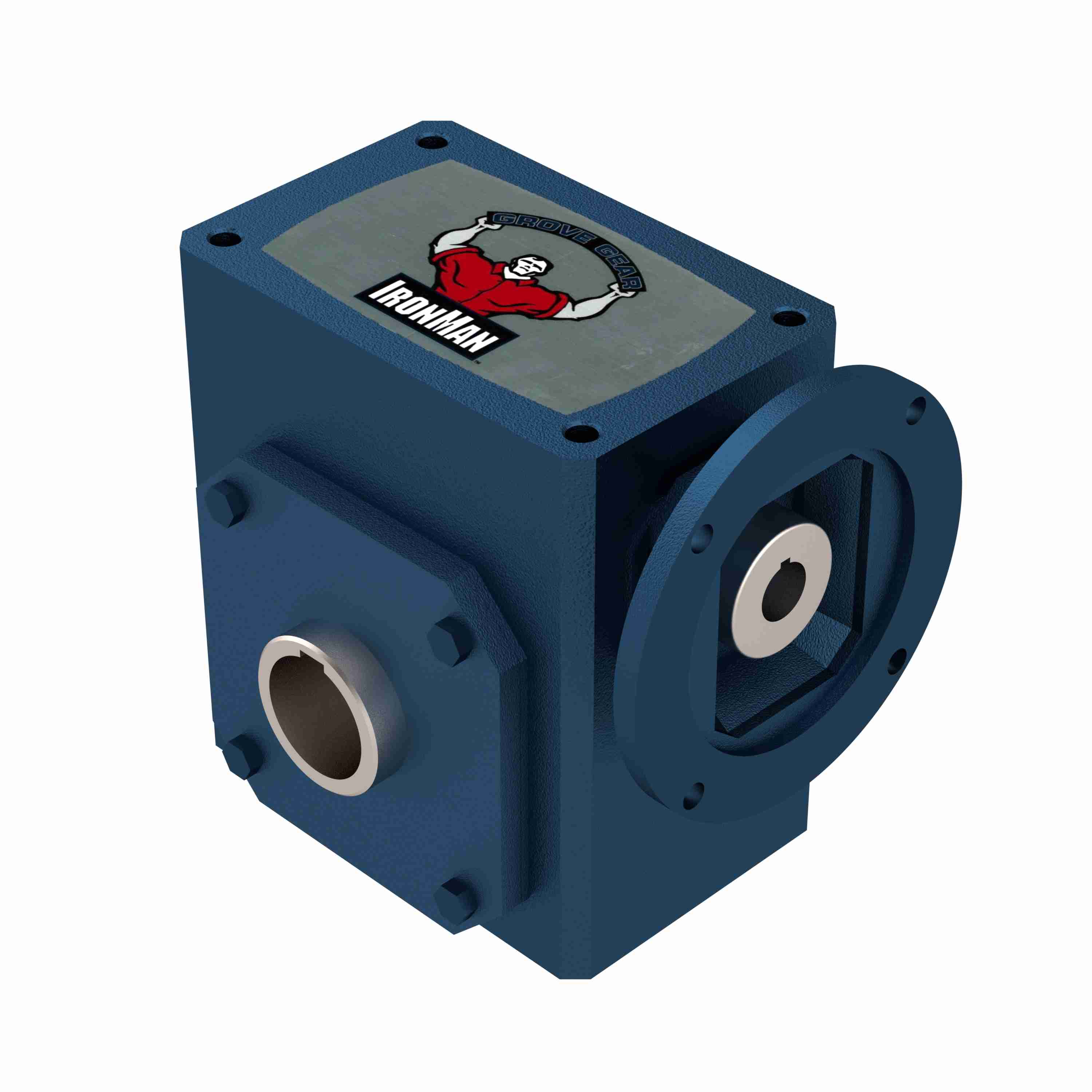

GROVE GEAR GR8320547.31 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.938 Inch O.D, Cast Iron | AX9KWZ GR-HMQ832-50-H1-140-31 GR8320547.312.462 hpShaft Mount3315 lbs.-in.-GR SeriesWormC Face QuillCast Iron€2,894.45
GROVE GEAR GR8320599.31 Worm Reducer, 10:1 Ratio, 1.375 Inch I.D, 1.938 Inch O.D, Right Angle Cast Iron | AX9KXB GR-HMQ832-10-H1-210-31 GR8320599.318 23/250 hpShaft Mount2700 lbs.-in.-GR SeriesWormC Face QuillCast Iron€3,525.43
GROVE GEAR GR8320540.24 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.5 Inch O.D, Right Angle Cast Iron | AX9LUK GR-HMQ832-60-H1-56-24 GR8320540.242 57/500 hpShaft Mount3274 lbs.-in.-GR SeriesWormC Face QuillCast Iron€2,894.45
GROVE GEAR GR8320553.19 Worm Reducer, 30:1 Ratio, 1.125 Inch I.D, 1.188 Inch O.D, Cast Iron | AX9MTZ GR-HMQ832-30-H1-180-19 GR8320553.193.619 hpShaft Mount3226 lbs.-in.-GR SeriesWormC Face QuillCast Iron€3,525.43
