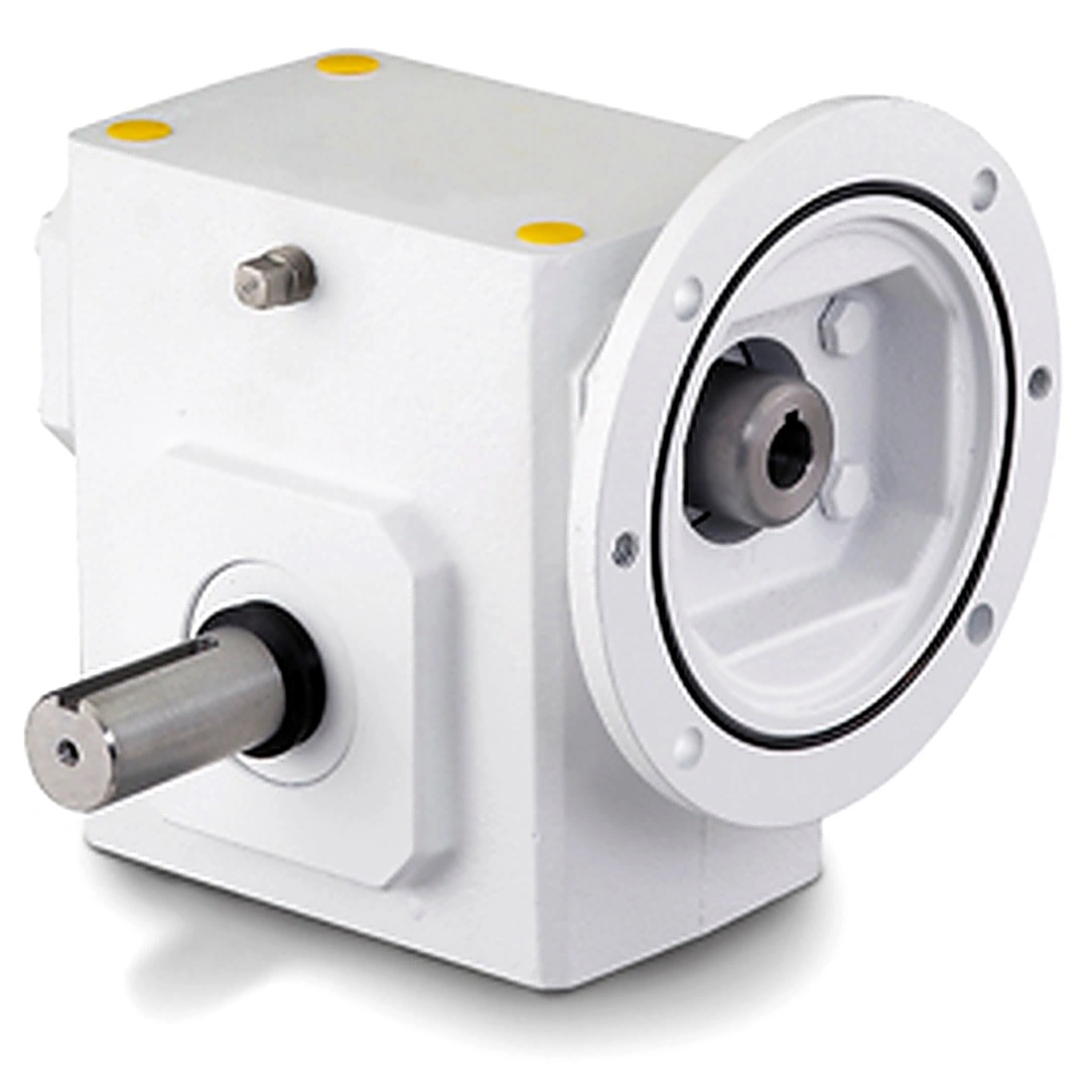

GROVE GEAR GR8303043.00 GR-WBMQ830-30-L-140 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 2519 lb-in Torque, Epoxy Washdown
Get it by Thursday, Aug 27
€1,530.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 5.25 |
| Aj | 5.88 |
| Application | Epoxy Washdown |
| Assembly | WBMQ-L |
| B | 8.12 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 8 22/25" |
| Center Distance | 3" |
| D | 3.25 |
| Frame | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| I | 4 21/25" |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2.879 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| J | 7" |
| K | 3 1/2" |
| Key Way Size | 3/16" x 3/32" |
| Lq | 5.95" |
| Max. Input Hp | 2.879 hp |
| Mounting Type | Base |
| N | 6.75 |
| No. Of Gear Reductions | 1 |
| O | 3 3/5" |
| Output Dia. | 1 1/4" |
| Output Hp | 2 83/250 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 58 RPM |
| Output Style | L |
| Output Torque | 2519 lbs.-in. |
| Overhung Load | 2170 lbs. |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 5 8/25" |
| Series | GR Series |
| Series Style | GR-WBMQ-L |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 22/25" |
| Tap Size | 7/16"-14 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 2519 |
Shipping Info:
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Output Speed | Output Torque | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Application | No. Of Gear Reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8300517.31 | 87 RPM | 2454 lbs.-in. | 1.938" | 7/8" | - | - | General Purpose | 1 | €1,588.55 | |
| GR8300123.00 | 175 RPM | 2037 lbs.-in. | 1 1/4" | 7/8" | 5.655 hp | 6.151 hp | General Purpose | 1 | €2,157.38 | |
| GR8300021.00 | - | 2084 | 1 1/4" | 7/8" | 1.383 hp | 1.915 hp | General Purpose | Single | €1,892.09 | |
| GR8305592.00 | 233.3 RPM | 1734 lbs.-in. | - | - | 6.421 hp | - | - | - | €1,929.25 | RFQ
|
| GR8300269.00 | 87.5 RPM | 2051 | 1 1/4" | 1 1/8" | 3.407 hp | 3 947/1000 hp | General Purpose | Single | €2,187.77 | |
| GR8300139.00 | 58 RPM | 2519 lbs.-in. | 1 1/4" | 7/8" | - | - | General Purpose | 1 | €1,238.71 | |
| GR8302008.00 | 3.5 RPM | 4257 lbs.-in. | - | - | 0.236 hp | - | - | - | €2,507.80 | RFQ
|
