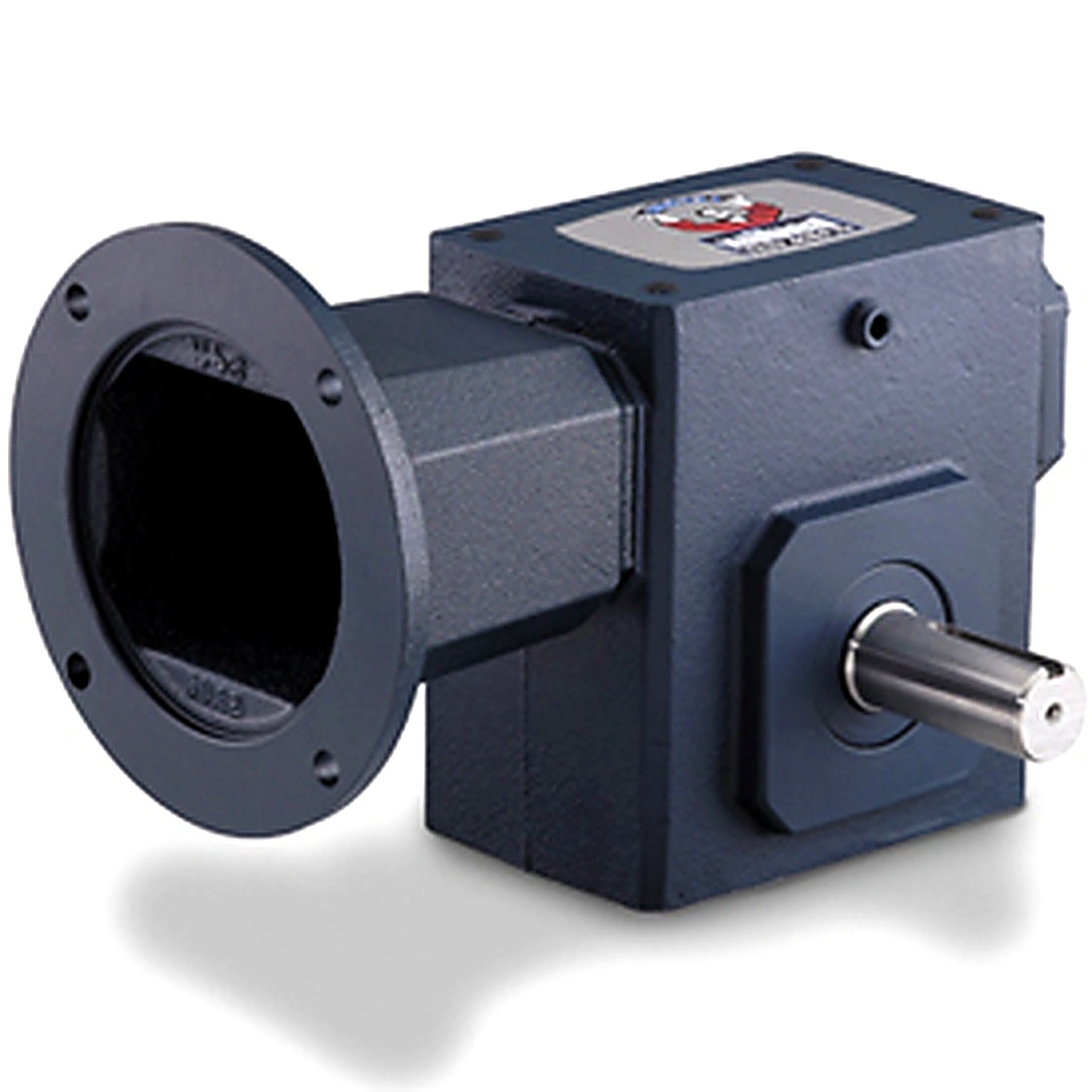

GROVE GEAR GR8300139.00 GR-BM830-30-D-180 Right Angle Gear Reducer, 30 to 1 Ratio, 1.25 Inch Dual Output Shaft, 182-4TC NEMA Input, 58 RPM Output
Get it by Friday, Aug 14
€1,238.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Assembly | BM-D |
| Center Distance | 3" |
| Frame | 180 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 2.879 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Max. Input Hp @ 1750 | 2 hp |
| Mount Footprint | 4 x 7 |
| Mount Style | BM |
| Nema Input Mounting | 182-4TC |
| No. Of Gear Reductions | 1 |
| Output Config | Dual Shaft |
| Output Dia. | 1 1/4" |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Dia. | 1.25 |
| Output Shaft Direction | Double |
| Output Shaft Thrust Rating | 2574 |
| Output Speed | 58 RPM |
| Output Speed @ 1750 Rpm Input | 58 |
| Output Torque | 2519 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Ratio | 30 |
| Series | GR , GR Series |
| Series Size | 830 |
| Service Factor | 1 |
| Shaft Center Distance | 3 |
| Shaft Center Height | 3.25 |
| Shaft Seal Material | Viton |
| Tap Depth | 22/25" |
| Tap Size | 7/16"-14 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 2519 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Model | Output Speed | Output Torque | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Application | No. Of Gear Reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8300517.31 | 87 RPM | 2454 lbs.-in. | 1.938" | 7/8" | - | - | General Purpose | 1 | €1,588.55 | |
| GR8300123.00 | 175 RPM | 2037 lbs.-in. | 1 1/4" | 7/8" | 5.655 hp | 6.151 hp | General Purpose | 1 | €2,157.38 | |
| GR8300021.00 | - | 2084 | 1 1/4" | 7/8" | 1.383 hp | 1.915 hp | General Purpose | Single | €1,892.09 | |
| GR8305592.00 | 233.3 RPM | 1734 lbs.-in. | - | - | 6.421 hp | - | - | - | €1,929.25 | RFQ
|
| GR8300269.00 | 87.5 RPM | 2051 | 1 1/4" | 1 1/8" | 3.407 hp | 3 947/1000 hp | General Purpose | Single | €2,187.77 | |
| GR8302008.00 | 3.5 RPM | 4257 lbs.-in. | - | - | 0.236 hp | - | - | - | €2,507.80 | RFQ
|
| GR8305725.00 | - | - | - | - | - | - | - | - | €1,929.25 | RFQ
|
