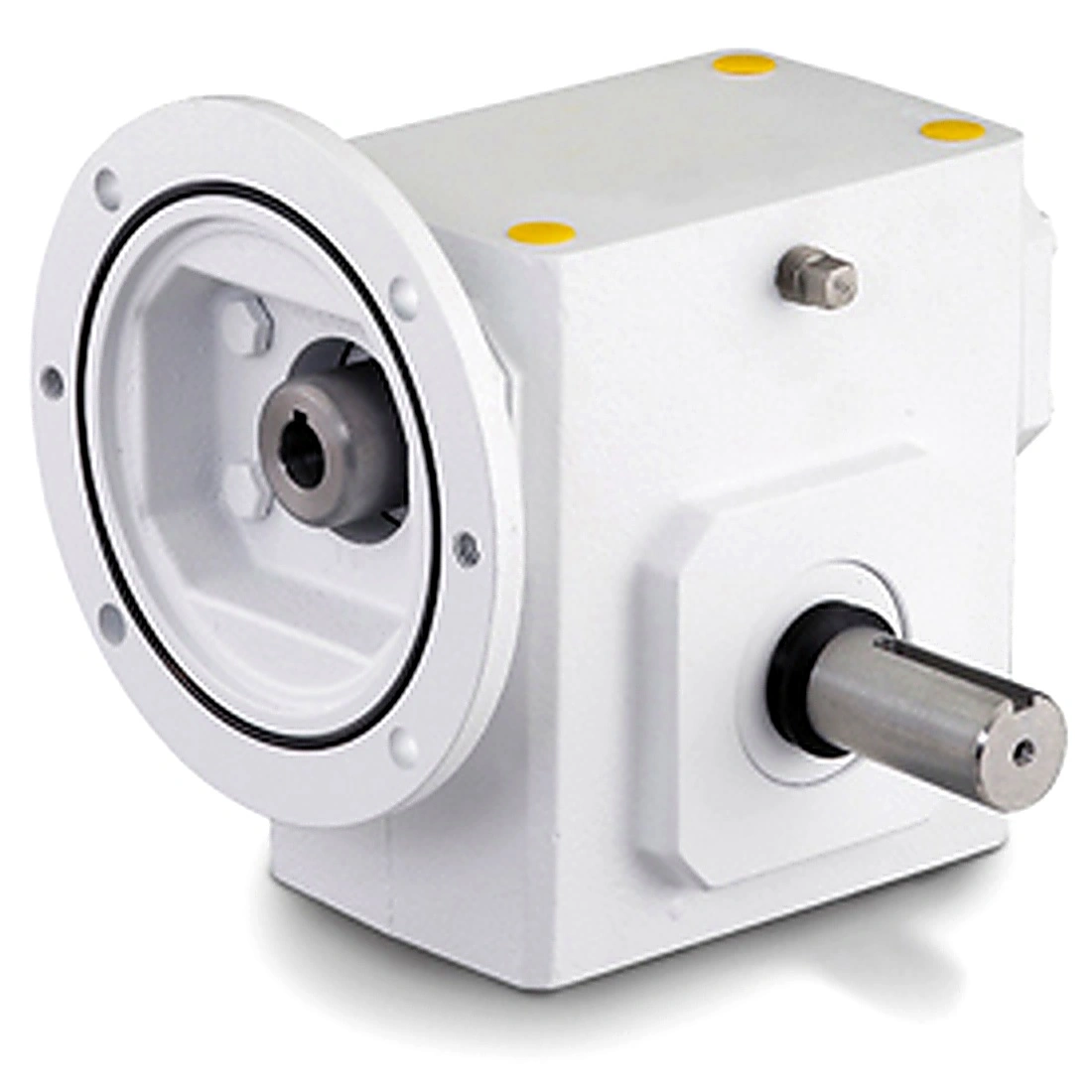

GROVE GEAR GR8303024.00 GR-WBMQ830-100-R-56-- Right Angle Gear Reducer, 100 to 1 Reduction Ratio, 17 RPM Output, 1321 lb-in Torque, Epoxy Washdown
Get it by Tuesday, Sep 1
€2,826.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Epoxy Washdown |
| Assembly | WBMQ-R |
| Center Distance | 3" |
| Frame | 56C |
| Frame Size | 56C |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 0.603 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Material | Cast Iron |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Right |
| Output Dia. | 1 1/4" |
| Output Hp | 0.367 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Torque | 1321 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 2170 lbs. |
| Paint/coating | White Epoxy |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-WBMQ-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 17 RPM |
| Torque (lb-in)@1750rpm | 1321 |
Shipping Info:
| Ship weight (kg) | 36 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Documentation:
Product Variants
| Model | Output Speed | Output Torque | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Application | No. Of Gear Reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8300517.31 | 87 RPM | 2454 lbs.-in. | 1.938" | 7/8" | - | - | General Purpose | 1 | €1,588.55 | |
| GR8300123.00 | 175 RPM | 2037 lbs.-in. | 1 1/4" | 7/8" | 5.655 hp | 6.151 hp | General Purpose | 1 | €2,157.38 | |
| GR8300021.00 | - | 2084 | 1 1/4" | 7/8" | 1.383 hp | 1.915 hp | General Purpose | Single | €1,892.09 | |
| GR8305592.00 | 233.3 RPM | 1734 lbs.-in. | - | - | 6.421 hp | - | - | - | €1,929.25 | RFQ
|
| GR8300269.00 | 87.5 RPM | 2051 | 1 1/4" | 1 1/8" | 3.407 hp | 3 947/1000 hp | General Purpose | Single | €2,187.77 | |
| GR8300139.00 | 58 RPM | 2519 lbs.-in. | 1 1/4" | 7/8" | - | - | General Purpose | 1 | €1,238.71 | |
| GR8302008.00 | 3.5 RPM | 4257 lbs.-in. | - | - | 0.236 hp | - | - | - | €2,507.80 | RFQ
|
