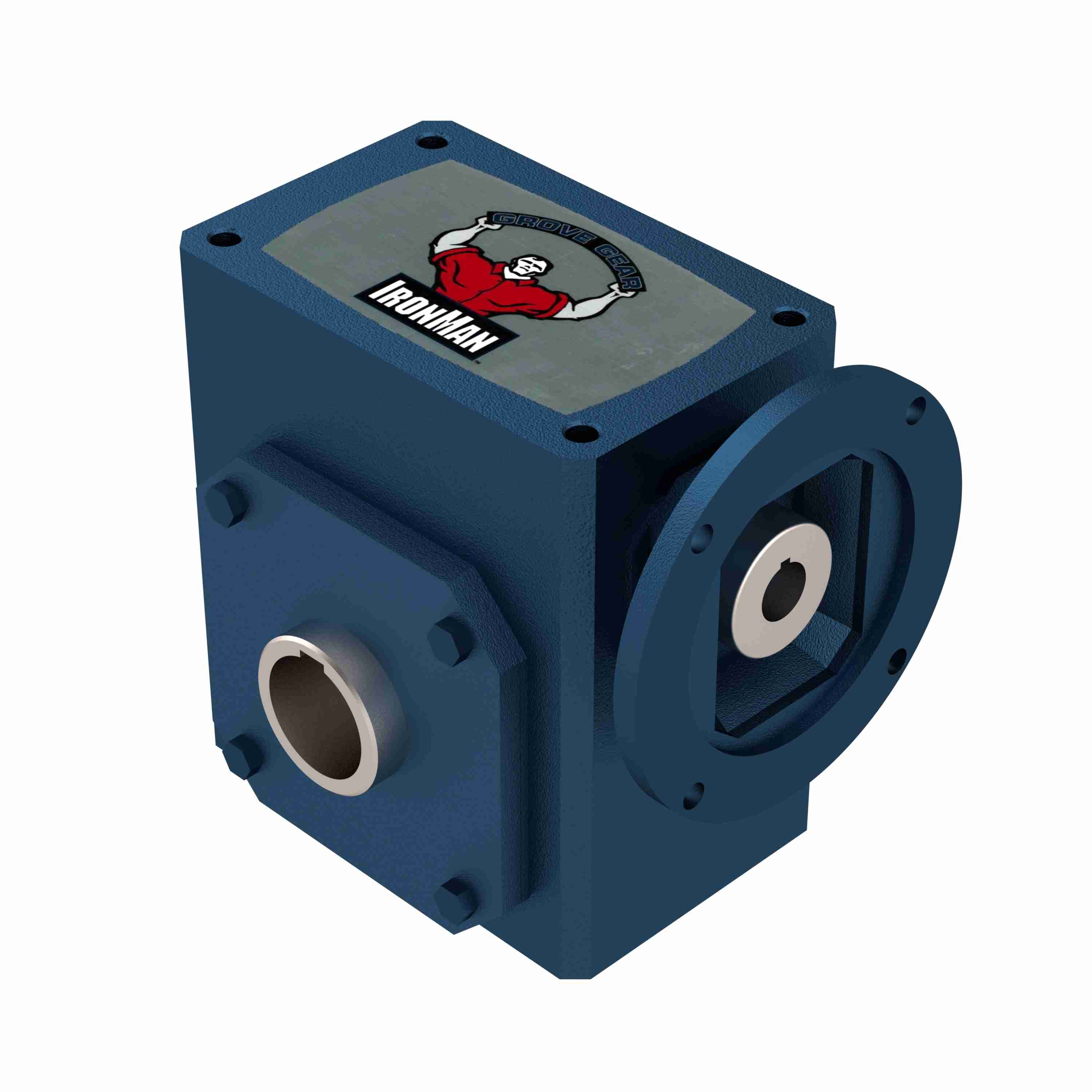

GROVE GEAR GR8300579.31 GR-HMQ830-30-H1-140-31 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 2519 lb-in Torque, Cast Iron
Get it by Tuesday, Jul 14
€2,343.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 10.63 |
| Ab | 8.25 |
| Ae2 | 0.36 |
| Ag | 7.5 |
| Aj | 5.88 |
| Application | General Purpose |
| Assembly | HMQ-H1 |
| B | 8.12 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 8 22/25" |
| Center Distance | 3" |
| Centre Distance | 3" |
| D | 3.25 |
| Dimensions | 7 1/2" |
| Frame | 140 |
| Gear Drive Reductions | Single |
| Gear Ratio | 30:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| H | 0.53" |
| I | 4 21/25" |
| Input Bore (c Face) | 0.875 |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2.879 hp |
| Input Hp @ 1750 Rpm | 2.879 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Size | 7/8" |
| Input Style | C Face Quill |
| J | 7" |
| Length | 19.38 |
| Lq | 5.95" |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| Material | Cast Iron |
| Max. Input Hp | 2 879/1000 hp , 2.879 hp |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 2574 |
| Mounting Type | Shaft |
| No. Of Gear Reductions | Single |
| Output | Hollow |
| Output Dia. | 1.938" |
| Output Hollow Shaft Dia. | 1.938" |
| Output Hp | 2.332 hp |
| Output Keyway Size | 0.5" x 3.38" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 2574 |
| Output Shaft Type | Hollow Shaft |
| Output Style | H1 |
| Output Torque | 4217 |
| Output Type | Hollow Bore |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Series | GR Series |
| R | 22/25" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Rq | 5 8/25" |
| Series Style | GR-HMQ-H1 |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Shaft Seal Material | Viton |
| Speed | 58 RPM |
| T | 1.938 |
| Torque | 2519 lbs.-in. |
| Torque (lb-in)@1750rpm | 2519 |
| Type | Right Angle Single Reduction |
| V | 2.756" |
| Width | 7 1/2" |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.38 |
Product Variants
| Model | output torque | gear type | max. input hp | mounting type | gear ratio | no. of gear reductions | output shaft assembly code | output shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8300517.31 | 2454 lbs.-in. | Worm | - | - | - | 1 | H1 | Hollow Bore | €1,588.55 | |
| GR8300123.00 | 2037 lbs.-in. | Worm | 6.151 hp | Base | - | 1 | R | Solid Shaft | €2,157.38 | |
| GR8300021.00 | - | - | 1.915 hp | Base | 50:1 | - | - | - | €1,892.09 | |
| GR8305592.00 | 1734 lbs.-in. | - | - | - | - | - | - | - | €1,929.25 | RFQ
|
| GR8300269.00 | - | - | 3 947/1000 hp | - | - | - | - | - | €2,187.77 | |
| GR8300139.00 | 2519 lbs.-in. | Worm | - | - | - | 1 | D | Solid Shaft | €1,238.71 | |
| GR8302008.00 | 4257 lbs.-in. | - | - | - | - | - | - | - | €2,507.80 | RFQ
|
