GROVE GEAR GR8300228.00 Worm Reducer, 100:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Right Angle Cast Iron | AY6CEY GR-BMQ830-100-L-140

GROVE GEAR GR8300228.00 GR-BMQ830-100-L-140 Right Angle Gear Reducer, 100 to 1 Reduction Ratio, 17 RPM Output, 1321 lb-in Torque, H1 Left Output

Item: AY6CEYModel: GR8300228.00Cross Ref: GR-BMQ830-100-L-140
Check Availability
In Stock
Ratio

Get it by Wednesday, Aug 26

€2,187.77 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.25
Aj 5.88
Application General Purpose
Assembly BMQ-L
B 8.12
Be 0.38"
Bf 0.41
C 8 22/25"
Center Distance 3"
D 3.25
Frame 140TC
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
I 4 21/25"
Input Bore (c Face) 7/8"
Input Bore Size 7/8"
Input Dia. 7/8"
Input Hp 0.603 hp
Input Hp @ 1750 Rpm 0.603 hp
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
J 7"
K 3 1/2"
Lq 5.95"
Material Cast Iron
Max. Input Hp 0.603 hp , 603/1000 hp
Max. Ohl (output Shaft) 2170
Max. Thrust Load (output Shaft) 2574
Mounting Type Base
N 6.75
No. Of Gear Reductions 1
O 3 3/5"
Output Left
Output Dia. 1 1/4"
Output Hp 0.367 hp
Output Key Size 1/4" x 1 3/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1 1/4"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 2574
Output Shaft Type Left Handed Shaft
Output Speed 17 RPM
Output Style L
Output Torque 1321 lbs.-in.
Output Type Solid Shaft
Overhung Load 2170 lbs.
Overhung Load Rating 2170 lbs.
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Rq 5 8/25"
Series GR Series
Series Style GR-BMQ-L
Service Factor 1
Shaft Seal Material Viton
Speed 17 RPM
Tap Depth 22/25"
Tap Size 7/16"-14
Thread Type Coarse
Torque (lb-in)@1750rpm 1321

Shipping Info:

Ship weight (kg) 30.6
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Product Variants

ProductModelOutput SpeedOutput HpMax. Input HpOutput TorqueInput Dia.Input StyleNo. Of Gear ReductionsInput Bore (c Face)Price

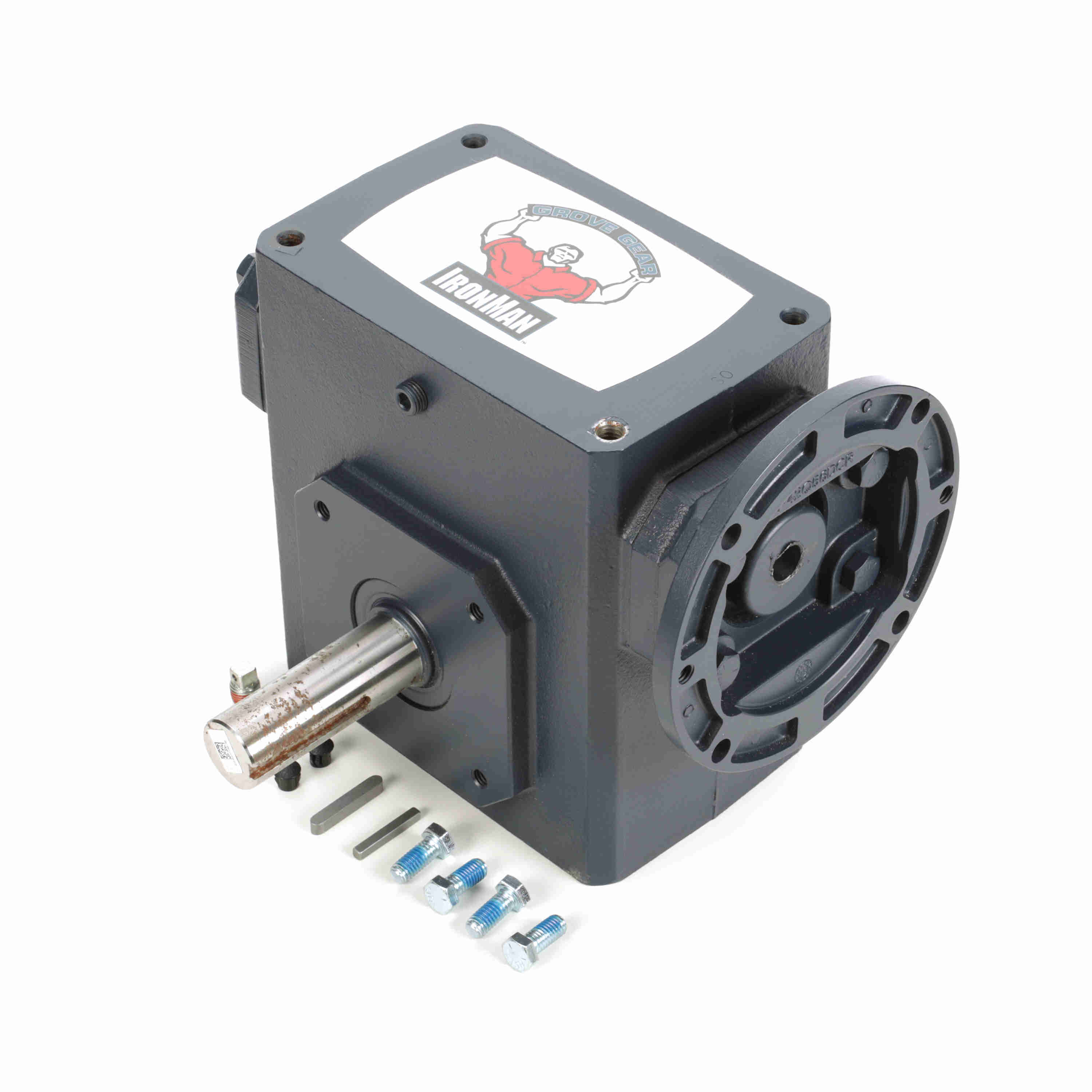

GROVE GEAR GR8300190.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7BHK GR-BMQ830-60-L-56 GR8300190.0029.2 RPM1.117 hp1 637/1000 hp2854-C-Face QuillSingle0.625€1,796.20

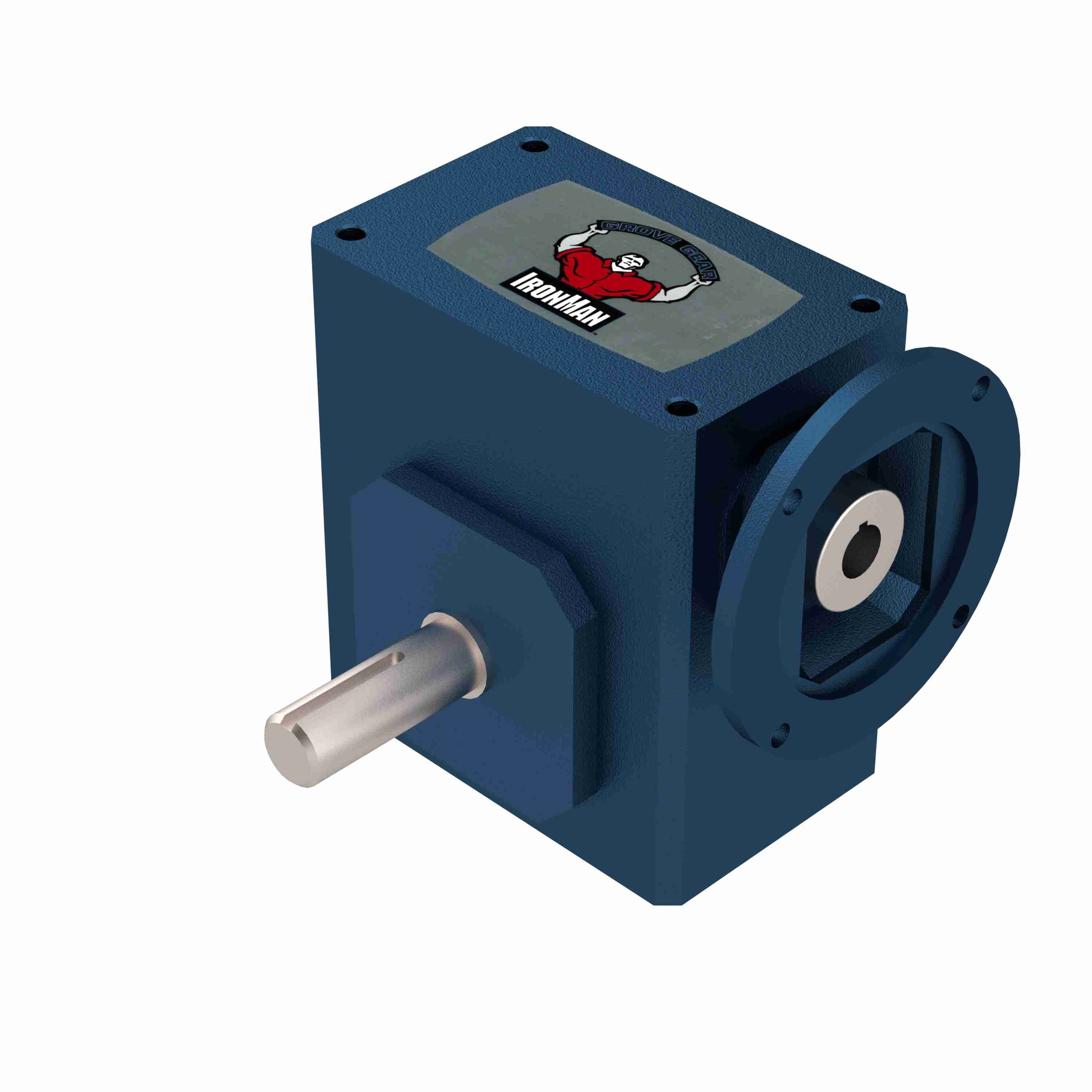

GROVE GEAR GR8300223.00 Worm Reducer, 30:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7KJN GR-BMQ830-30-L-140 GR8300223.0058.3 RPM-2 879/1000 hp2108-C-Face QuillSingle0.875€1,796.20
GROVE GEAR GR8300189.00 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Right Angle Cast Iron | AX7RBT GR-BMQ830-50-L-56 GR8300189.0035 RPM1.383 hp-2084-C-Face QuillSingle0.625€1,966.47
GROVE GEAR GR8300185.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7WLG GR-BMQ830-20-L-56 GR8300185.0087.5 RPM3.407 hp3 947/1000 hp--C-Face QuillSingle0.625€2,187.77
GROVE GEAR GR8300226.00 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7YZD GR-BMQ830-60-L-140 GR8300226.0029.2 RPM1.117 hp1 637/1000 hp4026-C-Face QuillSingle0.875€1,796.20
GROVE GEAR GR8300256.00 Worm Reducer, 15:1 Ratio, 1.125 Inch I.D, 1.25 Inch O.D, Cast Iron | AX8FZR GR-BMQ830-15-L-180 GR8300256.00116.7 RPM4.311 hp4.843 hp39491 1/8"C Face QuillSingle1.125€1,970.60
GROVE GEAR GR8300182.00 Worm Reducer, 7.5:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AY2WMT GR-BMQ830-7.5-L-56 GR8300182.00233 RPM6.421 hp6.879 hp-5/8"C Face Quill15/8"€1,185.39
