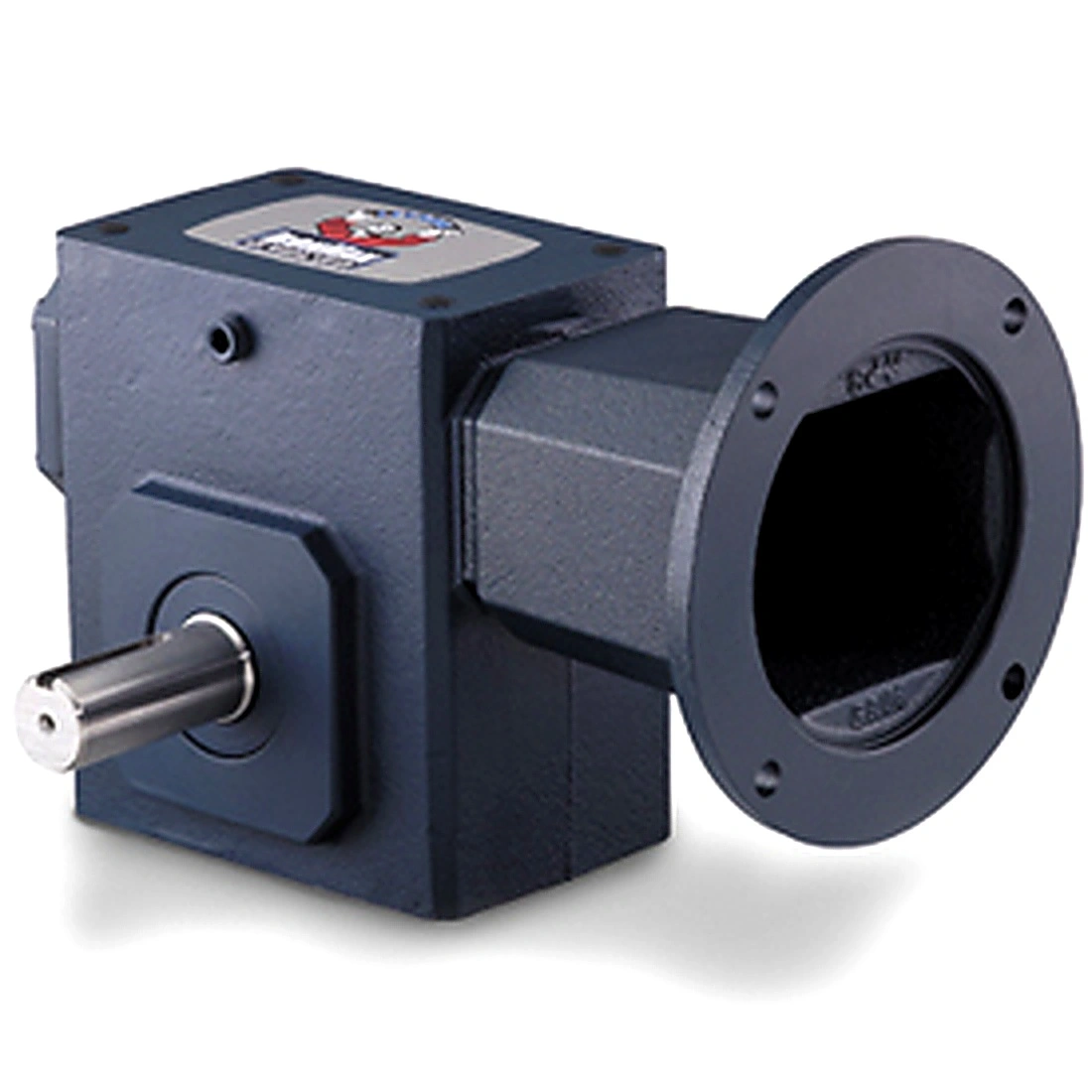

GROVE GEAR GR8300115.00 GR-BM830-30-L-180 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear
Get it by Tuesday, Feb 24
€1,185.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | BM-L |
| Center Distance | 3" |
| Frame | 180 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 2.879 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/4" |
| Output Key Size | 1/4" x 1 3/4" |
| Output Rpm | 58 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Thrust Rating | 2574 |
| Output Torque | 2519 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Series | GR Series |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 22/25" |
| Tap Size | 7/16"-14 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Gear Type | Max. Input Hp | Output Shaft Type | Gear Ratio | Output Torque | Frame | Mounting Type | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8300585.23 | Worm | 9.093 hp | Hollow Shaft | - | 1544 lbs.-in. | 180TC | Shaft Mount | - | €2,854.47 | |
| GR8300586.20 | Worm | - | - | - | 1734 lbs.-in. | 180 | - | - | €1,545.57 | |
| GR8300586.23 | Worm | 6.879 hp | Hollow Shaft | - | 1734 lbs.-in. | 180TC | Shaft Mount | - | €2,343.59 | |
| GR8300586.32 | - | - | - | - | - | - | - | - | €1,545.57 | |
| GR8300586.35 | - | - | - | - | - | - | - | - | €1,545.57 | |
| GR8300587.19 | Worm | 6.151 hp | Hollow Shaft | - | 2037 lbs.-in. | 180TC | Shaft Mount | - | €2,854.47 | |
| GR8300587.20 | Worm | 6.151 hp | Hollow Shaft | - | 2037 lbs.-in. | 180TC | Shaft Mount | - | €2,854.47 |
