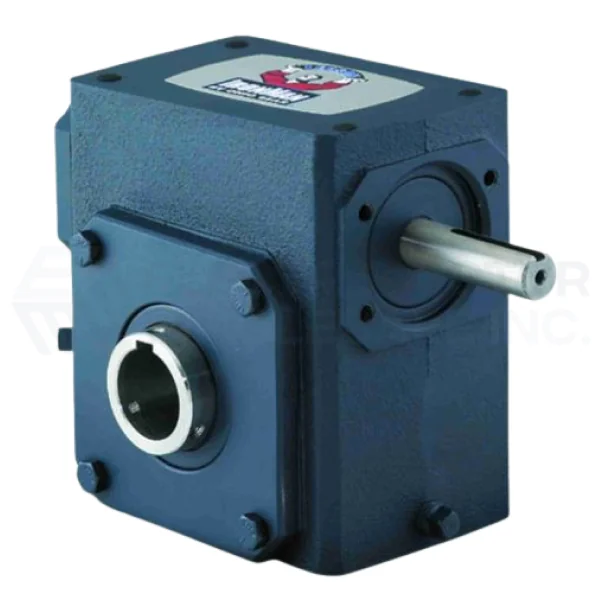

GROVE GEAR GR8260506.19 Right Angle Gear Reducer, 25 to 1 Ratio, 1-3/16 Inch Hollow Bore, Solid Shaft Input, Cast Iron
Get it by Monday, Aug 31
€1,176.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 2 hp |
| Mount Footprint | 3.38 x 6.38 |
| Mount Style | H |
| Nema Input Mounting | Solid Shaft |
| Output Config | H1 Hollow Bore |
| Output Speed @ 1750 Rpm Input | 70 |
| Overhung Load Rating | 1625 lbs. |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Series Size | 826 |
| Shaft Center Distance | 2.63 |
| Shaft Center Height | 2.94 |
| Torque (lb-in)@1750rpm | 1869 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
