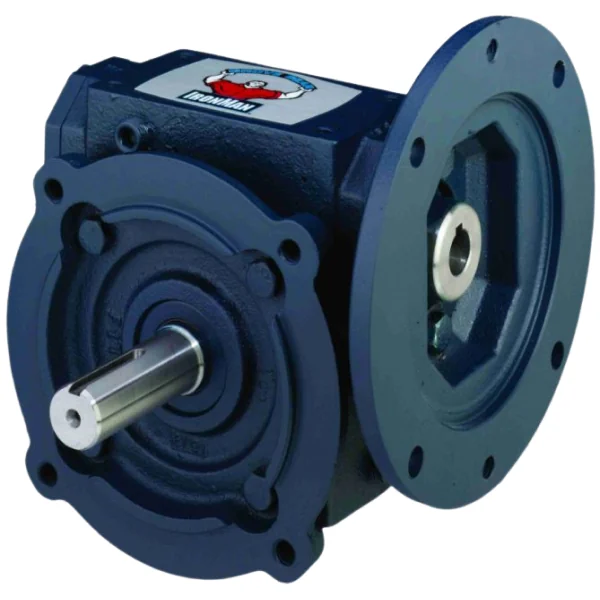

GROVE GEAR GR8241181.00 GR-CMQ824-5-L-140 Flanged Right Angle Gear Reducer, 5 to 1 Ratio, 1.125 Inch Left Output Shaft, 143-5TC NEMA Input, Cast Iron
Get it by Thursday, Jul 16
€1,007.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 5.323 hp |
| Mount Style | CMQ |
| Nema Input Mounting | 143-5TC |
| Output Config | Flanged Left |
| Output Shaft Dia. | 1.125 |
| Output Speed @ 1750 Rpm Input | 350 |
| Overhung Load Rating | 1700 lbs. |
| Reduction Ratio | 5:1 |
| Series | GR |
| Series Size | 824 |
| Shaft Center Distance | 2.38 |
| Shaft Center Height | 2.69 |
| Torque (lb-in)@1750rpm | 898 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | output torque | gear type | max. input hp | mounting type | gear ratio | center distance | output shaft | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8240166.00 | - | - | 0.967 hp | Base | 60:1 | 2.38" | - | - | €1,119.76 | |
 |
GR8240154.00 | - | - | 0.967 hp | Base | 60:1 | 2.38" | - | - | €1,265.18 | |
 |
GR8240159.00 | - | - | 3 141/250 hp | - | - | 2.38" | - | - | €1,540.94 | |
 |
GR8240565.18 | 1421 lbs.-in. | Worm | 2.326 hp | Shaft Mount | - | 2.38" | Hollow Bore | 1 | €2,095.34 | |
|
GR8241164.00 | 1433 lbs.-in. | - | - | - | - | 2.4" | - | - | €1,422.33 | RFQ
|
 |
GR8240519.20 | 1423 lbs.-in. | Worm | 1.653 hp | Shaft Mount | - | 2.38" | Hollow Bore | 1 | €2,095.34 | |
|
GR8240510.19 | 1418 lbs.-in. | Worm | - | Shaft Mount | - | 2.38" | Hollow Bore | 1 | €1,051.60 |
