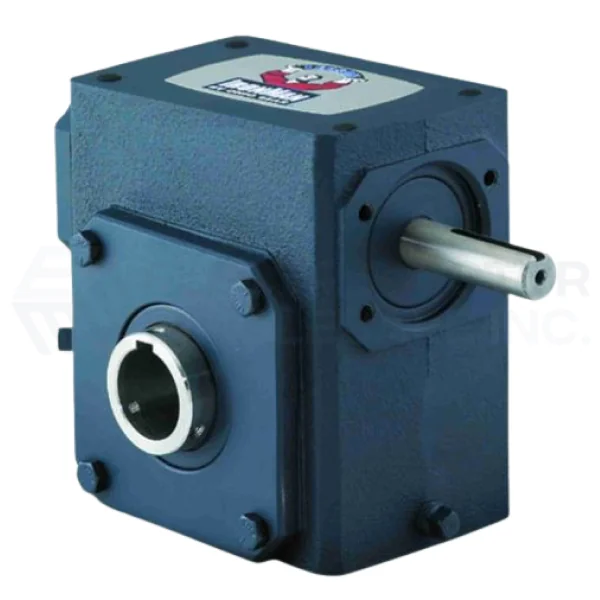

GROVE GEAR GR8240512.23 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AY4DAG GR-H824-100-H1-23

GROVE GEAR GR8240512.23 GR-H824-100-H1-23 Right Angle Gear Reducer

Item: AY4DAGModel: GR8240512.23Cross Ref: GR-H824-100-H1-23
Check Availability
In Stock

Get it by Tuesday, Sep 1

€1,051.60 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
Ad 5.18
Ae1 0.51
Ae2 0.31
Ag 6
Assembly H-H1
B 6.12
Bore Code 23
C 6.94"
Center Distance 2.38"
D 2.5
F 2.88
G 1.44
Gear Type Worm
Housing Material Cast Iron
I 3.77"
Input Dia. 3/4"
Input Hp @ 1750 Rpm 0.307 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 5"
L 5.51"
M 2.38
Mounting Style Shaft Mount
Mounting Type Shaft Mount
No. Of Gear Reductions 1 , Single
Output Dia. 1 7/16"
Output Key 3/8 x 3
Output Key Size 3/8" x 3"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 2091
Output Speed 17.5 , 17.5 RPM
Output Torque 648 lbs.-in.
Output Torque Rating (in-lb) 648 lbs.-in.
Overhung Load Rating 1770 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 1001
Reducer Worm - Right Angle
Series GR Series , GR Series - Ironman Worm Gear Reducers
Series Code Gr
Service Factor 1
Shaft Seal Material Viton
T 1.4375
U 3/4"
V 1.94"

Shipping Info:

Ship weight (kg) 18.9
Ship height (cm)20.32
Ship length (cm)45.72
Ship width (cm)35.56

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedOutput Dia.Output HpOutput TorqueInput Dia.Max. Input HpOutputPaint/coatingPrice
GROVE GEAR GR8240166.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Right Angle Cast Iron | AX4HJP GR8240166.0029.2 RPM1 1/8"0.656 hp16045/8"0.967 hpRightBlue€1,119.76
GROVE GEAR GR8240154.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4HUH GR8240154.0029.2 RPM1 1/8"0.656 hp12195/8"0.967 hpLeftBlue€1,265.18
GROVE GEAR GR8240159.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4JCQ GR8240159.00175 RPM1 1/8"3.253 hp-5/8"3 141/250 hpRightBlue€1,540.94
GROVE GEAR GR8240565.18 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4MRN GR8240565.1887.5 RPM1 1/8"1.972 hp1421 lbs.-in.7/8"2.326 hpHollowBlue€2,095.34
GROVE GEAR GR8241164.00 Quill Input Worm Gear Reducer | AX6CNV GR8241164.0043.75 RPM-0.994 hp1433 lbs.-in.--RightBlue€1,422.33
RFQ
GROVE GEAR GR8240519.20 Worm Reducer, 30:1 Ratio, 0.75 Inch I.D, 1.25 Inch O.D, Cast Iron | AX6WUM GR8240519.2058.3 RPM1 1/4"1.317 hp1423 lbs.-in.3/4"1.653 hpHollowBlue€2,095.34
GROVE GEAR GR8240510.19 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AX6XKJ GR8240510.19-1 3/16"--3/4"---€1,051.60
