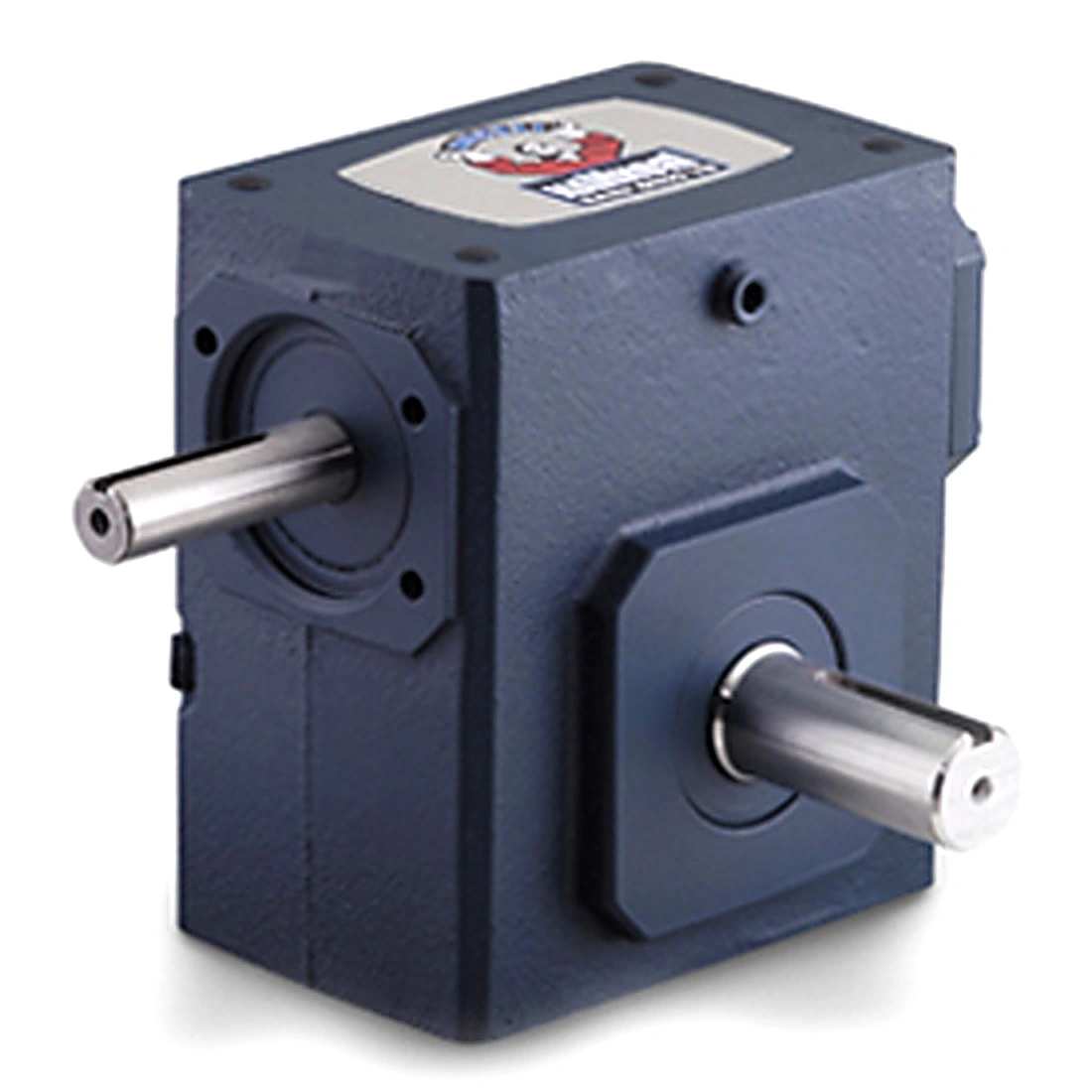

GROVE GEAR GR8240026.00 Solid Input Shaft Worm Gear Reducer, Double Worm | AY2JKM

GROVE GEAR GR8240026.00 GR-B824-7.5-D Right Angle Gear Reducer, 7.5 to 1 Ratio, 1.125 Inch Dual Output Shaft, Solid Shaft Input, 233 RPM Output

Item: AY2JKMModel: GR8240026.00Cross Ref: GR-B824-7.5-D
Check Availability
In Stock

Get it by Tuesday, Sep 1

€774.66 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 4.06
Application General Purpose
Assembly B-D
B 6.12
C 6.94"
Center Distance 2.38"
D 2.5
F 2.88
G 1.44
Gear Type Worm
H-tap Size 3/8"-16
H-tap Type UNC
Housing Material Cast Iron
I 3.77"
Input Dia. 3/4"
Input Hp @ 1750 Rpm 3.992 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 5"
K 2 1/2"
L 5.51"
M 2.38
Max. Input Hp @ 1750 3 hp
Mount Footprint 2.88 x 5
Mount Style B
N 5.14
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
O 2.66"
Output Config Dual Shaft
Output Dia. 1 1/8"
Output Key 1/4 x 1.75
Output Key Size 1/4" x 1 3/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code D
Output Shaft Dia. 1.125
Output Shaft Direction Double
Output Shaft Thrust Rating 1659
Output Speed 233.3 , 233.3 RPM
Output Speed @ 1750 Rpm Input 233
Output Torque 995 lbs.-in.
Output Torque Rating (in-lb) 995 lbs.-in.
Overhung Load Rating 1770 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 7.51
Reducer Worm - Right Angle
Reduction Ratio 7.5
Series GR , GR Series
Series Code Gr
Series Size 824
Service Factor 1
Shaft Center Distance 2.38
Shaft Center Height 2.5
Shaft Seal Material Viton
T 1.125
Tap Depth 0.69"
Tap Size 3/8"-16
Thread Type Coarse
Torque (lb-in)@1750rpm 995 lbs.-in.
U 3/4"

Shipping Info:

Ship weight (kg) 18
Ship height (cm)16.51
Ship length (cm)25.4
Ship width (cm)17.78

Documentation:

Datasheet

Product Variants

ProductModelOutput TorqueOutput SpeedOutput Dia.Output HpInput Dia.Max. Input HpOutputPaint/coatingPrice
GROVE GEAR GR8240166.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Right Angle Cast Iron | AX4HJP GR8240166.00160429.2 RPM1 1/8"0.656 hp5/8"0.967 hpRightBlue€1,119.76
GROVE GEAR GR8240154.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4HUH GR8240154.00121929.2 RPM1 1/8"0.656 hp5/8"0.967 hpLeftBlue€1,265.18
GROVE GEAR GR8240159.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4JCQ GR8240159.00-175 RPM1 1/8"3.253 hp5/8"3 141/250 hpRightBlue€1,540.94
GROVE GEAR GR8240565.18 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4MRN GR8240565.181421 lbs.-in.87.5 RPM1 1/8"1.972 hp7/8"2.326 hpHollowBlue€2,095.34
GROVE GEAR GR8241164.00 Quill Input Worm Gear Reducer | AX6CNV GR8241164.001433 lbs.-in.43.75 RPM-0.994 hp--RightBlue€1,422.33
RFQ
GROVE GEAR GR8240519.20 Worm Reducer, 30:1 Ratio, 0.75 Inch I.D, 1.25 Inch O.D, Cast Iron | AX6WUM GR8240519.201423 lbs.-in.58.3 RPM1 1/4"1.317 hp3/4"1.653 hpHollowBlue€2,095.34
GROVE GEAR GR8240510.19 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AX6XKJ GR8240510.191418 lbs.-in.29.2 RPM1 3/16"-3/4"---€1,051.60
