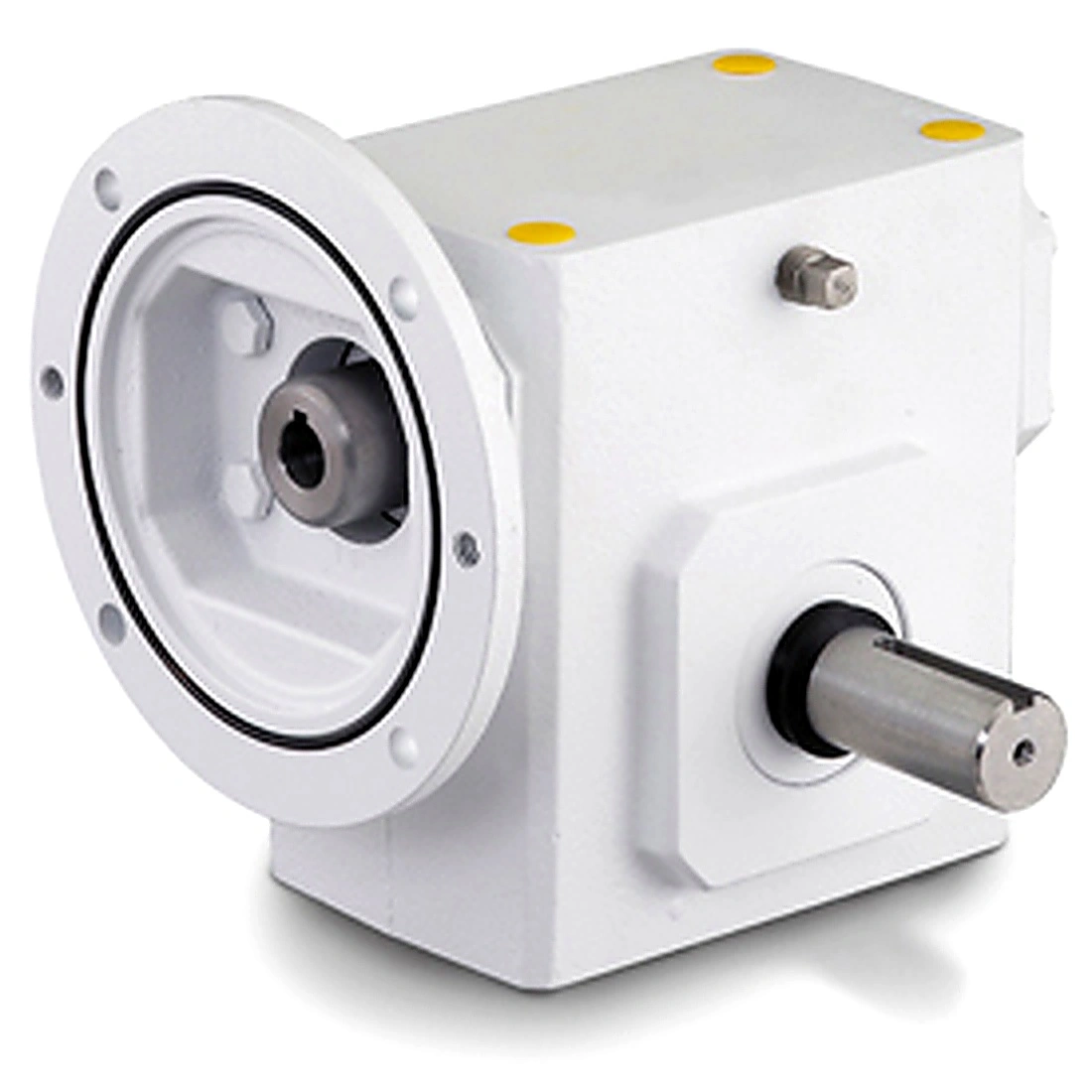

GROVE GEAR GR8183032.00 GR-WBMQ818-40-D-56 Right Angle Gear Reducer, 40 to 1 Reduction Ratio, 43 RPM Output, 634 lb-in Torque, Epoxy Washdown
Get it by Wednesday, Aug 26
€788.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 3.56 |
| Aj | 5.88 |
| Application | Epoxy Washdown |
| Assembly | WBMQ-D |
| B | 5.06 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 5 3/4" |
| Center Distance | 1 3/4" |
| D | 2.06 |
| F | 2.75 |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.38 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| I | 3 6/25" |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Hp | 0.609 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| J | 4.19" |
| K | 2.09" |
| Key Way Size | 3/16" x 3/32" |
| Lq | 4.09" |
| Max. Input Hp | 0.609 hp |
| Mounting Type | Base |
| N | 4.31 |
| No. Of Gear Reductions | 1 |
| O | 2.05" |
| Output Dia. | 7/8" |
| Output Hp | 11/25 hp |
| Output Key Size | 3/16" x 1.38" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Dia | 0.875 |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 43 RPM |
| Output Style | D |
| Output Torque | 634 lbs.-in. |
| Overhung Load | 1200 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 3.59" |
| Series | GR Series |
| Series Style | GR-WBMQ-D |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Style | D |
| T | 0.875 |
| Tap Depth | 0.63" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 634 |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8180542.16 | 567 | - | 1" | 0.715 hp | 5/8" | 0.884 hp | Hollow | Blue | €1,207.97 | |
 |
GR8180111.00 | 528 | 175 RPM | 7/8" | 1.466 hp | 5/8" | 1 5/8 hp | Left | Blue | €894.01 | |
|
GR8180124.00 | 645 | 116.7 RPM | 7/8" | 1.058 hp | 5/8" | 1.224 hp | Right | Blue | €894.01 | |
 |
GR8185564.00 | - | - | - | - | - | - | Right | - | €1,206.28 | |
|
GR8180118.00 | 689 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Left | Blue | €809.88 | |
|
GR8180117.00 | 857 | 35 RPM | 7/8" | - | 5/8" | 103/200 hp | Left | Blue | €894.01 | |
|
GR8180130.00 | 623 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Right | Blue | €809.88 |
