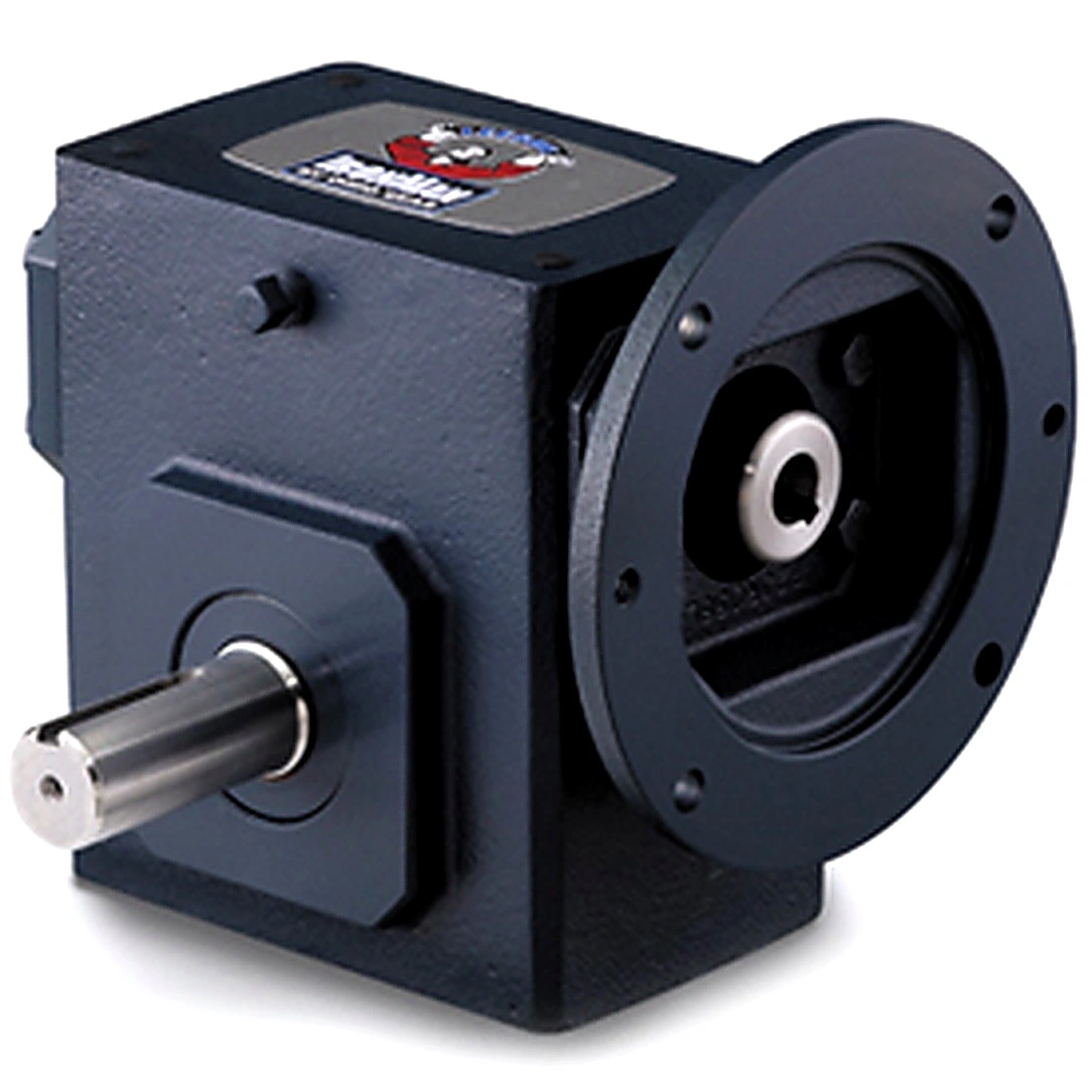

GROVE GEAR GR8180145.00 GR-BMQ818-5-L-140 Right Angle Gear Reducer, 5 to 1 Reduction Ratio, 350 RPM Output, 436 lb-in Torque, H1 Left Output
Get it by Wednesday, Aug 26
€1,073.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Case Material | Cast Iron |
| Center Distance | 1 3/4" |
| Frame Size | 140TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 2 3/5 hp |
| Input Bore (c Face) | 0.875 |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2 3/5 hp |
| Input Hp @ 1750 Rpm | 2 3/5 hp |
| Input Style | C-Face Quill |
| Material | Cast Iron |
| Max. Hp | 2 3/5 hp |
| Max. Input Hp | 2 3/5 hp |
| Max. Ohl (output Shaft) | 1200 |
| Max. Overhung Load | 1000 lbs. |
| Max. Thrust Load (output Shaft) | 793 |
| No. Of Gear Reductions | Single |
| Output | Left |
| Output Dia. | 7/8" |
| Output Hp | 2.422 hp |
| Output Shaft Dia | 0.875 |
| Output Shaft Dia. | 7/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 350 RPM |
| Output Style | L |
| Output Torque | 513 |
| Output Type | Left Shaft |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Ratio | 5:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor 1 | 1.3 SF @ 2 HP |
| Service Factor 2 | 1.73 SF @ 1 1/2 HP |
| Service Factor 3 | 2.6 SF @ 1 HP |
| Shaft Seal Material | Viton |
| Speed | 350 RPM |
| Torque | 436 lbs.-in. |
| Torque (lb-in)@1750rpm | 436 |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8180542.16 | 567 | - | 1" | 0.715 hp | 5/8" | 0.884 hp | Hollow | Blue | €1,207.97 | |
 |
GR8180111.00 | 528 | 175 RPM | 7/8" | 1.466 hp | 5/8" | 1 5/8 hp | Left | Blue | €894.01 | |
|
GR8180124.00 | 645 | 116.7 RPM | 7/8" | 1.058 hp | 5/8" | 1.224 hp | Right | Blue | €894.01 | |
 |
GR8185564.00 | - | - | - | - | - | - | Right | - | €1,206.28 | |
|
GR8180118.00 | 689 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Left | Blue | €809.88 | |
|
GR8180117.00 | 857 | 35 RPM | 7/8" | - | 5/8" | 103/200 hp | Left | Blue | €894.01 | |
|
GR8180130.00 | 623 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Right | Blue | €809.88 |
