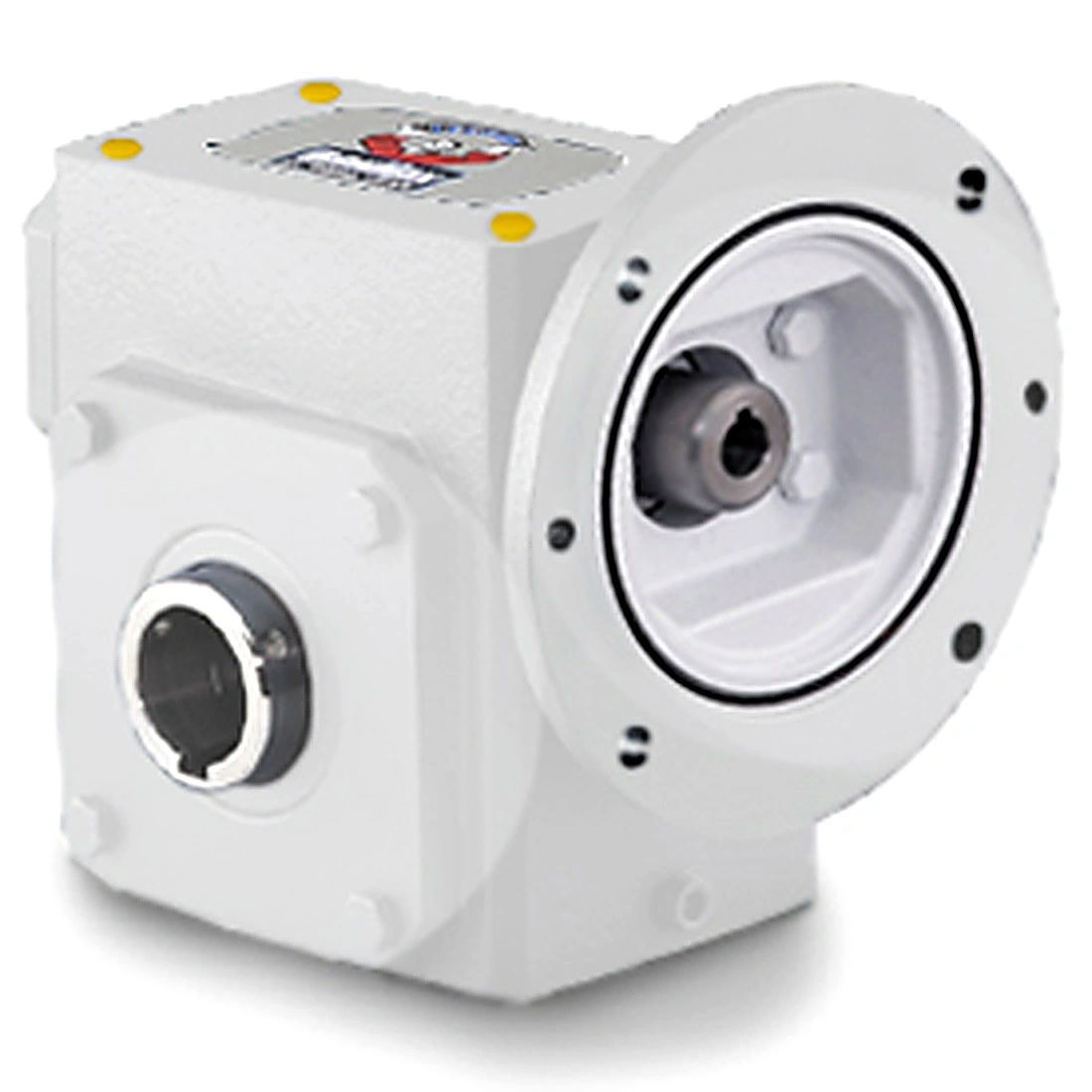

GROVE GEAR GR8153505.10 GR-WHMQ815-20-H1-56-10 Epoxy WashGuard Right Angle Gear Reducer, 20 to 1 Ratio, 5/8 Inch Hollow Bore, 56C NEMA Input, 87 RPM Output
Get it by Tuesday, Aug 18
€1,090.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | Epoxy Washdown |
| Hollow Bore Dimensions | 5/8" |
| Max. Input Hp @ 1750 | 3/4 hp |
| Mount Footprint | 2.75 x 4.19 |
| Mount Style | WHMQ |
| Nema Input Mounting | 56C |
| Output Config | H1 Hollow Bore |
| Output Speed @ 1750 Rpm Input | 87 |
| Reduction Ratio | 20 |
| Series | GR |
| Series Size | 815 |
| Shaft Center Distance | 1.54 |
| Shaft Center Height | 1.91 |
| Torque (lb-in)@1750rpm | 518 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 15.24 |
Product Variants
| Model | Output Torque | Output Speed | Output Hp | Output Dia. | Max. Input Hp | Input Dia. | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8150196.00 | 519 | 116.7 RPM | 0.826 hp | 3/4" | 1 3/1000 hp | 5/8" | Right | Blue | €1,040.13 | |
| GR8150188.00 | 432 | 43.75 RPM | 0.361 hp | 3/4" | 14/25 hp | 5/8" | Left | Blue | €866.02 | |
| GR8150193.00 | 271 | 350 RPM | 1.794 hp | 3/4" | 1.939 hp | 5/8" | Right | Blue | €950.09 | |
| GR8150504.10 | 446 lbs.-in. | 116 RPM | 0.826 hp | 5/8" | 1.003 hp | 5/8" | Hollow | Blue | €1,229.64 | |
| GR8153828.00 | - | - | - | - | - | - | Left/Right | - | €1,125.42 | |
| GR8152022.00 | - | - | - | - | - | - | Right | Blue | €1,476.03 | RFQ
|
| GR8155558.00 | 518 lbs.-in. | 87.5 RPM | 0.719 hp | - | - | - | Left | Blue | €541.69 | RFQ
|
